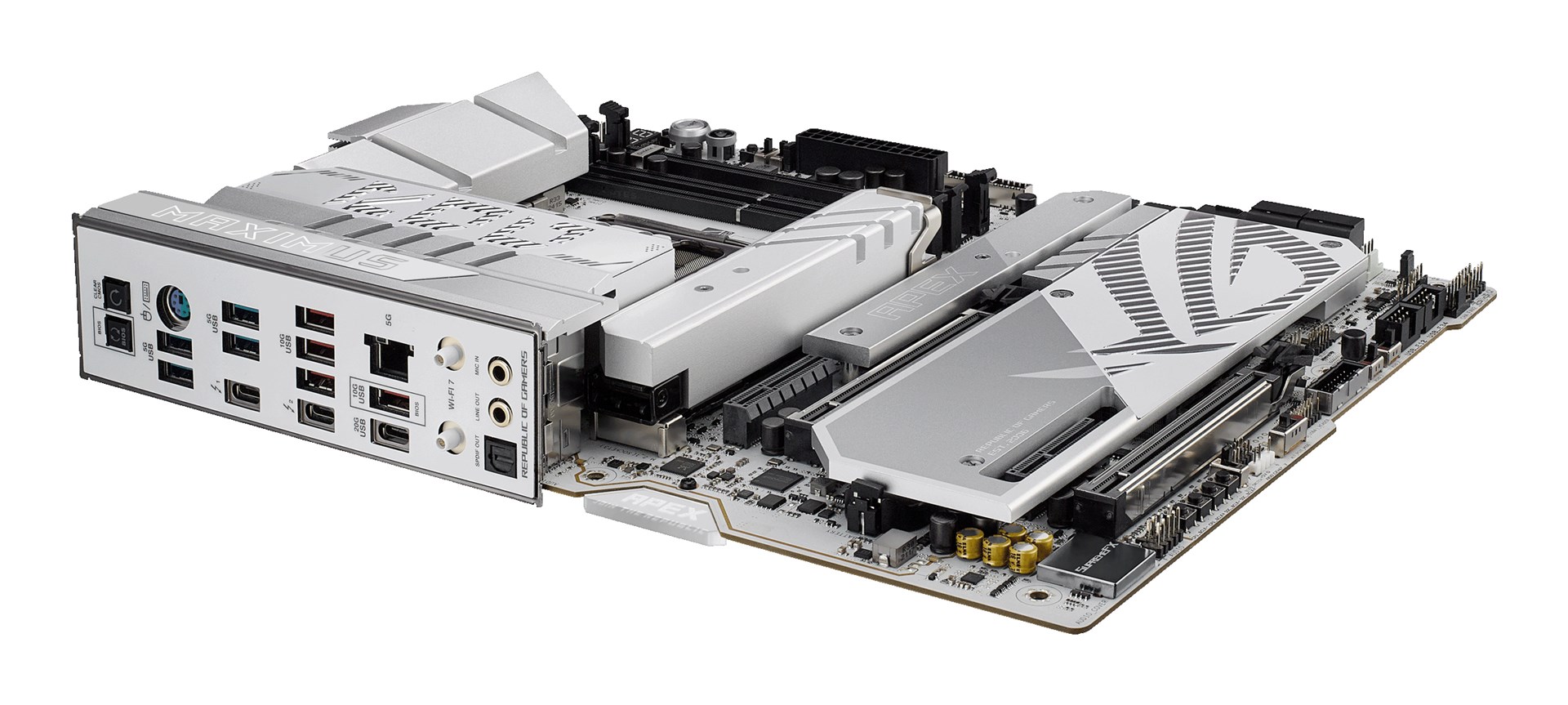

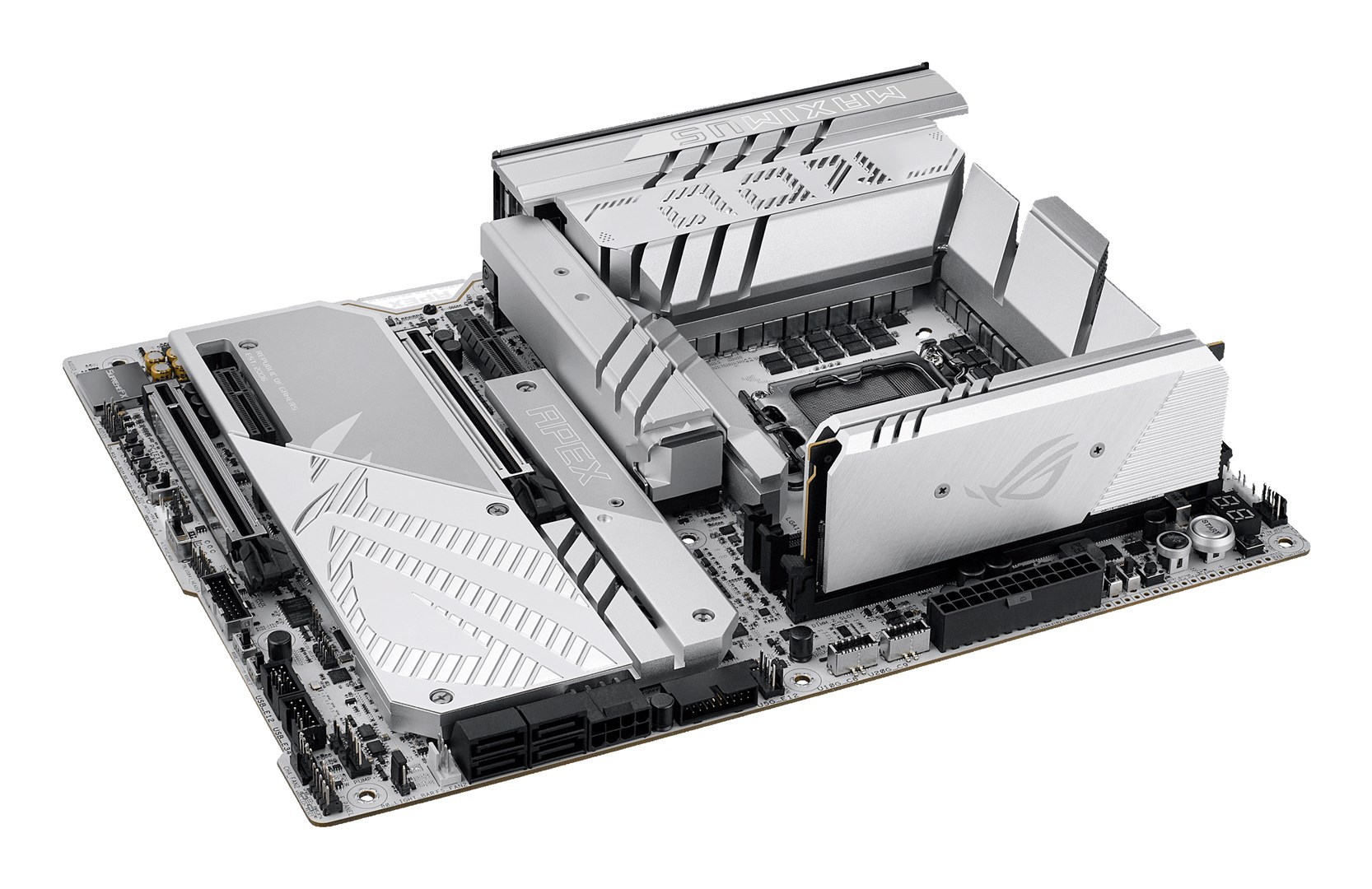

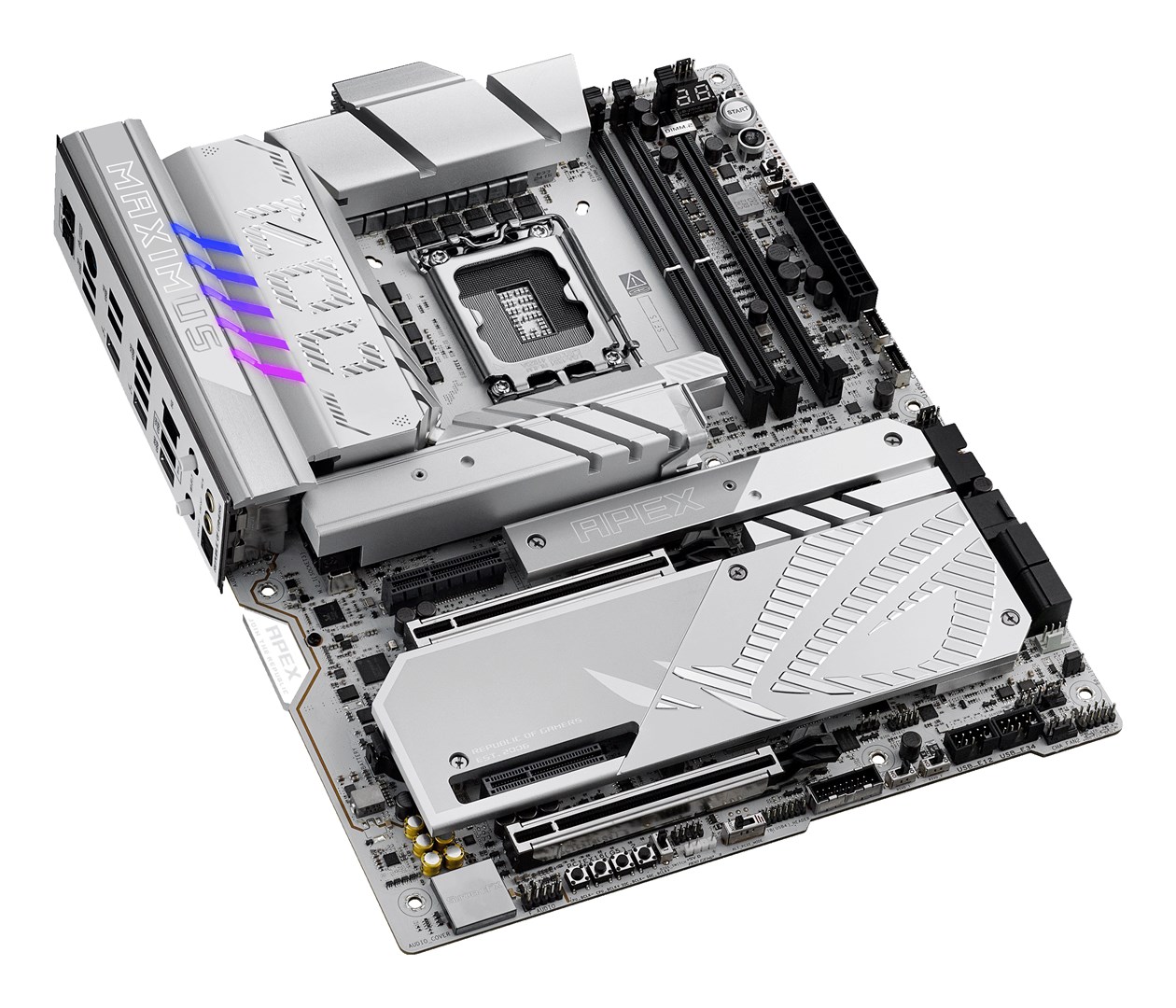

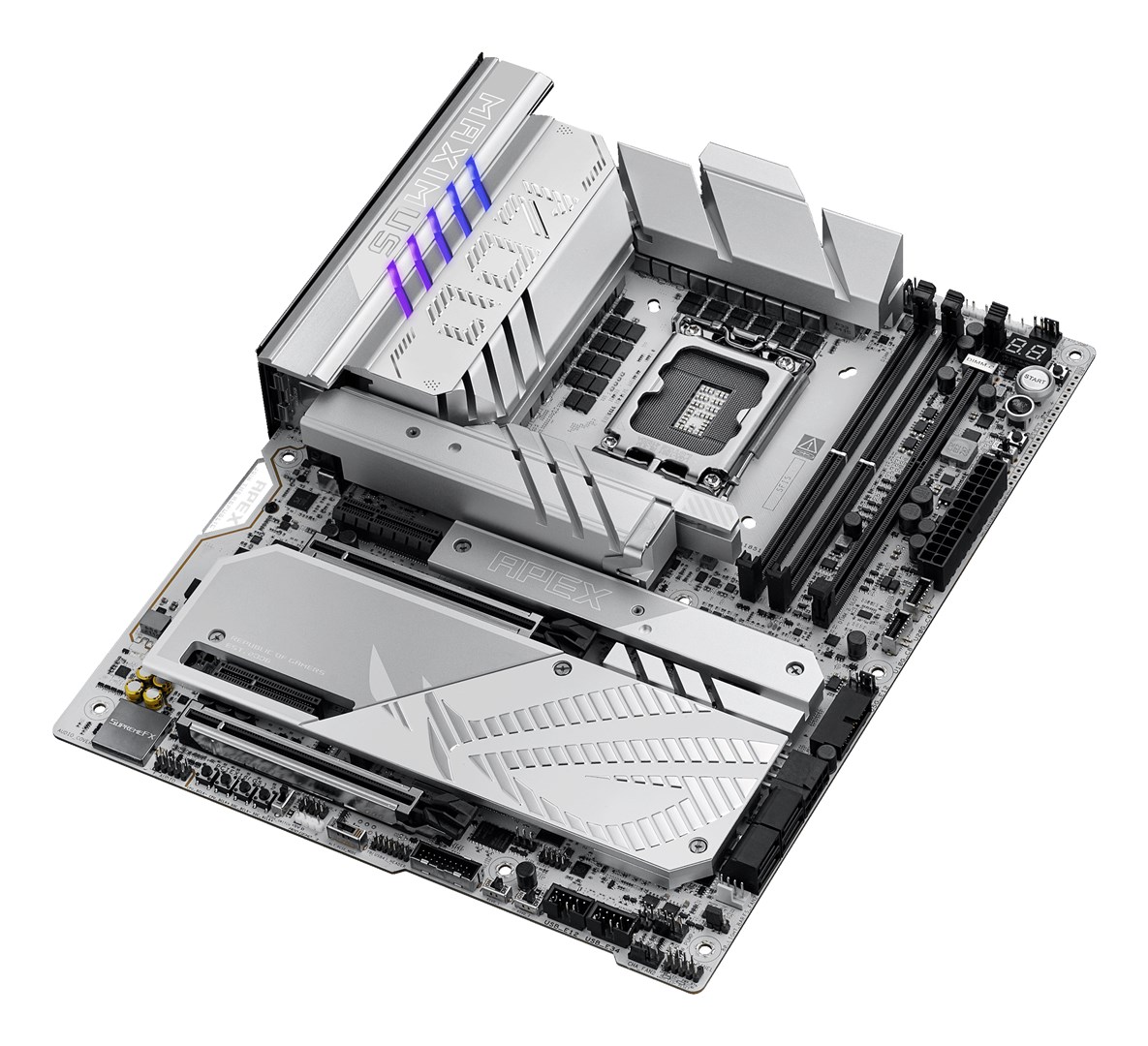

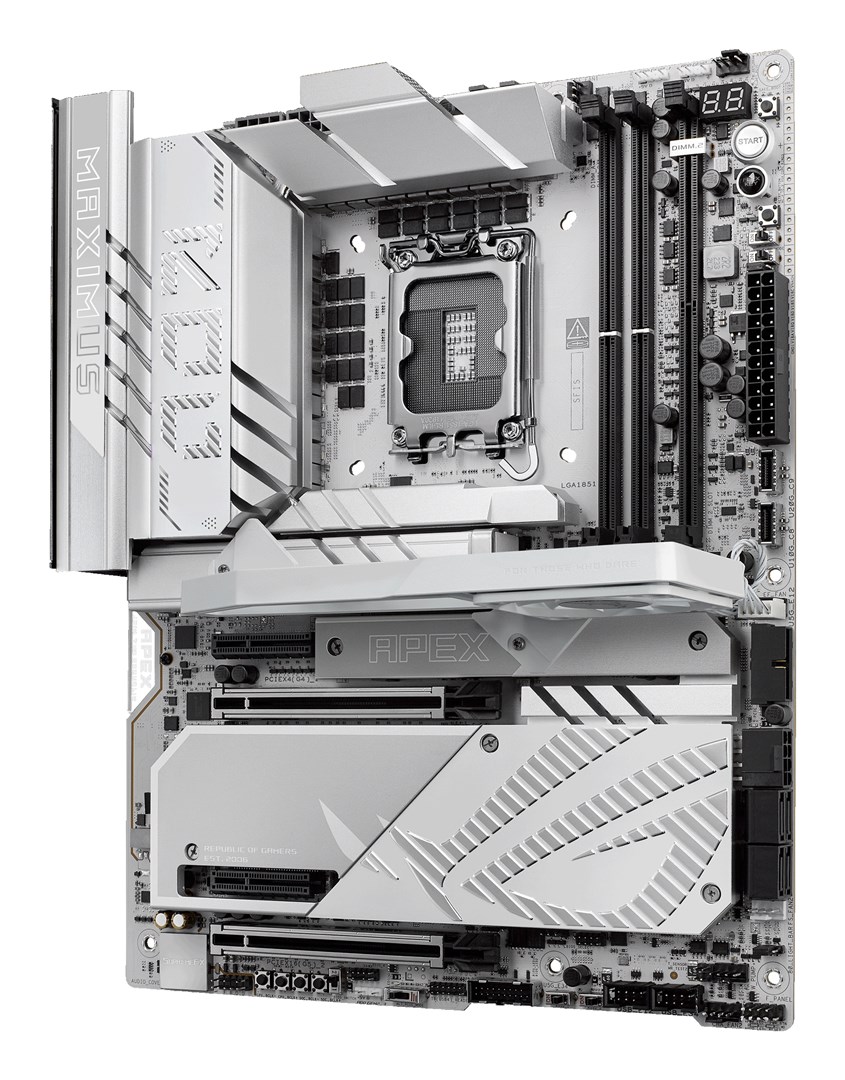

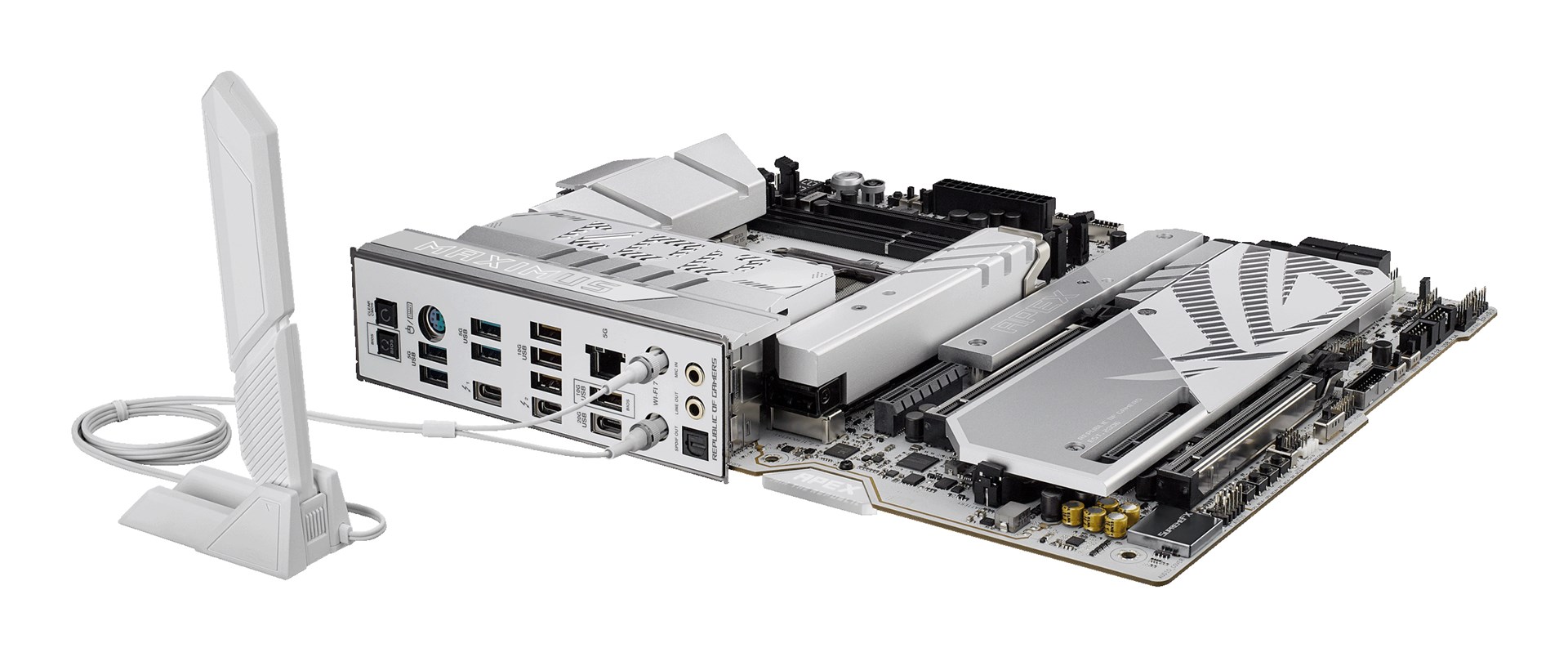

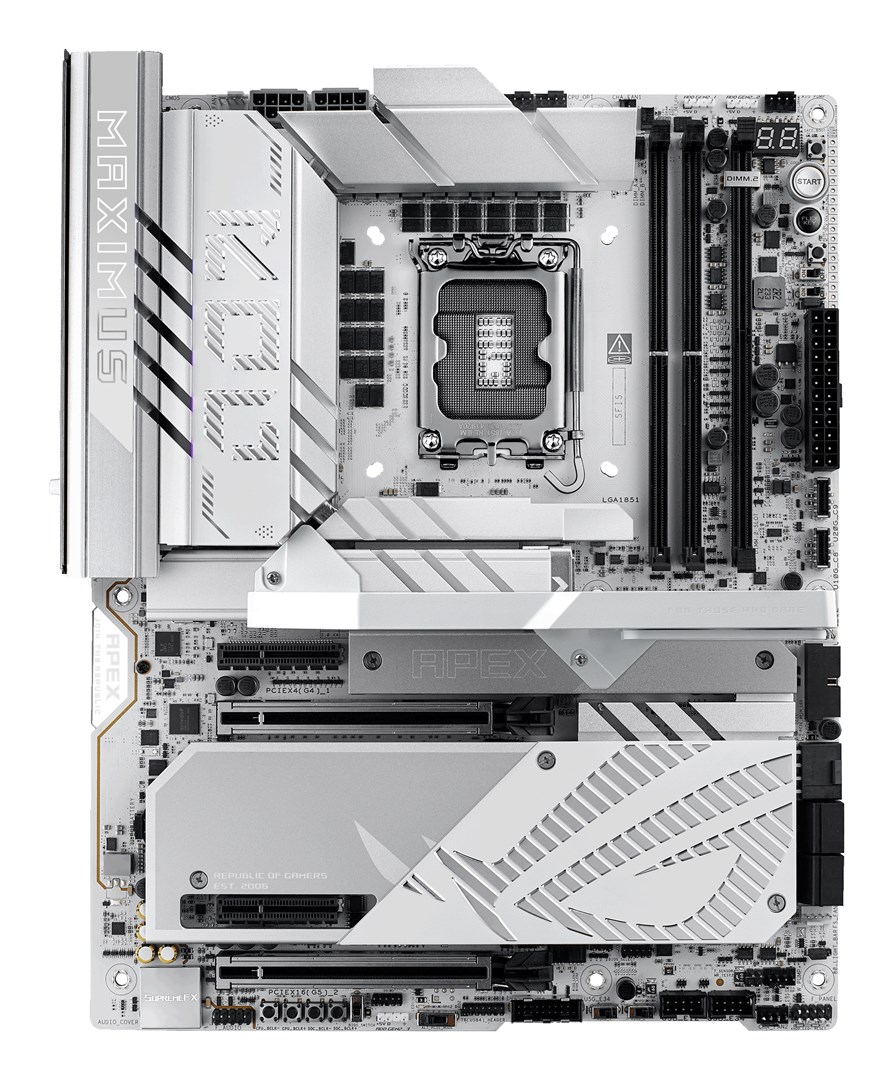

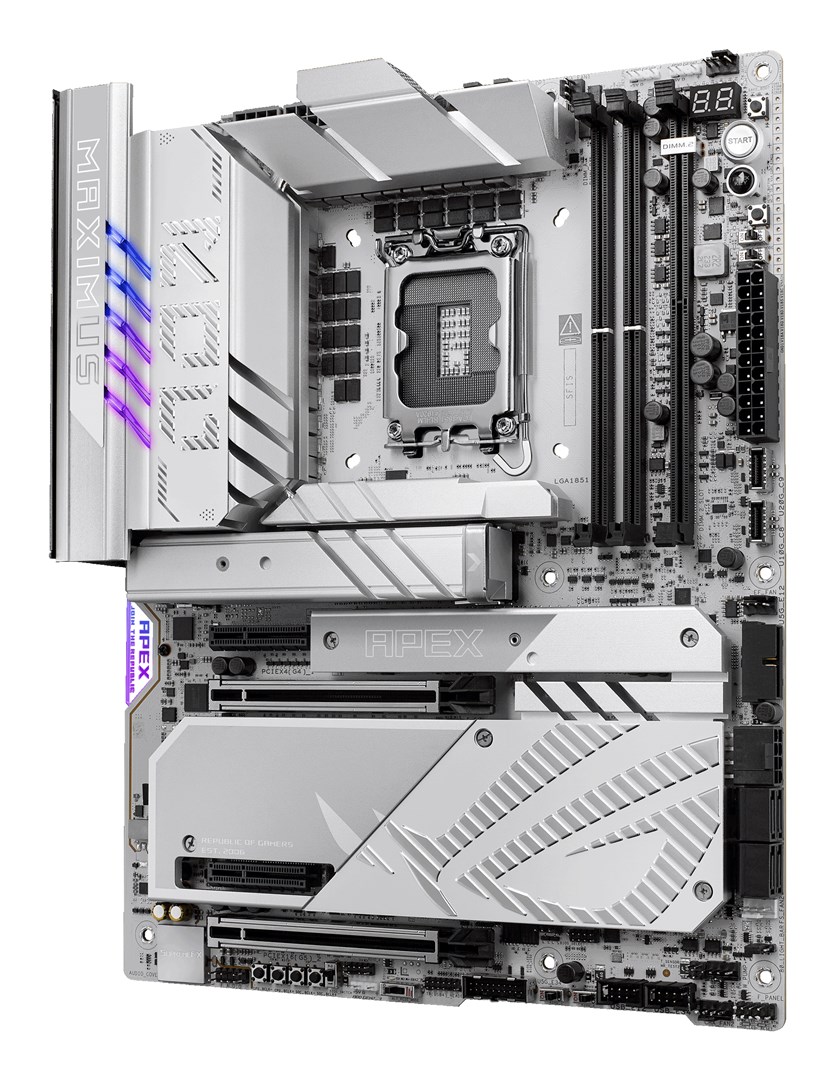

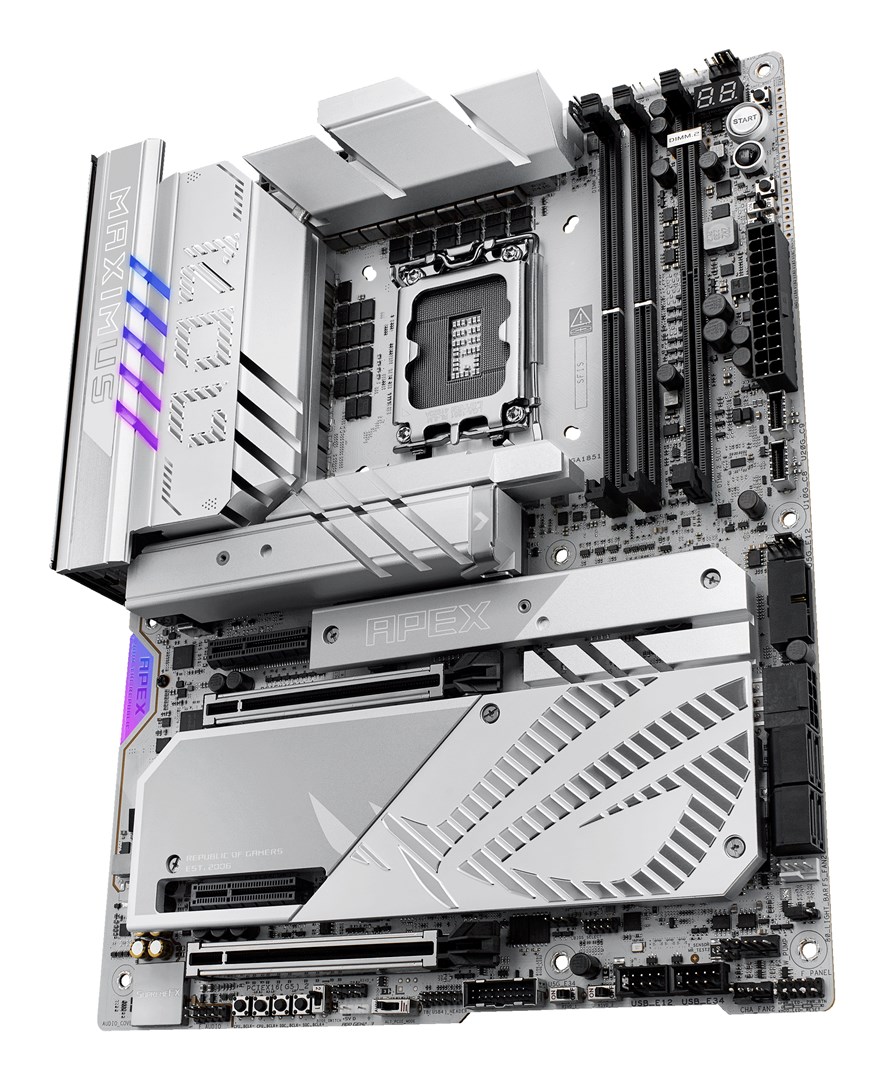

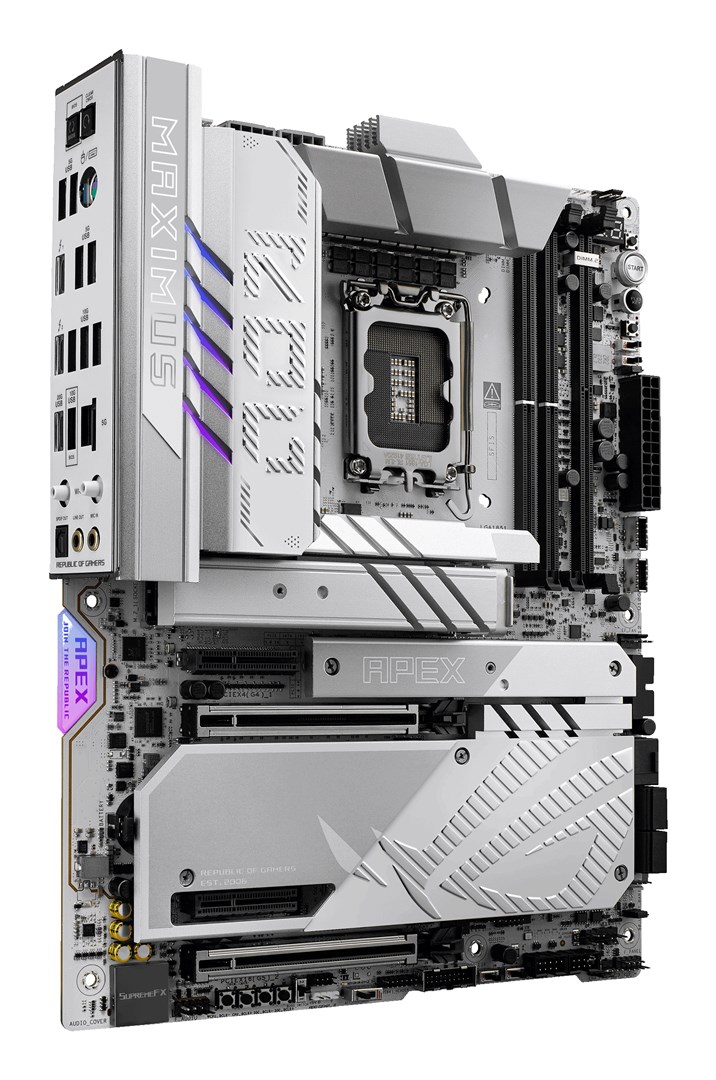

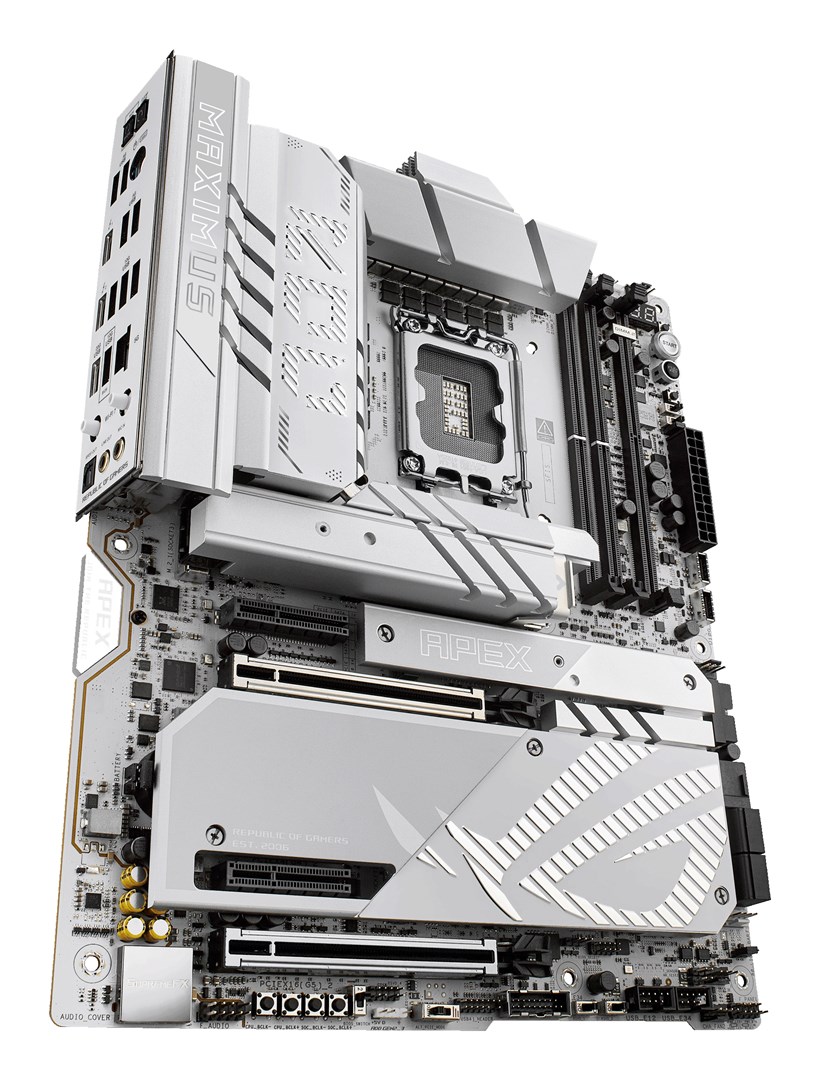

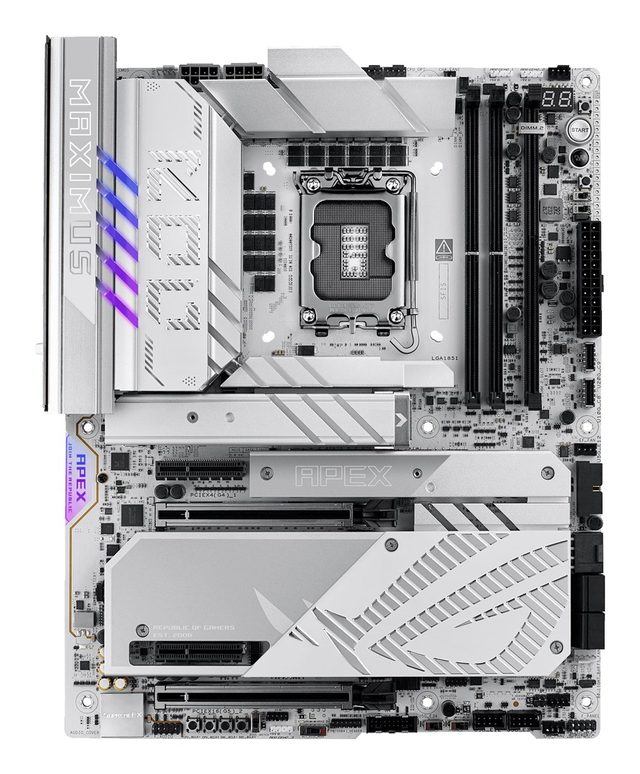

ASUS ROG MAXIMUS Z890 APEX Intel Z890 LGA 1851 (Socket V1) ATX

ROG Maximus Z890 APEX
The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.

29 IN STOCK

SKU: 90MB1IP0-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €871.10

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Maximum internal memory
96 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 1, 5, 10

Graphics

Parallel processing technology support
Not supported
On-board graphics card
No

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes

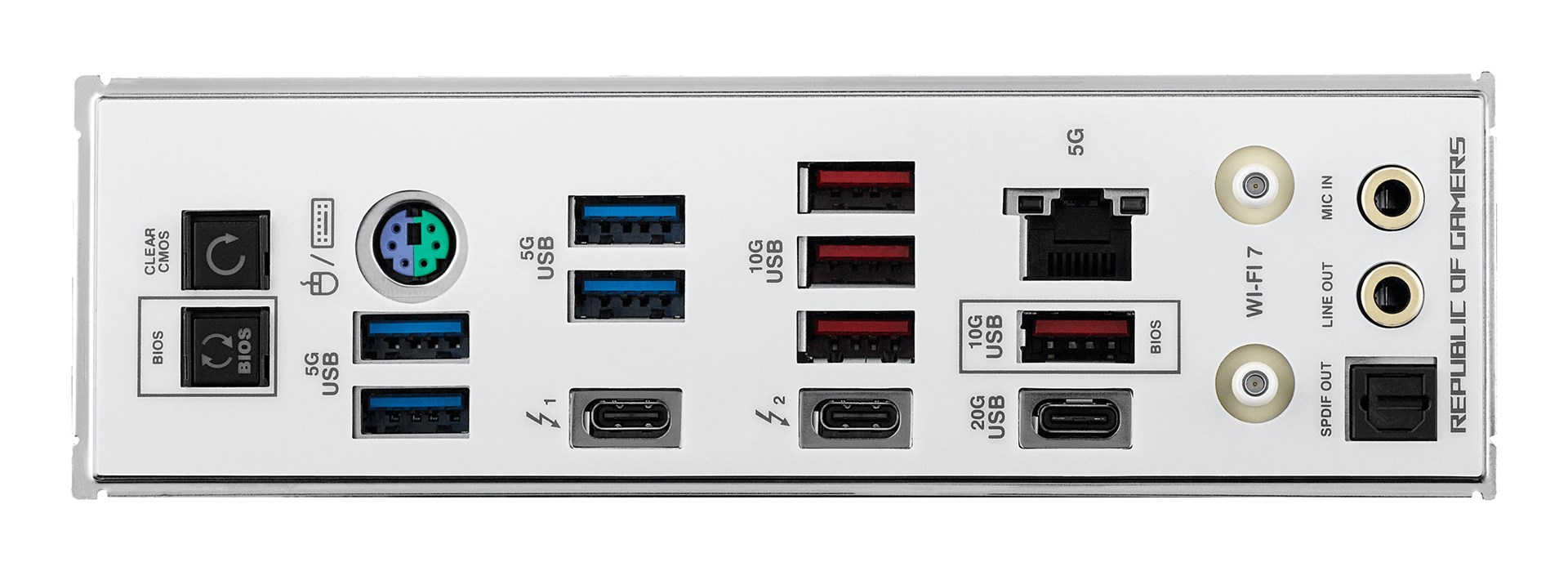

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
2
WiFi-AP antenna jack
1

Network

Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

Features

Motherboard chipset
Intel Z890
Audio chip
Realtek ALC4080
Audio output channels
7.1 channels
Product colour
Aluminium
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
6

BIOS

BIOS type
UEFI AMI
BIOS memory size
512 Mbit
Clear CMOS button
Yes

Packaging data

Package width
370 mm
Package depth
312 mm
Package height
108 mm
Package weight
3.7 kg

Weight & dimensions

Width
305 mm
Depth
244 mm

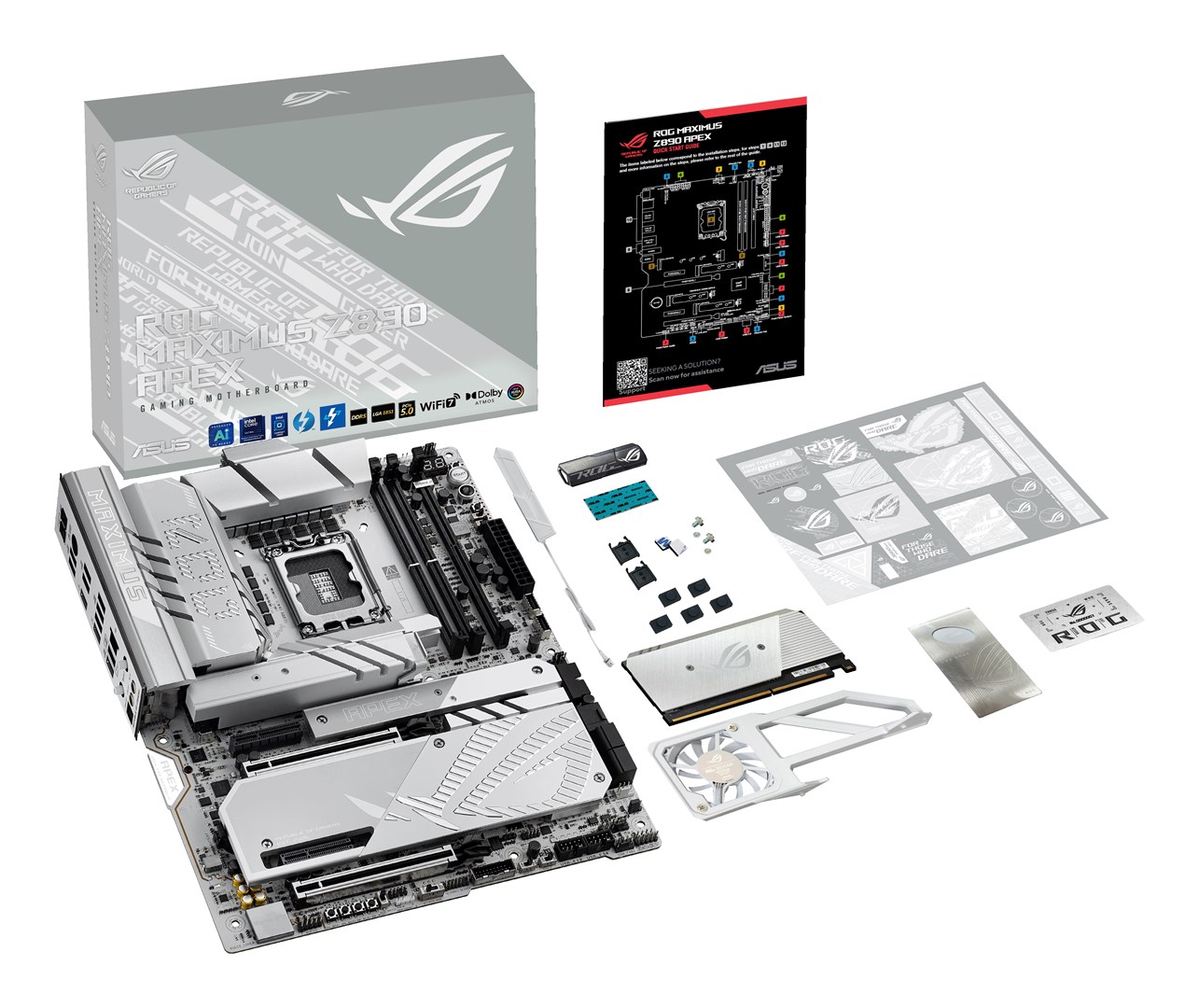

Packaging content

Screws included
Yes
Drivers included
Yes
