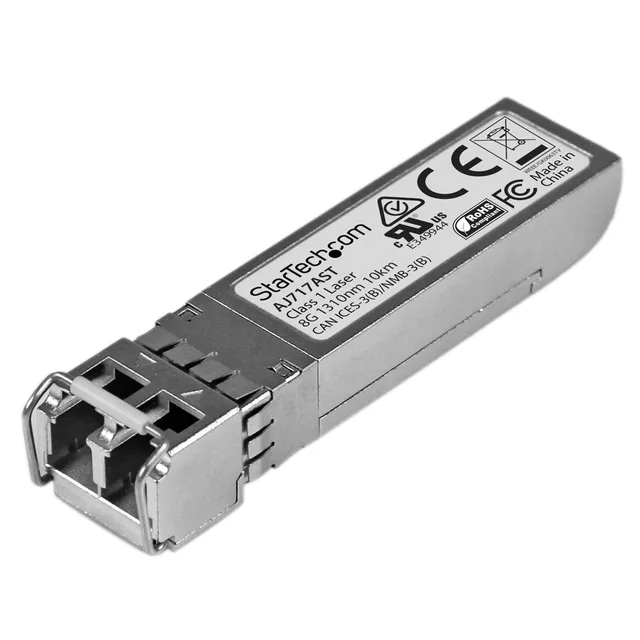

StarTech.com HP AJ717A Compatible SFP+ Transceiver Module - 8GFC~HPE AJ717A Compatible SFP+ Module - 8G Fiber Channel WW - 8GbE Single Mode Fiber Optic Transceiver - 8GE Gigiabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE SN6000, SN6500, SN8600B

StarTech.com HP AJ717A Compatible SFP+ Transceiver Module - 8GFC~HPE AJ717A Compatible SFP+ Module - 8G Fiber Channel WW - 8GbE Single Mode Fiber Optic Transceiver - 8GE Gigiabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE SN6000, SN6500, SN8600B

Name: StarTech.com HP AJ717A Compatible SFP+ Transceiver Module - 8GFC~HPE AJ717A Compatible SFP+ Module - 8G Fiber Channel WW - 8GbE Single Mode Fiber Opti...
Brand: StarTech.com
SKU: AJ717AST
Price: 416.35 EUR
Availability: OutOfStock

8 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The AJ717AST is an HPE AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 8 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.5 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: AJ717AST

Manufacturer: StarTech.com

RRP Price €416.35

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

8000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

Maximum transfer distance

10000 m

Wavelength

1310 nm

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Housing material

Aluminium

Hot-swap

Yes

Mean time between failures (MTBF)

2104865 h

Power

Power consumption (typical)

1.5 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

13.9 mm

Depth

58.4 mm

Height

12.6 mm

Weight

21 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

118 mm

Package depth

92 mm

Package height

33 mm

Package weight

49 g

Logistics data

Master (outer) case width

354 mm

Master (outer) case length

410 mm

Harmonized System (HS) code

85369010

Master (outer) case height

350 mm

Products per master (outer) case

100 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.021 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
