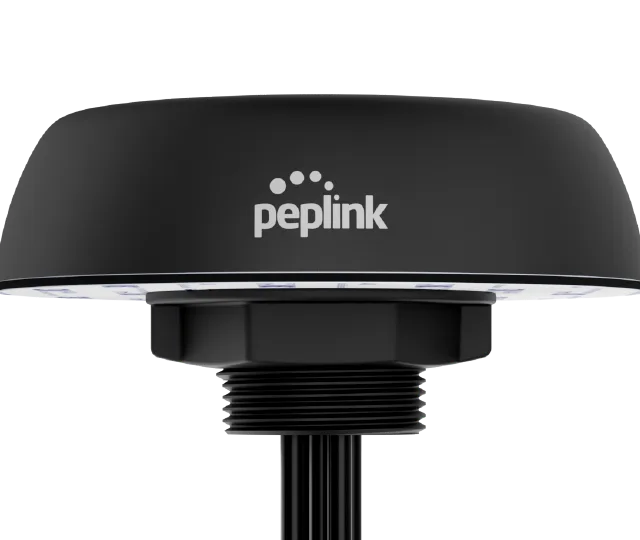

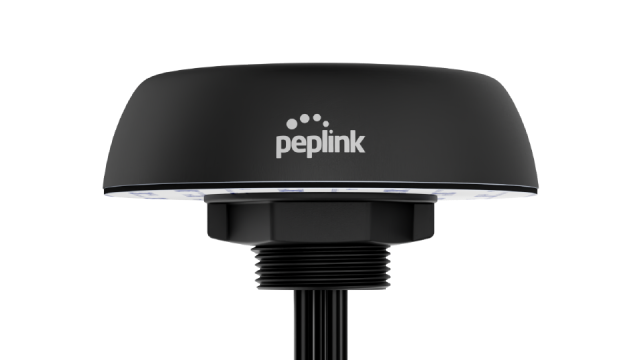

Peplink Mobility 40G network antenna MIMO directional antenna SMA 7 dBi

With 4 cellular channels, the Mobility 40G is a powerhouse capable of delivering high bandwidth and solid reliability under heavy use. Equipped with high gain LNA, the GPS receiver has improved location tracking.The Peplink Mobility 40G is a 5G ready multi-band antenna built for land-based mobile applications. It supports 4x4 MIMO for high bandwidth and solid reliability. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking. The Mobility 40G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options, available in SMA, QMA or N-type.

10 IN STOCK

RRP Price €249.69

Specifications

Performance

Frequency band
0.617 - 6 GHz
Impedance
50 Ω
Antenna gain level (max)
7 dBi
LNA gain
28 dB
GPS frequency
1561 - 1602 MHz
Noise figure
1.5 dB

Features

Antenna type
MIMO directional antenna
Antenna connector type
SMA
Connector gender
Male
Polarization
Linear polarization
Product colour
White
International Protection (IP) code
IP68
Ultraviolet (UV) resistant
Yes
Survival wind speed
220 km/h
Power handling
10 W
Cable length
2 m
Cable type
CFD-200
Mounting
Wall/Pole

Power

Power consumption
8.5 mA
Input voltage
3.3 V

Certificates

Compliance certificates
REACH, RoHS

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C

Weight & dimensions

Width
130 mm
Depth
130 mm
Height
36 mm
Diameter
13 cm

Packaging data

Package width
226 mm
Package depth
215 mm
Package height
109 mm

Mobile network

4G standard
LTE
5G bands supported
600,700,800,850,900,1400,1500,1600,1700,1800,1900,2000,2100,2300,2400,2500,2600,2800,3500,5200 MHz
4G bands supported
700,800,900,1700,1800,1900,2000,2100,2500 MHz

Packaging content

Mounting kit
Yes
Mounting brackets included
Yes

Accessories
