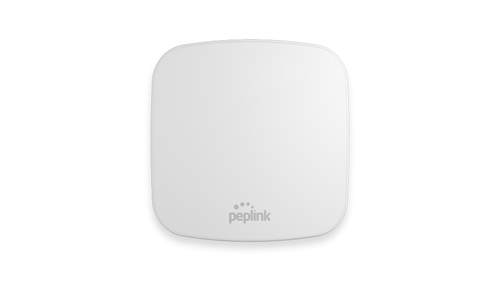

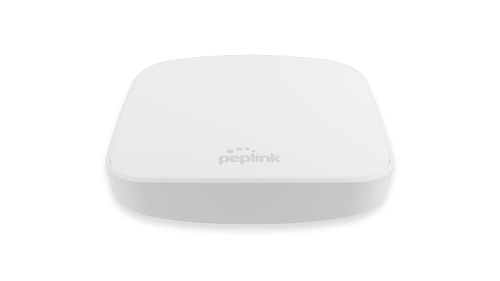

Peplink AP One Mini 866 Mbit/s White Power over Ethernet (PoE)

AP One Mini is an 802.11ac Wave 2 access point that delivers one of the fastest 11ac yet, and comes with multi-user MIMO (MU-MIMO). Upgrade your network to 11ac wave 2 Wi-Fi. Our access points are compatible with the latest iPhone as well as other smartphones.

MU – MIMO
MU-MIMO offers significantly increased efficiency to your network. Now multiple client devices can receive data simultaneously through AP One Mini MU-MIMO and beamforming antenna technology, which concentrates and steers radio signals towards specific client devices.

Small Form Factor
Get big performance and durability from this 11ac access point. The plenum-rated, flame-resistant AC mini measures only 3.9″ x 3.9″ x 0.8″, so it fits just about anywhere.

Boost your Network
Upgrade your network to 11ac wave 2 Wi-Fi. Increase your wireless speeds with AP One Mini

Built-in PoE
Ease your mind with 802.3af PoE input – say farewell to power cables.

User Access Control
Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

Social Wi-Fi Hotspot
Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports.

Centralized Management
Configure AP One access points onsite or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.

Complete Network Solution
Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.

130 IN STOCK

SKU: APO-AC-MINI

Manufacturer: Peplink Peplink

RRP Price €216.64

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
866 Mbit/s
VLAN support
Yes
Maximum outdoor range
122 m
Maximum Tx power (2.4 GHz)
22 dBmW
Maximum Tx power (5 GHz)
23 dBmW

Security

Security algorithms
WPA, WPA2, WPA3
Service Set Identifier (SSID) features
SSID broadcast
Number of SSID supported
16

Protocols

DHCP client
Yes

Management features

Web-based management
Yes

Ports & interfaces

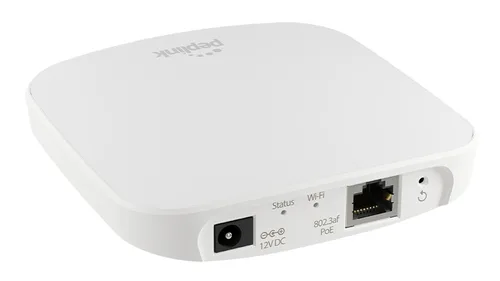

Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes

Power

Power over Ethernet (PoE)
Yes
DC voltage range
12 V
Input current
2 A
Output voltage
100 - 240 V
Power consumption (max)
9.5 W

Design

Placement
Shelf, Wall
Product colour
White

Antenna

Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
3 dBi

Weight & dimensions

Width
98 mm
Depth
98 mm
Height
19.7 mm
Weight
150 g

Packaging content

Quantity per pack
1 pc(s)

Operational conditions

Operating relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
-5 - 45 °C

Accessories

License
