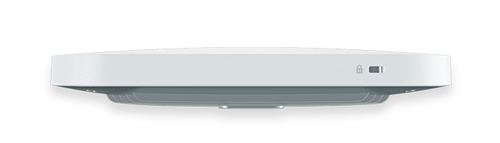

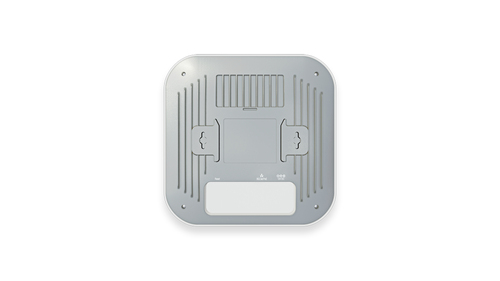

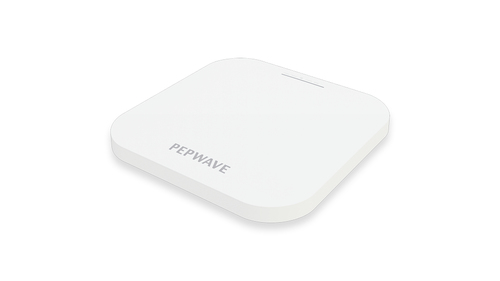

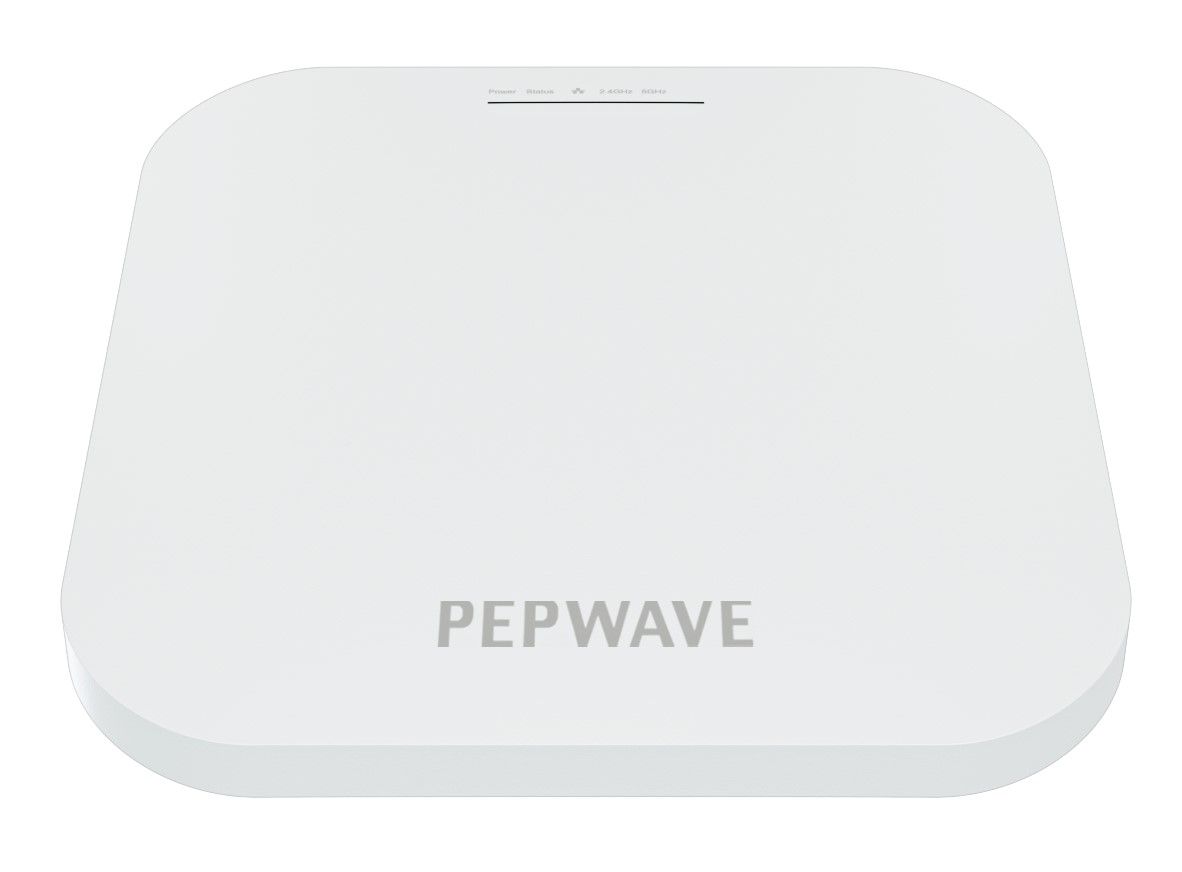

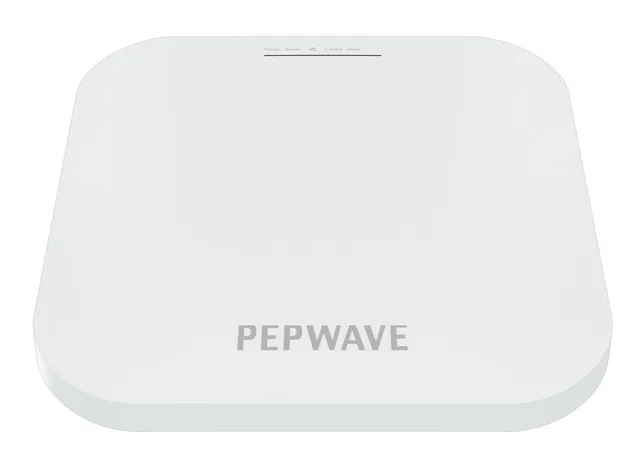

Peplink AP One AX 2400 Mbit/s White Power over Ethernet (PoE)

Better Coverage and Speed with Wi-Fi 6
Deploy Anywhere, Manage Centrally, Turnkey or Custom Captive Portals, Enterprise-Grade Fast Roaming, Seamless Peplink SD-WAN Integration.

Manage Centrally, No Extra Hardware Needed
Each AP One AX comes equipped with InControl central management. View the health and data usage of your network from any web browser. Centrally manage your network’s SSID and radio settings from a single pane of glass. Use the searchable event log to quickly diagnose your entire network.

Turnkey or Custom Captive Portals
Customize your captive portal as little or as much as you would like. Right out of the box, it includes a captive portal ready for immediate use.

For a more branded user experience, you can edit every aspect of the captive portal using InControl.

Seamless Peplink SD-WAN Integration
The AP One AX works seamlessly with other services in the Peplink ecosystem, providing unique network capabilities, unmatched network flexibility and ease of use

Simply Better Wi-Fi
Wi-Fi 6: Faster, Better
This technology is 45% faster than Wi-Fi 5, has 4x more device capacity, and consumes less power for connected devices.

Enterprise-Grade Fast Roaming
This device supports 802.11k, v, and r, providing users with a more seamless roaming experience between access points.

114 IN STOCK

SKU: APO-AX

Manufacturer: Peplink Peplink

RRP Price €471.86

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
2400 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Networking standards
IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channel bandwidth
80 MHz
MIMO
Yes
MIMO type
Multi User MIMO
Maximum Tx power (2.4 GHz)
25 dBmW
Maximum Tx power (5 GHz)
25 dBmW

Security

Security algorithms
SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
MAC address filtering
Yes
Number of SSID supported
16
IGMP snooping
Yes

Protocols

DHCP client
Yes

Management features

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes

Power

Power over Ethernet (PoE)
Yes
AC input frequency
50/60 Hz
DC voltage range
12 V
Input current
2.5 A
Power consumption (max)
23 W

Design

Product colour
White
Housing material
Plastic

Antenna

Antenna type
Internal
Antenna direction type
Omni-directional
Antennas quantity
1
Antenna gain level (max)
5 dBi

Certificates

Certification
FCC, CE, RoHS

Weight & dimensions

Width
205 mm
Depth
205 mm
Height
32 mm
Weight
785 g

Packaging content

Quantity per pack
1 pc(s)
Mounting kit
Yes

Operational conditions

Operating relative humidity (H-H)
0 - 40%

Accessories

License
