Tripp Lite B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD

Tripp Lite B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD

Name: Tripp Lite B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD
Brand: Eaton
SKU: B020-U16-19-IP
Price: 2634.59 EUR
Availability: OutOfStock

Complete Control from Anywhere
Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent
Remotely access computers via LAN, WAN or the Internet via Windows or Java
Panel Array Mode allows remote monitoring of multiple ports at the same time
Windows- and Java-based applications provide access without a browser
Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console

Built-In Security to Keep Your Data Safe
3 levels of security (Admin, User and Select) allow you to delegate proper access
Create up to 64 separate user accounts
Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
Supports RADIUS and LDAP/S remote authentication
LEDs indicate when a computer is connected, powered on and selected
Included firmware upgrade cable keeps the software up to date

Versatile to Meet Your Specific Needs
Increase the number of connected computers up to 264 by daisy-chaining up to 31 B020-U08 KVM switches.
Compatible with all major operating systems
User-friendly web management interface can be displayed in English, Spanish, French, German or Italian
Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice
Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol
External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers

Keep Your Colleagues in the Loop
Windows-based log server records events and saves them to a searchable database
Users who are logged in simultaneously can communicate via message board and manage port access

Rack-Mounted Convenience

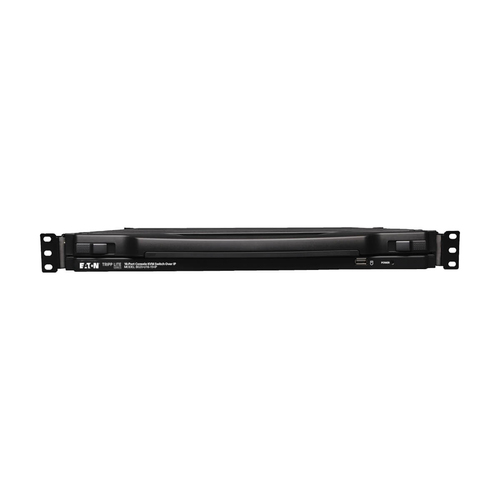

LCD folds down so the unit mounts into just 1U of rack space
Mounts in racks from 26 in. to 38 in. deep
Rugged steel housing and premium connectors built to last
Console locks into place when not in use to prevent sliding out of the rack

ON ORDER

SKU: B020-U16-19-IP

Manufacturer: Eaton Eaton

RRP Price €2,634.59

Specifications

Display

Display diagonal

48.3 cm (19")

Display resolution

1280 x 1024 pixels

On Screen Display (OSD)

Yes

Technical details

Product colour

Black

Built-in KVM switch

Yes

KVM switch ports quantity

Security algorithms

3DES, 128-bit RC4, 128-bit SSL, 256-bit AES, RSA

LED indicators

Yes

Compliance certificates

RoHS

Rack capacity

Country of origin

Taiwan

Ports & interfaces

Interface

PS/2; USB; VGA

Keyboard

Hot keys

Yes

Power

AC adapter input voltage

100 - 250 V

AC adapter frequency

50/60 Hz

Input current

1 A

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

480.1 mm

Height

43.9 mm

Depth

689.1 mm

Weight

13.7 kg

Packaging data

Package weight

18.6 kg

Package width

665 mm

Package depth

830.1 mm

Package height

130 mm

Packaging content

Cables included

PS/2, Phone (RJ-11), USB

Rack mount kit

Yes

Resource CD

Yes

Logistics data

Master (outer) case width

665 mm

Master (outer) case length

830.1 mm

Master (outer) case height

130 mm

Master (outer) case gross weight

18.6 kg

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

13.66 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
