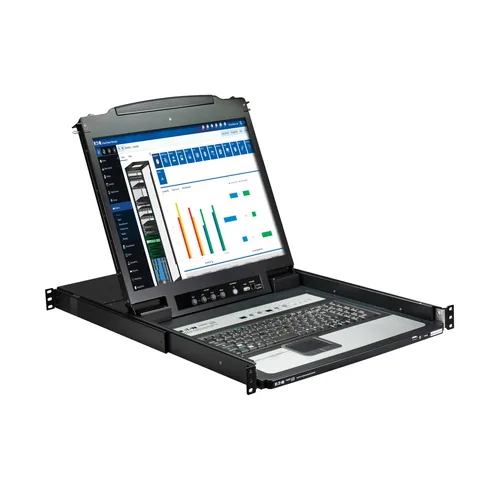

Eaton B020-U16-19-K NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables

Connect 16 Computers or Servers to a Single Monitor, Mouse and German Keyboard
This NetDirector® rack-mount KVM switch lets you access, control, boot and reboot up to 16 computers or servers at the same time. All 16 devices share one built-in 19-inch LCD, touchpad, mouse and 105-key German keyboard, allowing you to control the devices from the next room, next door or another continent.

Connect up to 264 Computers to One Original Console
You can also cascade up to 31 B020-U16-19-KG KVM switches, allowing centralized access to as many as 264 computers using a single monitor, German keyboard and mouse.

Switching Between Computers Is Fast and Easy

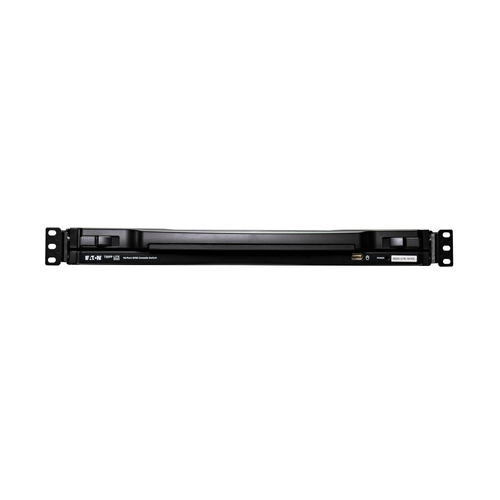

Use the front-panel push buttons, hotkey commands or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. You can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Adding and removing computers can be done without powering down the hot-pluggable KVM switch.

Cables Are Included for Fast and Simple Setup

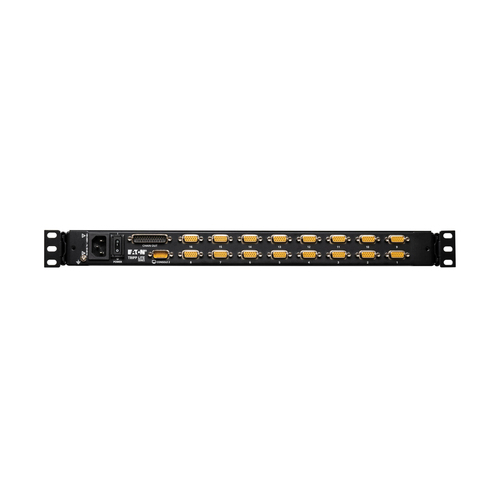

The B020-U16-19-KG supports both PS/2 and USB connections using a P778-Series combo cable kit. Eight kits come included with the B020-U16-19-KG. Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows and Linux operating systems. The firmware is upgradable using the included cable to ensure software remains up to date.

USB Ports Let You Share Peripherals between Computers
The built-in USB ports allow you to share USB-A peripherals, such as a flash drive or card reader, among all connected computers.

Transmits High-Definition Video
The B020-U16-19-KG supports video resolutions up to 1280 x 1024 (at 75 Hz) at the built-in 19-inch monitor and 2048 x 1536 (at 60 Hz) at an external display. DDC emulation allows video settings of each connected computer to be automatically adjusted for optimal output to the LCD.

Multi-Level Password Security Keeps Your Data Safe
The B020-U16-19-KG enhances security by limiting access to an administrator and up to four local users. Two levels of password protection (Admin and User) help prevent unauthorized persons from gaining access to connected servers.

Designed for Convenient Mounting with Included Hardware

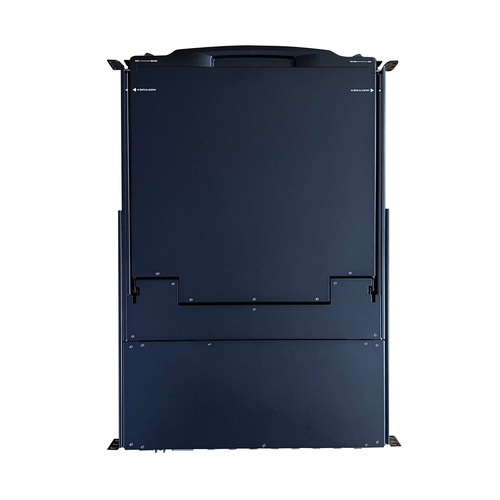

The heavy-duty steel housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack from 26 to 38 inches deep. The LCD folds down when not in use, and the console locks into place to prevent sliding out of the rack. The detachable six-foot C13-to-C14 power cord connects the KVM switch to an AC power source.

ON ORDER

SKU: B020-U16-19-KG

Manufacturer: Eaton Eaton

RRP Price €1,797.00

Specifications

Ports & interfaces

Number of computers controlled
16
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA

Performance

Maximum resolution
1280 x 1024 pixels

Design

Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Cable length
1.83 m
Keyboard language
German
Certification
UL, cUL, CE, FCC, RoHS

Display

Built-in display
Yes
Display
LCD

Power

Power consumption (typical)
29.1 W

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
480.1 mm
Depth
689.1 mm
Height
43.9 mm
Weight
14.1 kg

Packaging data

Package width
830.1 mm
Package depth
665.5 mm
Package height
130 mm
Package weight
19.8 kg

Packaging content

Cables included
PS/2, USB
Quick installation guide
Yes
Manual
Yes

Other features

Ports quantity
16
Weight (imperial)
14.2 kg (31.3 lbs)

Logistics data

Harmonized System (HS) code
8471.80.1000
Master (outer) case width
830.1 mm
Master (outer) case length
665.5 mm
Master (outer) case height
130 mm
Master (outer) case gross weight
19.8 kg
Products per master (outer) case
1 pc(s)
Country of origin
Taiwan
