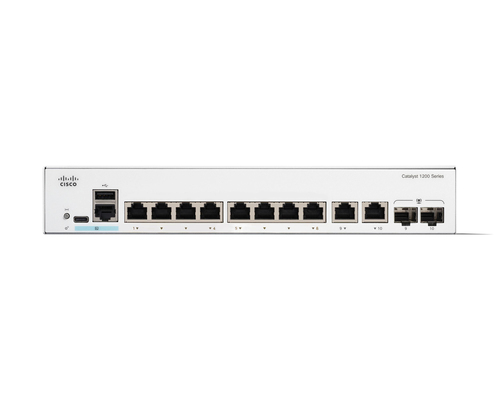

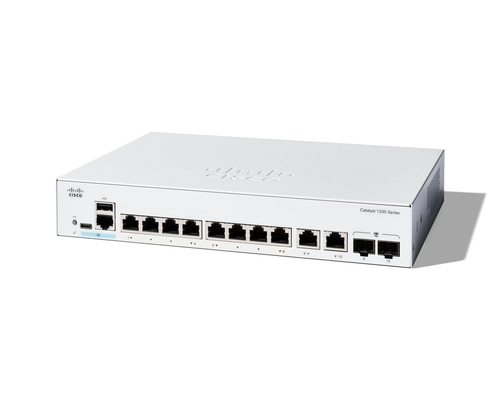

Catalyst 1200 8-port GE, Ext PS, 2x1G Combo

Name: Catalyst 1200 8-port GE, Ext PS, 2x1G Combo
Brand: Cisco
SKU: C1200-8T-E-2G
Price: 195.38 EUR
Availability: InStock

The Cisco Catalyst 1200-8T-E-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

62 IN STOCK

SKU: C1200-8T-E-2G

Manufacturer: Cisco Cisco

RRP Price €195.38

Specifications

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Web-based management

Yes

Configuring Location Settings (CLI)

Yes

MIB support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

Console port

RJ-45/USB Type-C

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az

10G support

Port mirroring

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

VLAN support

Yes

Number of VLANs

255

Data transmission

Switching capacity

20 Gbit/s

Forwarding rate

14.88 Mpps

MAC address table

8000 entries

Number of queues

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

1.5 MB

Security

Access Control List (ACL) rules

512

Security algorithms

802.1x RADIUS

Loop protection

Yes

DoS attack prevention

Yes

Queue scheduling algorithms

Weighted Round Robin (WRR)

Multicast features

Multicast support

Yes

Protocols

GARP VLAN Registration Protocol (GVRP)

Yes

Design

Rack mounting

Yes

Form factor

Product colour

White

Reset button

Yes

LED indicators

Yes

Performance

Built-in processor

Yes

Processor frequency

1.4 MHz

Memory type

DDR4-SDRAM

Internal memory

1000 MB

Flash memory

512 MB

Firmware upgradeable

Yes

Mean time between failures (MTBF)

2171669 h

Power

Power source

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (typical)

10.65 W

Power plug type

Type C

Power over Ethernet (PoE)

Other features

Packaging content

Switch, power cable, USB Type C cable and mounting hardware

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

184.9 mm

Depth

268.2 mm

Height

43.9 mm

Weight

1.39 kg

Packaging data

Package width

299 mm

Package depth

544.8 mm

Package height

103.9 mm

Package weight

2.45 kg

Certificates

Certification

UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Logistics data

Country of origin

China

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

1.39 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Meraki MS150-24P-4G L2 Stck Cld-Mngd 24GE 370W PoE Switch Switches

Future-proof your networks with stackable access switches for Wi-Fi 7 and IoT deploymentsEasily adopt new technology while boosting scalability, security, and resilience across your campus and branches. Cisco Meraki MS150 stackable switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS150 series features a variety of options designed to meet the diverse needs of branch and campus deployments. With 12 different models, the MS150 offers a combination of 1Gig and mGig ports supporting up to 740W of power, SFP+ uplinks, and backplane stacking. This line enables scalability to support the growing wired and wireless infrastructure deployments.

€1,532.73

Catalyst 1200 24-port GE, Full PoE, 4x1G SFP Switches

The Cisco Catalyst 1200-24FP-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

€634.64

Catalyst 1200 24-port GE, PoE, 4x1G SFP Switches

The Cisco Catalyst 1200-24P-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

€423.63

NETGEAR AFT402 network switch component Fan Switches

The NETGEAR Modular Fan Tray (AFT402) is compatible with select Managed Switches such as M4500-32C (CSM4532) and M4500-48XF8C (XSM4556). These M4500 series switches come with their six Modular Fan Trays pre-installed for 4+2 fan redundancy.

€255.44

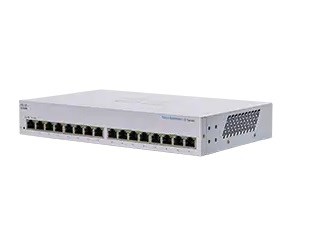

Cisco CBS110 Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Grey Switches
