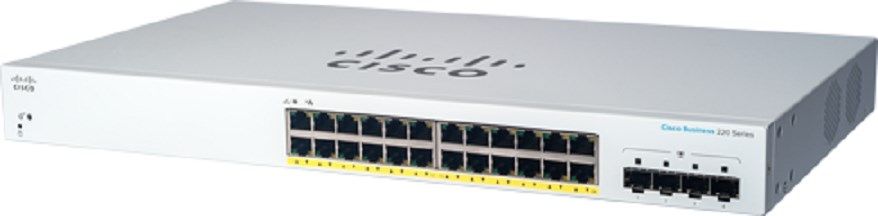

Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Simple, affordable business networking
The Cisco Business 220 Series Smart Switches are simple and affordable smart switches for business-class networks. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Cisco Small Business Support Service
Get software updates, extended access to the Cisco Small Business Support Center, and expedited hardware replacement if you need it. The Cisco Small Business Support Service helps you protect your investment and get added value from Cisco Business products. The service is delivered by Cisco and backed by your Cisco partner.

Small business networking solutions
Operate your network with simple, flexible, and highly secure solutions specifically designed for the small business.

ON ORDER

SKU: CBS220-24P-4G-EU

Manufacturer: Cisco Cisco

RRP Price €464.36

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes
Number of VLANs
256

Data transmission

Switching capacity
56 Gbit/s
Forwarding rate
41.66 Mpps
MAC address table
8192 entries
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
4.1 MB

Security

DHCP features
DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
SSH, SSH-2, SSL/TLS
MAC address filtering
Yes
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication type
IEEE 802.1x, RADIUS
Queue scheduling algorithms
Weighted Round Robin (WRR)

Multicast features

Multicast support
Yes
Multicast MAC address table
8192 entries

Protocols

Management protocols
SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes

Design

Rack mounting
Yes
Form factor
1U
Product colour
White
Reset button
Yes
LED indicators
Yes
Number of fans
1 fan(s)

Performance

Built-in processor
Yes
Internal memory
256 MB
Flash memory
64 MB
Firmware upgradeable
Yes

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
833.59 BTU/h

Weight & dimensions

Width
440 mm
Depth
203 mm
Height
44 mm
Weight
2.75 kg

Logistics data

Harmonized System (HS) code
85176990

Accessories
