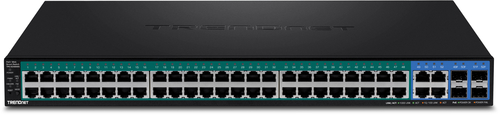

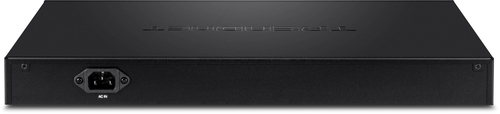

Trendnet TPE-5048WS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Trendnet TPE-5048WS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Name: Trendnet TPE-5048WS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brand: Trendnet
SKU: TPE-5048WS
Price: 855.41 EUR
Availability: OutOfStock

TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch, model TPE-5048WS, delivers advanced management features with a 104Gbps switching capacity. This rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring make this a powerful solution for SMB networks. The TPE-5048WS provides 48 gigabit PoE+ ports with a total power budget of 740W, and four shared gigabit ports (RJ-45 or SFP). The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.
Web Smart Management
Provides an easy-to-use web-based management interface to reduce switch configuration complexity and offers a combination of SMB management features for easy deployment.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
PoE Power
A 740W PoE power budget supplies power to PoE/PoE+ devices.

ON ORDER

SKU: TPE-5048WS

Manufacturer: Trendnet

RRP Price €855.41

Specifications

Management features

Switch type

Managed

Quality of Service (QoS) support

Yes

Web-based management

Yes

MIB support

IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

Power connector

DC-in jack

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Port mirroring

Yes

Full duplex

Yes

Link aggregation

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

VLAN support

Yes

Virtual LAN features

Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN

Data transmission

Switching capacity

104 Gbit/s

Forwarding rate

77.4 Mpps

MAC address table

16000 entries

Jumbo frames support

Yes

Packet buffer memory

12 MB

Security

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

HTTPS, SNMP, SSL/TLS

MAC address filtering

Yes

Multicast features

Multicast support

Yes

Multicast MAC address table

256 entries

Design

Rack mounting

Yes

Form factor

Product colour

Black

Housing material

Linear low-density polyethylene (LLDPE)

LED indicators

Yes

Number of fans

5 fan(s)

Performance

Compatible operating systems

Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server

Noise level

55 dB

Mean time between failures (MTBF)

338.601 h

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

30 W

Power consumption (max)

963 W

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Total Power over Ethernet (PoE) budget

740 W

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

440 mm

Depth

430 mm

Height

44 mm

Weight

6.58 kg

Packaging content

Cables included

Quick start guide

Yes

Rack mount kit

Yes

Packaging data

Resource CD

Yes

Certificates

Certification

CE, FCC

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

6.58 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
