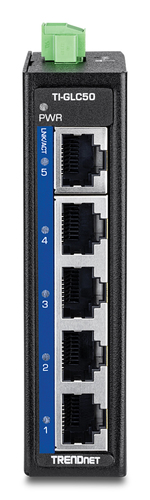

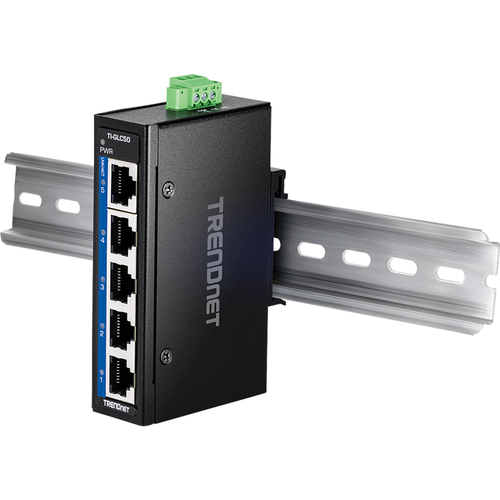

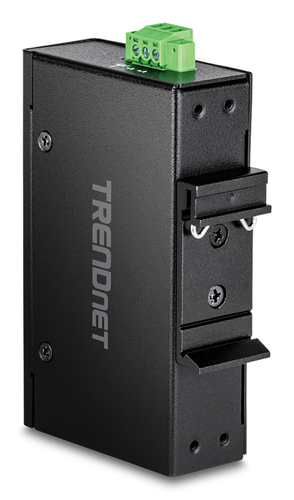

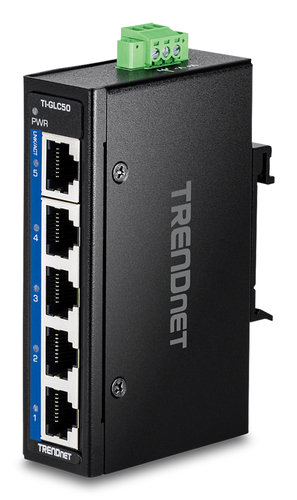

Trendnet TI-GLC50 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

TRENDnet’s 5-Port Industrial Gigabit DIN-Rail Mini Switch, model TI-GLC50, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Gigabit DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features five copper gigabit ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.

ON ORDER

SKU: TI-GLC50

Manufacturer: Trendnet Trendnet

RRP Price €57.56

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Half duplex
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Jumbo frames support
Yes
Jumbo frames
9000

Design

Rack mounting
No
Stackable
No
Product colour
Black
Housing material
Metal
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
556710 h

Power

Power source
DC
DC input voltage
9.6 - 60 V
Power consumption (max)
2.688 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
100.5 mm
Depth
60 mm
Height
25.5 mm
Weight
220 g

Certificates

Certification
CE FCC
