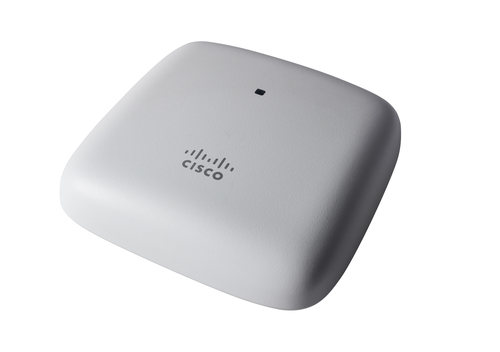

Cisco Business 140AC 802.11ac 2x2 Wave 2 Access Point 1 GbE Port- Ceiling Mount, Limited Lifetime Protection (CBW140AC-E)

The Cisco Business 140AC Access Point delivers powerful multi-user, multiple input, multiple output (MU-MIMO) (2x2) wireless in a compact form factor. Ideal for indoor Wi-Fi coverage, the Cisco Business 140AC delivers a highly secure and reliable wireless connection for small business workplaces.

Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.

ON ORDER

SKU: CBW140AC-E

Manufacturer: Cisco Cisco

RRP Price €119.20

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
867 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz
Networking standards
IEEE 802.3af, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology
10/100/1000Base-T(X)
Number of users
400 user(s)
Channels quantity
29 channels
MIMO
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Dynamic Frequency Selection (DFS)
Yes
Transmitting power
20 dBmW

Security

Security algorithms
WPA, WPA2, WPA3, WPA2-Enterprise
MAC address filtering
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

Power over Ethernet (PoE)
Yes
AC input voltage
100 - 240 V
AC input frequency
50 Hz
Power plug type
Type C

Design

Placement
Ceiling, Wall
Product colour
White
LED indicators
Yes
Market segment
Business

Antenna

Antenna type
Internal
Antenna features
Integrated antenna
Antenna gain level (max)
4 dBi

Performance

Built-in processor
Yes
Processor frequency
710 MHz
Flash memory
256 MB
Internal memory
1000 MB

Technical details

Products per shipping (inner) case
1 pc(s)

Certificates

Certification
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B) FCC Part 15.107 / 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 / -17 (Europe) EN 50385 FCC OET-65C RSS-102

Weight & dimensions

Width
150.8 mm
Depth
150.8 mm
Height
33 mm
Weight
373 g

Packaging data

Package width
239.6 mm
Package depth
220.6 mm
Package height
69.8 mm
Package weight
898 g

Packaging content

Quantity per pack
1 pc(s)
Mounting kit
Yes

Other features

Antenna
2X2:2SS – 80 MHz

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4500 m

Logistics data

Harmonized System (HS) code
85176990
Country of origin
China
Products per master (outer) case
1 pc(s)
