Tripp Lite DDR1732SAL Single-Display Gas Spring-Arm Desktop Clamp or Grommet for 13” to 34” Displays - USB and Audio Ports, Aluminum

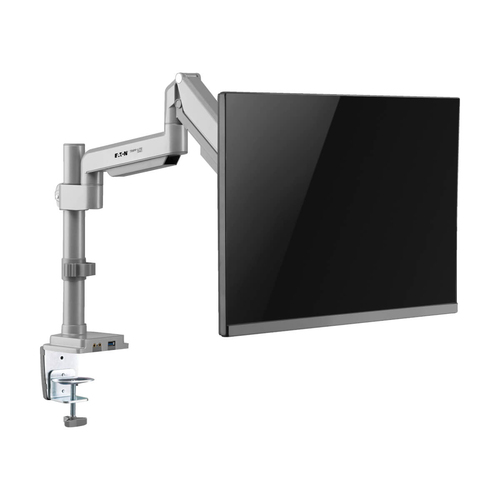

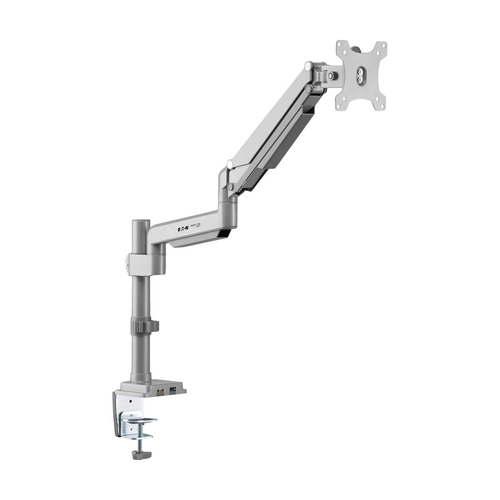

Rugged Aluminum Desk Clamp Lifts Your Monitor Above Your Work Area’s Surface
This VESA-compliant desktop clamp mounts a flat- or curved-screen display above your desk, table or workstation, allowing you to free up valuable surface space. Recommended for home or office use, the DDR1732SAL fits most flat- and curved-panel monitors from 13 to 34 inches. The durable aluminum frame tolerates frequent adjustments, and the swiveling aluminum arm supports up to 19.8 pounds (9 kg). Instead of clamping the unit to your desktop, you may install it using the included grommet. All hardware is included. Cable management brackets along the arms prevent excess cord clutter.

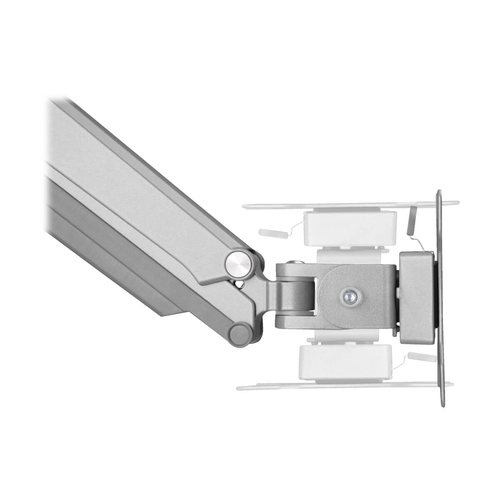

Swivel, Tilt and Rotate the Screens to Find the Most Comfortable Viewing Angles
The gas spring arm adjusts independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -90° to +90° tilt, -90° to +90° swivel and 90° rotation for positioning your screen. Easy screen adjustment lets you quickly find just the right angle without interrupting your workday.

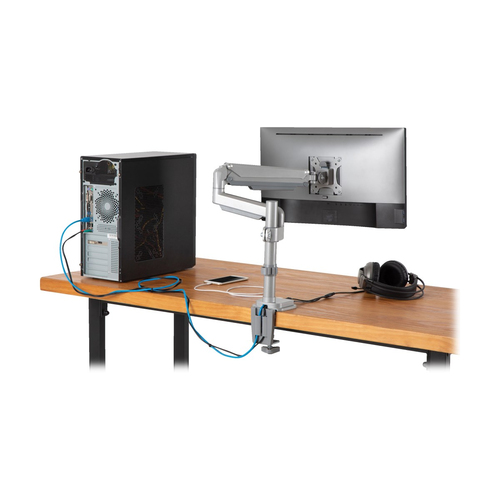

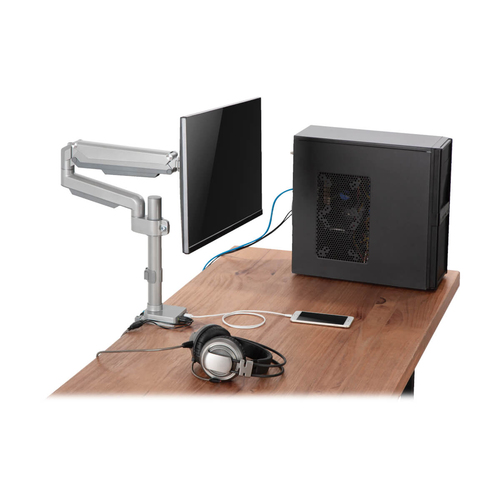

Connect Your Favorite Devices to Help You Get Through the Workday
The base of the DDR1732SAL features a USB 3.0 port with pass-through charging for connecting a USB mobile device. Two 3.5 mm audio jacks allow connection of a microphone and speakers.

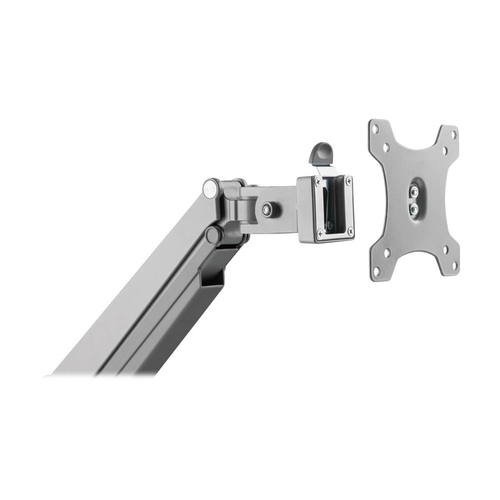

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this monitor stand supports the following VESA mounting hole patterns: 75 x 75 and 100 x 100.

ON ORDER

SKU: DDR1732SAL

Manufacturer: Eaton Eaton

RRP Price €77.06

Specifications

Mounting

Maximum weight capacity
9 kg
Minimum screen size
43.2 cm (17")
Number of displays supported
1
Maximum screen size
81.3 cm (32")
Mounting
Clamp/Bolt-through
Mounting type
Desk
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
75 x 75,100 x 100 mm

Ergonomics

Height adjustment
Yes
Tilt adjustment
Yes
Tilt angle range
-90 - 90°
Swivel angle range
-90 - 90°
Angle of rotation
90°
Cable management
Yes

Design

Housing material
Aluminium, Steel
Product colour
Silver

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Microphone in
Yes
Headphone outputs
1

Weight & dimensions

Width
627.4 mm
Depth
114.3 mm
Height
820.4 mm
Weight
3.99 kg

Packaging data

Package width
447 mm
Package depth
111.8 mm
Package height
464.8 mm
Package weight
4.63 kg

Packaging content

Mounting kit
Yes
Manual
Yes

Logistics data

Master (outer) case width
464.8 mm
Master (outer) case length
325.1 mm
Master (outer) case height
475 mm
Master (outer) case gross weight
19.5 kg
Products per master (outer) case
4 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332262490
Country of origin
China
Harmonized System (HS) code
85299097
