Tripp Lite B070-008-19 NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD

Tripp Lite B070-008-19 NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD

Name: Tripp Lite B070-008-19 NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD
Brand: Eaton
SKU: B070-008-19
Price: 1260.92 EUR
Availability: OutOfStock

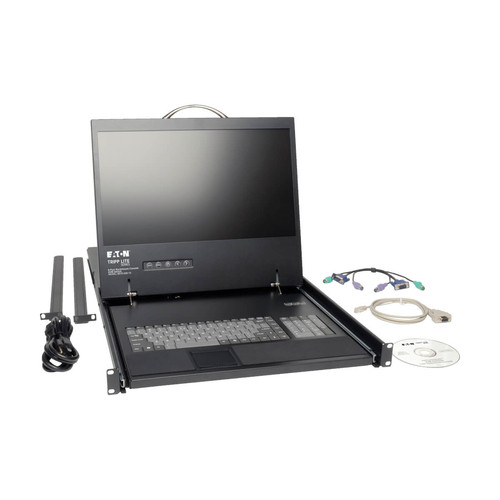

The B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to eight computers/servers.

The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.

The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Note: B051-000 remote access IP unit is not compatible with the B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.

ON ORDER

SKU: B070-008-19

Manufacturer: Eaton Eaton

RRP Price €1,260.92

Specifications

Display

Display diagonal

48.3 cm (19")

Display resolution

1280 x 1024 pixels

Display

LCD

On Screen Display (OSD)

Yes

Technical details

Height (in Rack Units)

Weight (imperial)

16.3 kg (36 lbs)

Product colour

Black

Built-in KVM switch

Yes

KVM switch ports quantity

Operating temperature (T-T)

-40 - 158 °F

Relative humidity

0 - 80%

Compliance certificates

RoHS

Country of origin

Taiwan

Ports & interfaces

Interface

VGA, USB, PS/2

Certificates

Certification

UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1

Power

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Weight & dimensions

Width

449.3 mm

Height

43.4 mm

Depth

722.4 mm

Weight

14 kg

Packaging data

Package weight

18.4 kg

Package width

595.1 mm

Package depth

833.9 mm

Package height

160 mm

Logistics data

Master (outer) case width

595.1 mm

Master (outer) case length

833.9 mm

Master (outer) case height

160 mm

Master (outer) case gross weight

18.4 kg

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

14.01 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
