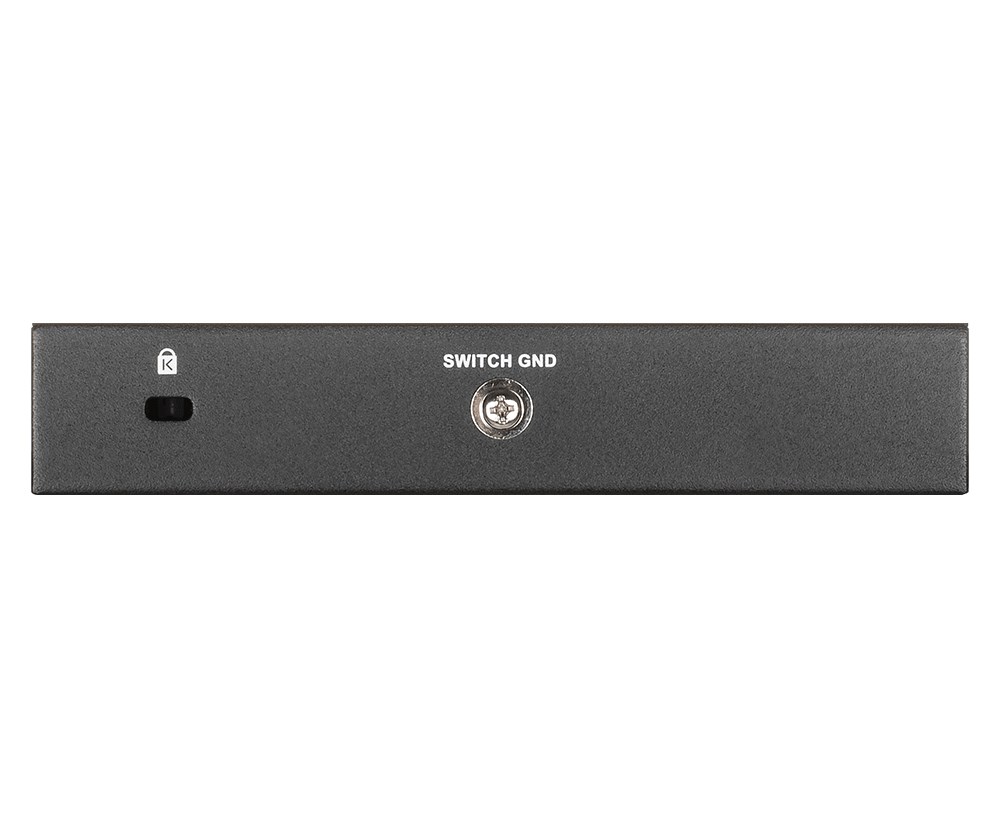

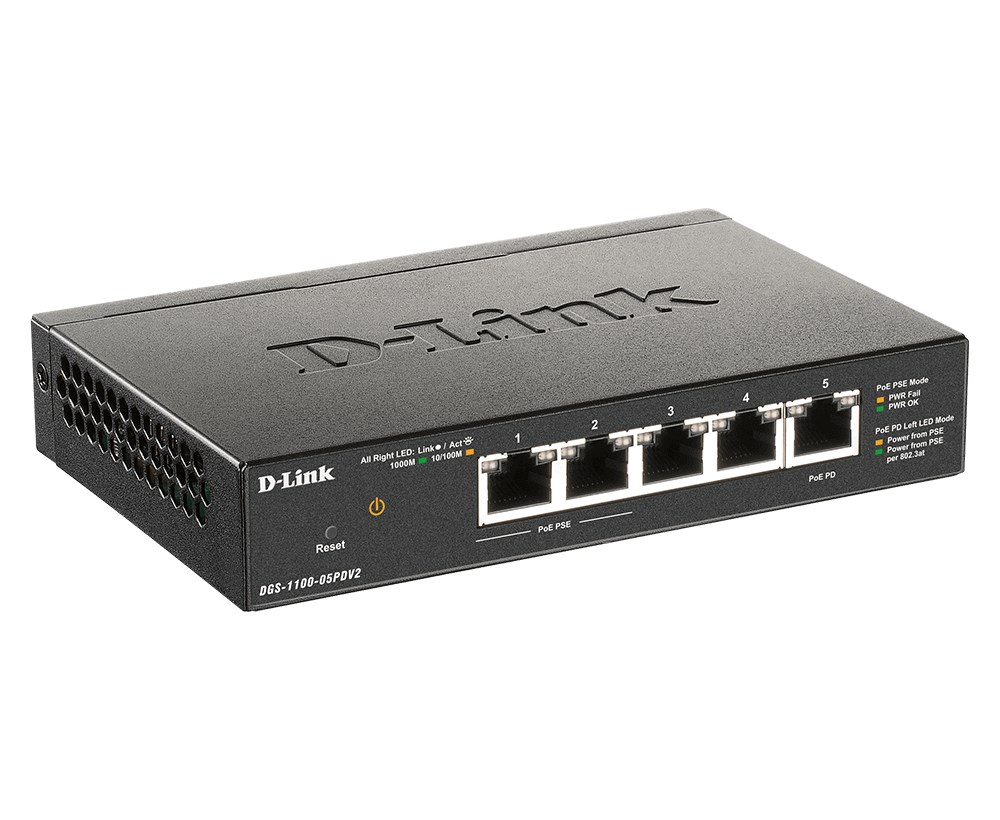

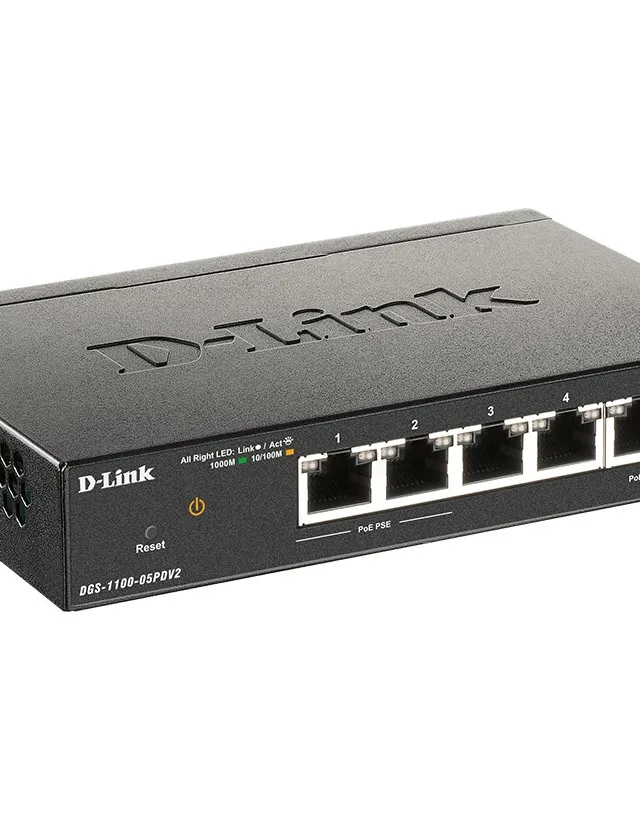

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port

Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities

Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

39 IN STOCK

SKU: DGS-1100-05PDV2

Manufacturer: D-Link D-Link

RRP Price €87.79

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
5

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
10000 Mbit/s
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Number of trunks
1
Number of queues
4
Jumbo frames
9216
Packet buffer memory
1 MB

Security

DHCP features
DHCP client
IGMP snooping
Yes
IGMP entries
128
Static port security
Yes
SSH/SSL support
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
MAC address entries
Static MAC address entries

Design

Rack mounting
No
Product colour
Black

Performance

Flash memory
2 MB
Noise level
0 dB
Fanless
Yes
Mean time between failures (MTBF)
2357475 h

Power

Power source
PoE
Power supply included
No
Power consumption (typical)
3.24 W
Power consumption (max)
24.08 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
2
Power over Ethernet (PoE) power per port
18 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
150 mm
Depth
97 mm
Height
28 mm
Weight
380 g

Certificates

Compliance certificates
BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI

Logistics data

Harmonized System (HS) code
85176990
