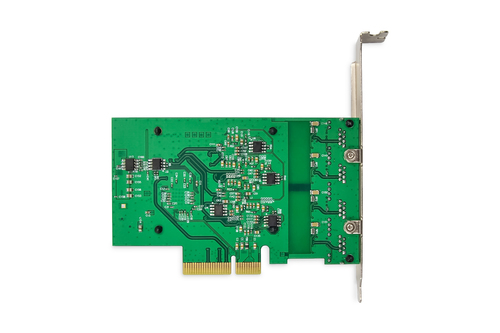

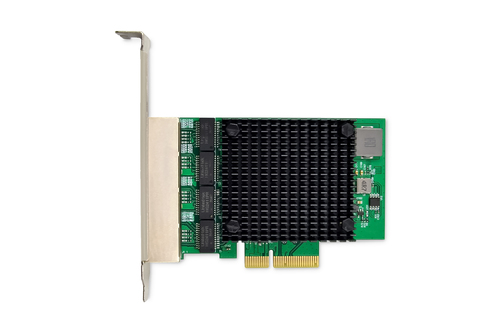

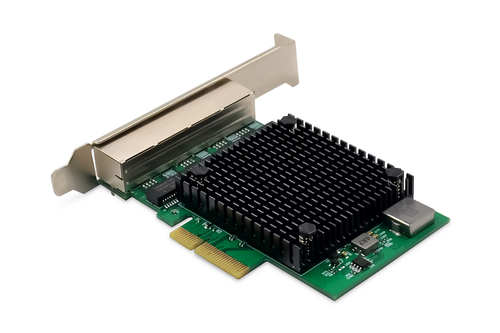

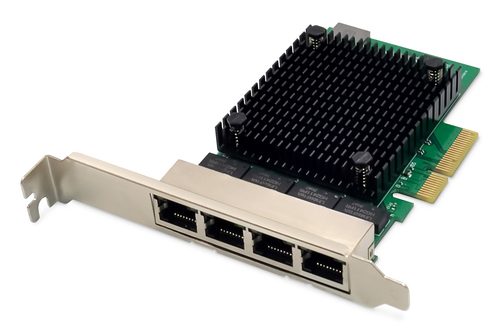

Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset

The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.

- 2-Lane PCI Express bus connecting with up to 10Gbps bus width
- PCI Express interface: x4
- Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
- Supports 2.5G and 1G Lite mode
- Supports pair swap/polarity/skew correction
- Crossover Detection& Auto-Correction

The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

1 IN STOCK

SKU: DN-10136

Manufacturer: Digitus Digitus

RRP Price €86.13

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
4
PCI version
2.1

Network

Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
100,1000,2500 Mbit/s
Wake-on-LAN ready
Yes
Full duplex
Yes
Jumbo frames support
Yes
Jumbo frames
16000

Design

Component for
PC/Server
Product colour
Black, Green
Internal
Yes
Chipset
Realtek RTL8125B
LED indicators
Yes
Country of origin
China

Power

Output voltage
5 - 12 V

System requirements

Windows operating systems supported
Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Linux operating systems supported
Yes
Other operating systems supported
DOS
Server operating systems supported
Windows Server 2008, Windows Server 2012

Weight & dimensions

Width
70 mm
Depth
20 mm
Height
108 mm
Weight
100 g

Packaging data

Package width
155 mm
Package depth
30 mm
Package height
220 mm
Package weight
243.5 g

Packaging content

Mounting brackets included
Yes
Resource CD
Yes
Manual
Yes

Logistics data

UK Trade Tariff code
84718000

Other features

Package volume
1023 cm³
