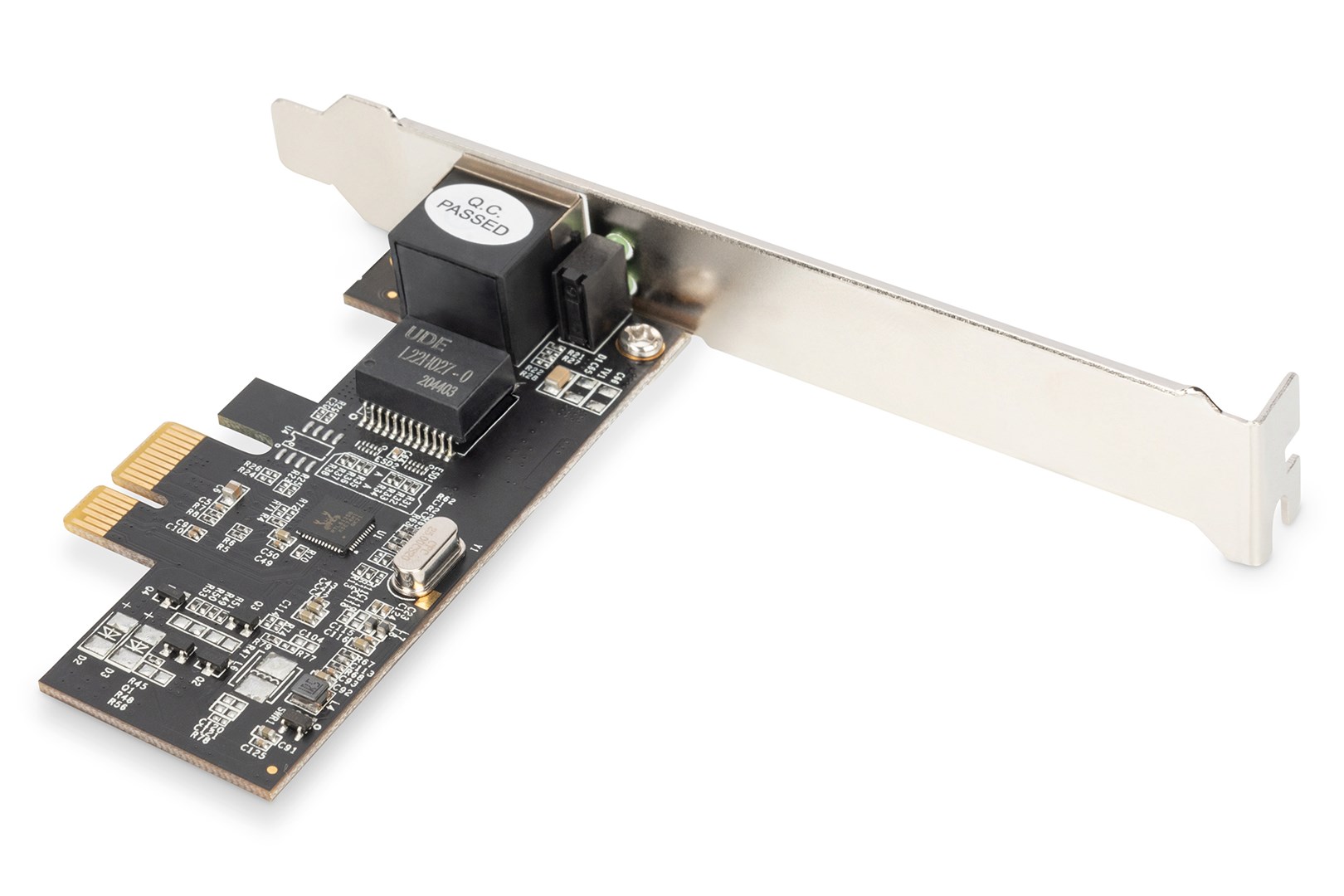

Digitus Gigabit Ethernet PCI Express Network Card 2.5G (4-Speed)

Fast multi-gigabit network connection with up to 2.5 Mbps for your PCI express slot

- Gigabit data transmission with up to 2500 Mbps (2.5G)
- Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3ab
- Ideal for streaming and gaming applications with high data rates
- Supports IEEE802.3x full-duplex flow control
- Supports IEEE802.1q VLAN tagging
- Supports Wake-on-LAN

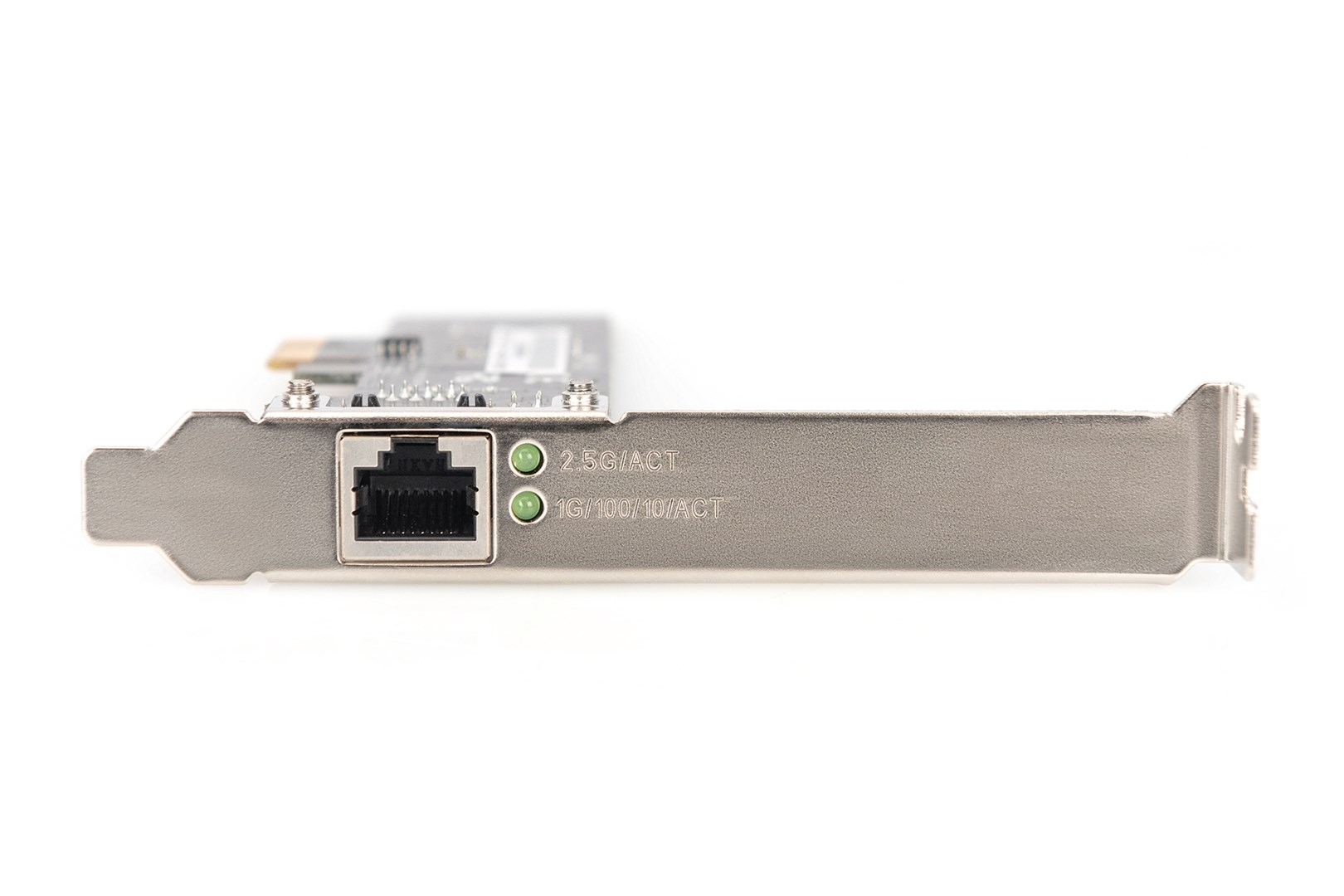

- Additional low-profile slot bracket for use in narrow housings

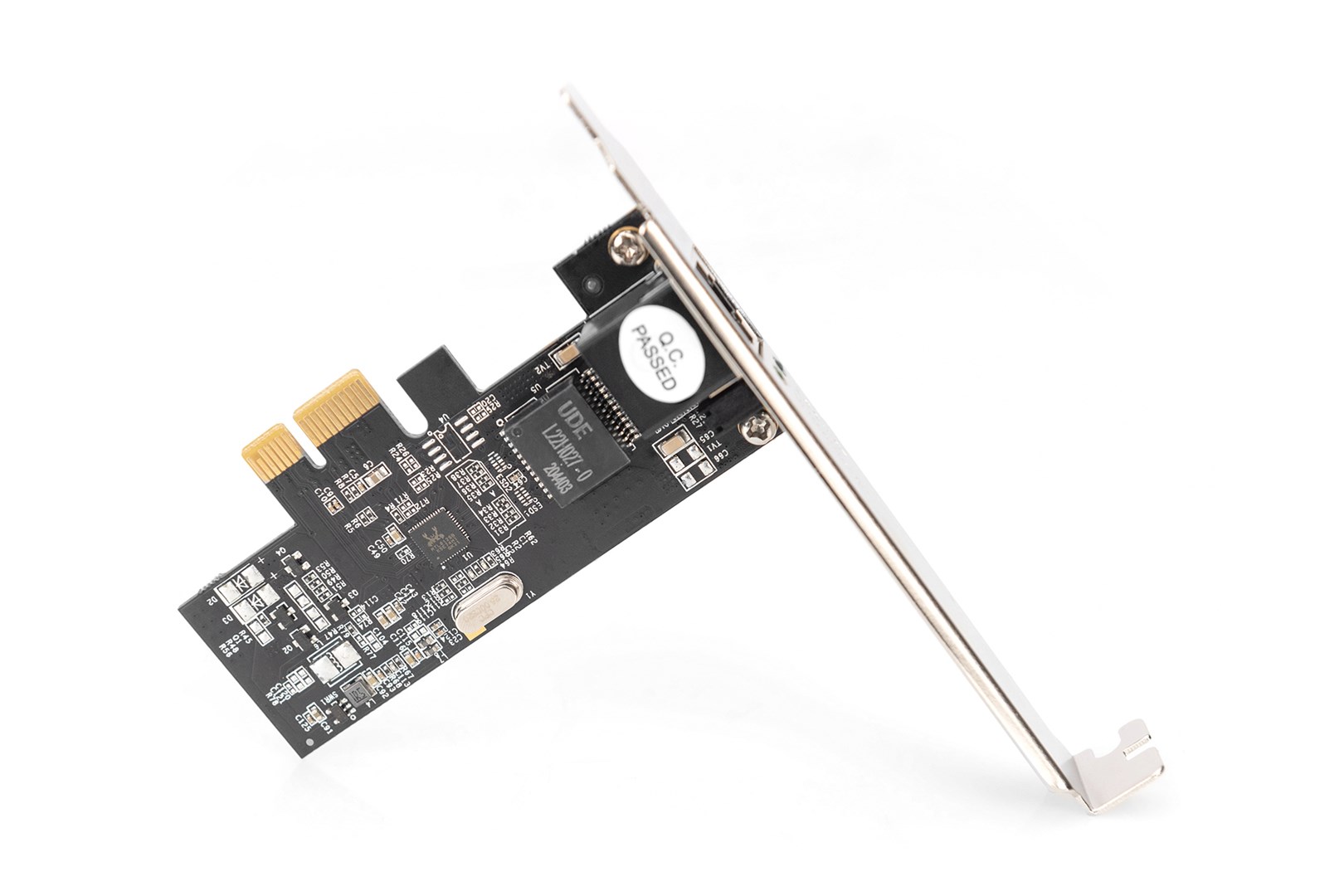

This PCIe Gigabit Network Card from DIGITUS® offers you the highest performance for network applications that achieve high data rates with your 10/100/1000/2500 BASE-T ethernet controller. This is ideal for streaming applications with high resolution. Via LAN interfaces (RJ45), it supports the IEEE802.3u specification for fast ethernet and the IEEE802.3ab specification for gigabit ethernet with up to 2.5 Gbps. IEEE802.3x full-duplex flow control is also supported, as well as Wake-on-LAN. The card can be used for slots at full installation height, a low-profile slot bracket is also provided in the scope of delivery for use at half installation height.

12 IN STOCK

SKU: DN-10135

Manufacturer: Digitus Digitus

RRP Price €34.77

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
PCI version
2.1
PCI Card form factor
Full-height (low-profile)

Network

Maximum data transfer rate
2500 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Wake-on-LAN ready
Yes

Design

Component for
Server/workstation
Product colour
Black
Internal
Yes
Chipset
Realtek RTL8125B
Plug and Play
Yes
LED indicators
Yes
Country of origin
China

System requirements

Windows operating systems supported
Windows 10, Windows 7, Windows 8
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T)
5 - 50 °C
Operating relative humidity (H-H)
20 - 80%

Weight & dimensions

Width
120 mm
Depth
98 mm
Height
22 mm
Weight
35.2 g

Packaging content

Mounting brackets included
Yes
Quick installation guide
Yes

Logistics data

Harmonized System (HS) code
85176990
