Digitus 10Gbps Dual Port Ethernet Server adapter

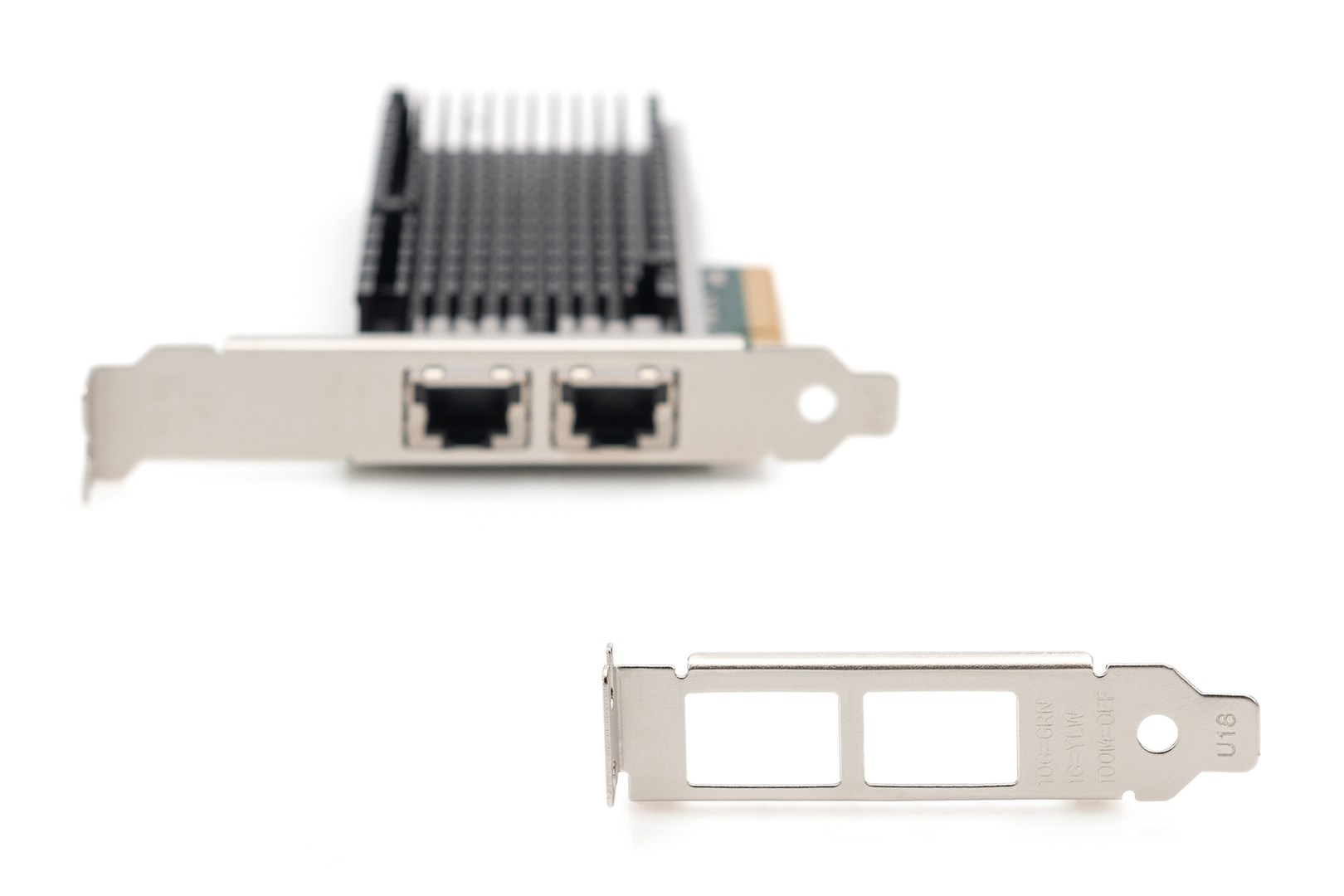

10Gbps Dual Port Ethernet Server adapter, incl. low Profile brackets

- Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center
- Standard CAT-6a cabling with RJ45 connectors
- Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
- Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA
- Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY
- Reliable and proven 10 Gigabit Ethernet technology from Intel corporation
- Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS

DN-10163 is PCI-e 10Gbps Dual RJ45 Port Ethernet Network Card , based on INTEL X540 Chipset, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms. 10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning."

2 IN STOCK

SKU: DN-10163

Manufacturer: Digitus Digitus

RRP Price €198.32

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
2
PCI version
2.1
PCI Card form factor
Full-height (low-profile)

Network

Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p
Ethernet LAN
Yes
Jumbo frames support
Yes
Jumbo frames
9.5
Data link protocols
TCP/IP, UDP/IP, IPSec, iSCS
LAN controller
Intel® X540-BT2

Design

Component for
Server
Product colour
Green, Silver
Internal
Yes
LED indicators
Yes
Country of origin
China

System requirements

Windows operating systems supported
Windows 10, Windows 8, Windows 8.1
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2008, Windows Server 2012, Windows Server 2016

Weight & dimensions

Width
155 mm
Depth
20 mm
Height
120 mm
Weight
170 g

Packaging data

Package width
218 mm
Package depth
30 mm
Package height
155 mm
Package weight
280 g

Packaging content

Mounting brackets included
Yes
Resource CD
Yes
Manual
Yes

Logistics data

UK Trade Tariff code
84718000

Other features

Package volume
1013.7 cm³
