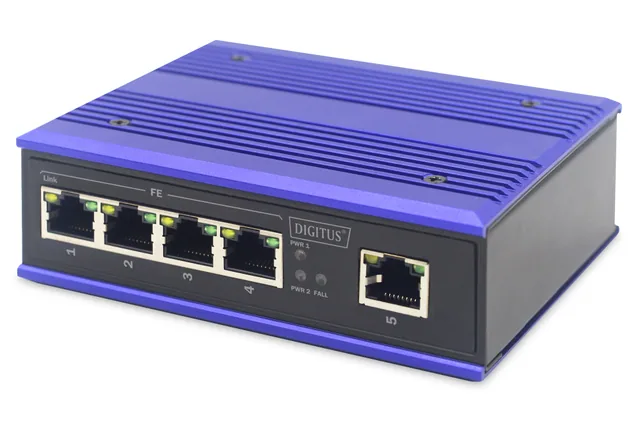

Digitus 4 port Fast Ethernet network switch, industrial, unmanaged, 1 RJ45 uplink

Name: Digitus 4 port Fast Ethernet network switch, industrial, unmanaged, 1 RJ45 uplink
Brand: Digitus
SKU: DN-650105
Price: 52.58 EUR
Availability: InStock

Robust and durable industrial solutions with standard and top-hat rail mounting

- Industrial 5-port Fast Ethernet switch
- 5 x 10/100Base-TX Ethernet ports
- DIN rail mountable

The DIGITUS® Industrial Fast Ethernet Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibrations. With a temperature range of -40°C to 80°C, the Industrial Fast Ethernet Switch can be used under the most adverse conditions. Constant availability is guaranteed in highly sensitive areas such as transportation, production, traffic and security monitoring. Thanks to the simple plug-and-play system, the Industrial Fast Ethernet Switch can be quickly integrated into the respective environment. Thanks to its Fast Ethernet connectivity, the Industrial Fast Ethernet Switch is a flexible, cost-effective solution for industrial environments.

1 IN STOCK

SKU: DN-650105

Manufacturer: Digitus Digitus

RRP Price €52.58

Specifications

Management features

Switch type

Unmanaged

Switch layer

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Fast Ethernet (copper) ports quantity

Network

Networking standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

10G support

Copper ethernet cabling technology

10BASE-T, 100BASE-TX

Full duplex

Yes

Flow control support

Yes

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100 Mbit/s

VLAN support

Data transmission

Switching capacity

1 Gbit/s

MAC address table

2048 entries

Store-and-forward

Yes

Design

Rack mounting

Product colour

Black, Blue

Housing material

Metal

LED indicators

Yes

Wall mountable

Yes

DIN rail mounting

Yes

Vandal-proof

Suitable for outdoor use

Power

Redundant power supply (RPS) support

Yes

DC input voltage

12 - 48 V

Power protection features

Overload, Short circuit

Power over Ethernet (PoE)

Other features

Ethernet interface type

Fast Ethernet

Operational conditions

Operating temperature (T-T)

-40 - 85 °C

Weight & dimensions

Width

118 mm

Depth

86 mm

Height

39 mm

Weight

360 g

Packaging content

Quick start guide

Yes

Packaging data

Package width

162 mm

Package depth

135 mm

Package height

53 mm

Package volume

1159.11 cm³

Package weight

483.333 g

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.36 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
