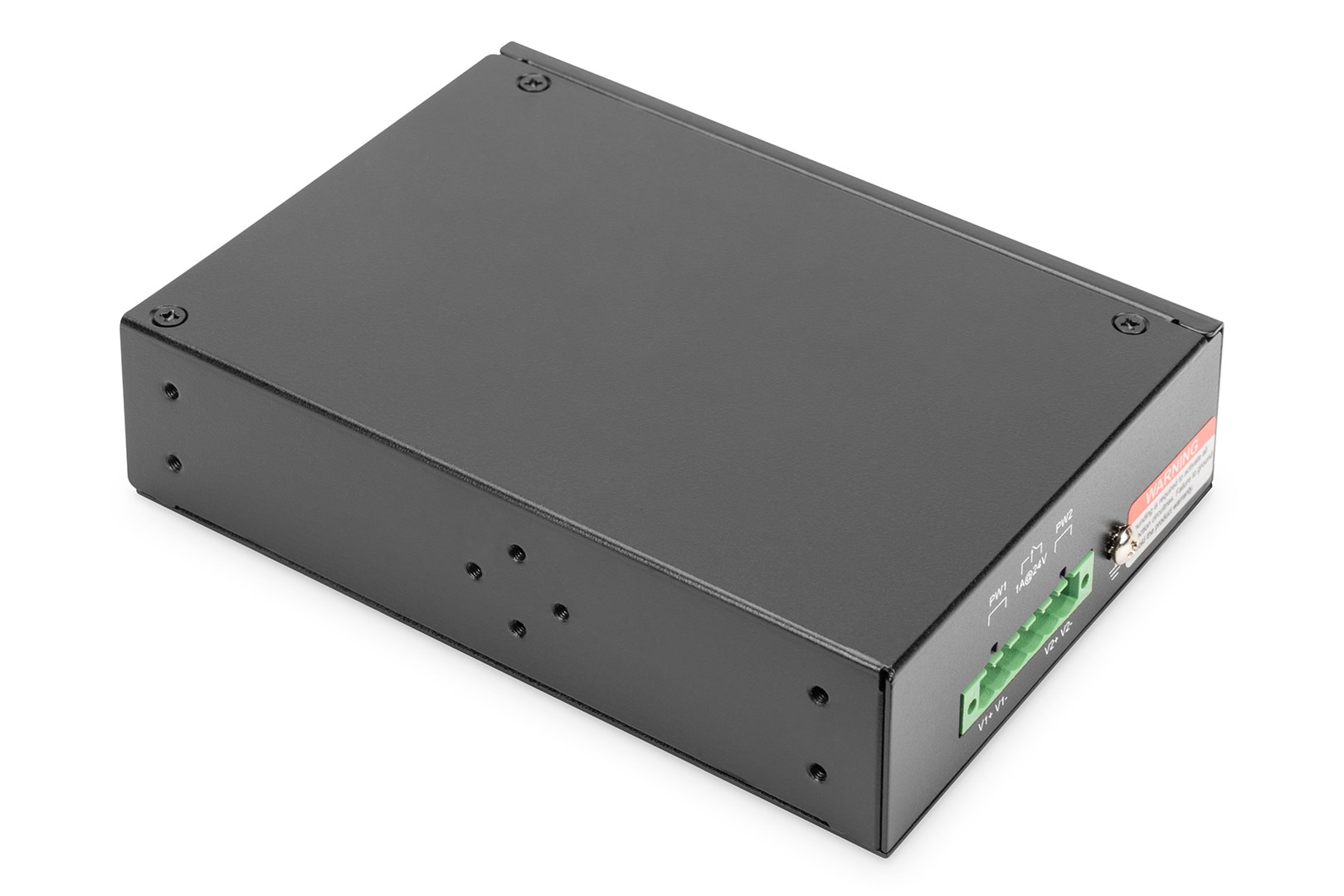

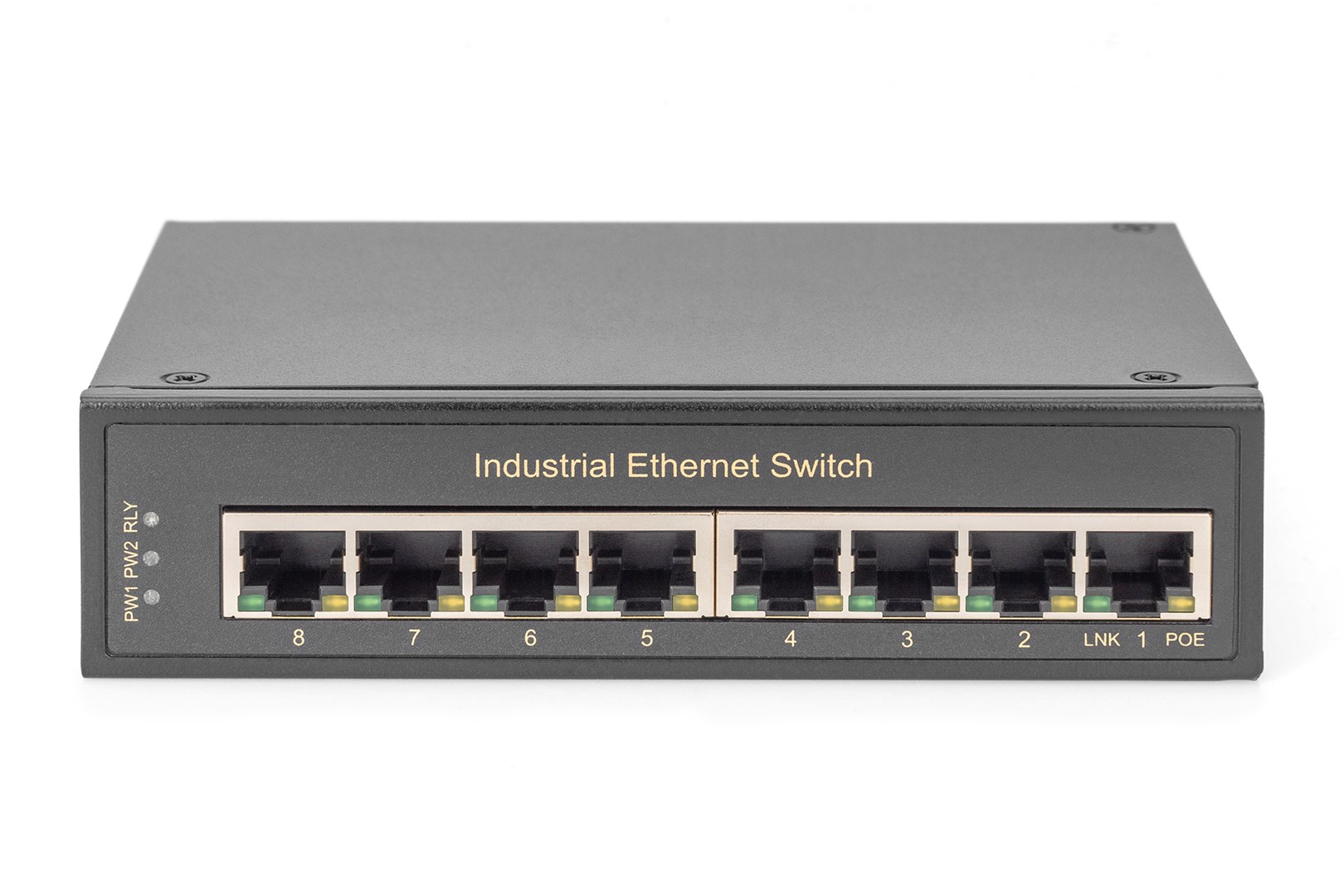

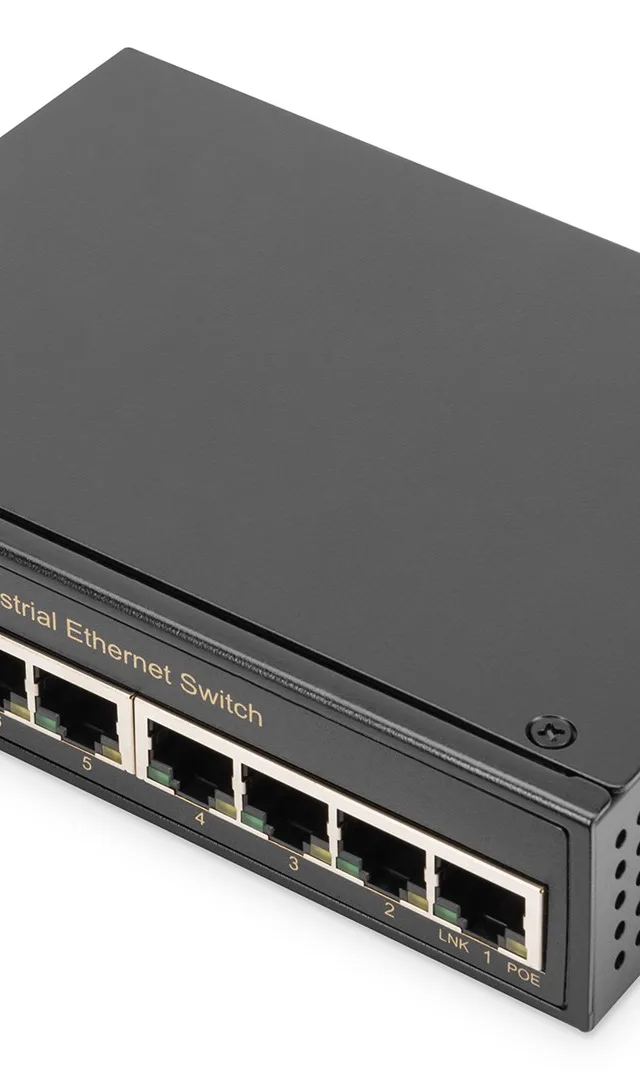

Digitus 8 port Gigabit Ethernet network switch, industrial, unmanaged

- Industrial 8-port Gigabit switch
- 8 x 10/100/1000Base-TX Ethernet ports
- Extended operating temperature range, -40 °C ~ +75 °C

The DIGITUS® Industrial Gigiabit Switch is designed for harsh environments where they are exposed to humidity, temperature fluctuations and vibrations. With a temperature range of -40°C to 75°C, the Industrial Gigabit Switch can be used under the most adverse conditions. Constant availability is guaranteed in highly sensitive areas such as transportation, production, traffic and security surveillance. Thanks to the simple plug-and-play system, the Industrial Gigabit Switch can be quickly integrated into the respective environment. Gigabit connectivity makes the Industrial Gigabit Switch a flexible, cost-effective solution for industrial environments.

2 IN STOCK

SKU: DN-651108

Manufacturer: Digitus Digitus

RRP Price €159.85

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-TX
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
VLAN support
No

Data transmission

Switching capacity
16 Gbit/s
MAC address table
8000 entries
Store-and-forward
Yes

Design

Product colour
Black
Housing material
Metal
Wall mountable
Yes
DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Performance

Plug and Play
Yes
Mean time between failures (MTBF)
500000 h

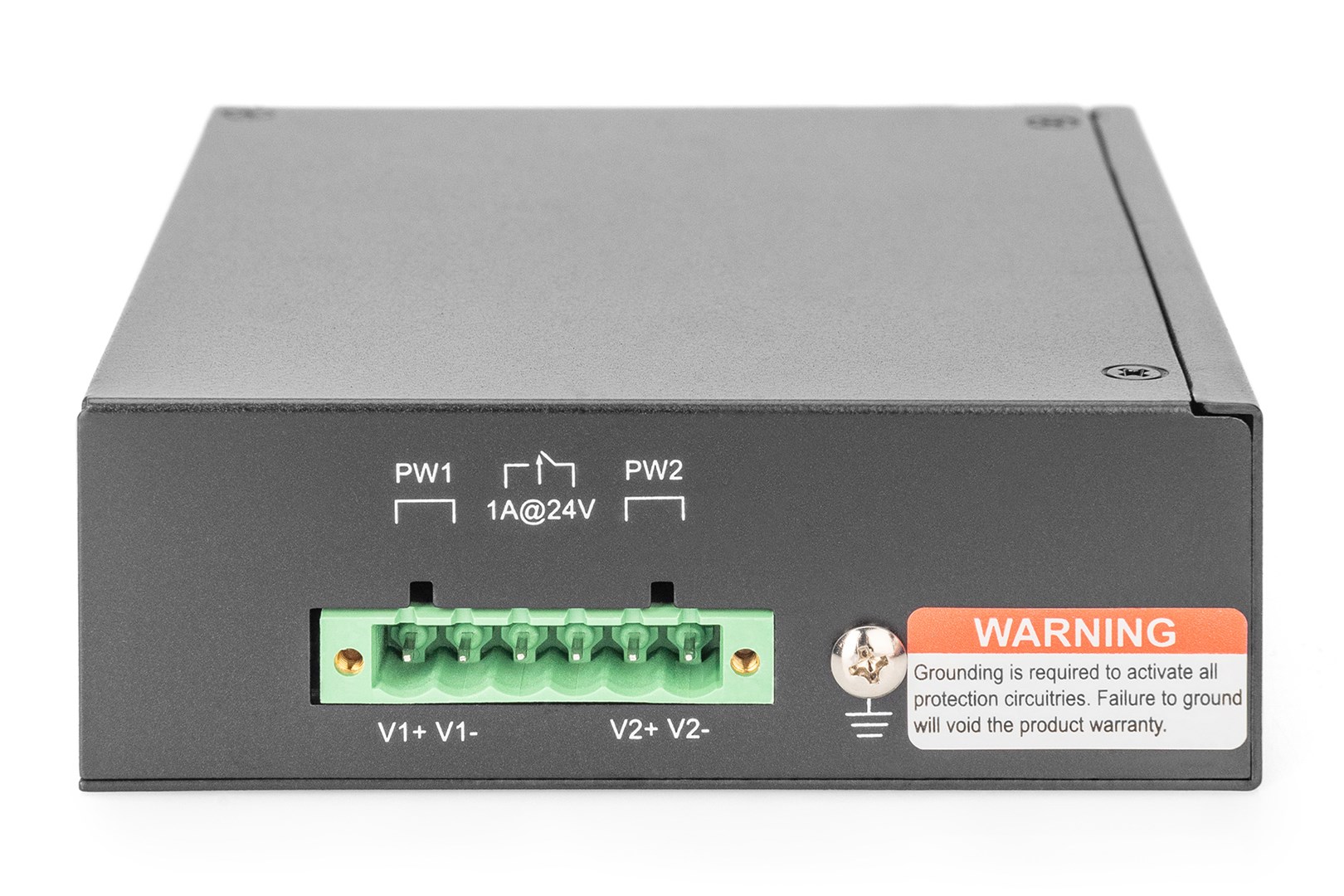

Power

Redundant power supply (RPS) support
Yes
DC input voltage
12 - 56 V
Power consumption (typical)
5 W
Power protection features
Over voltage, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 85 °C

Weight & dimensions

Width
36.2 mm
Depth
105 mm
Height
142 mm
Weight
520 g

Packaging content

Quick start guide
Yes

Packaging data

Terminal block included
Yes
Package width
65 mm
Package depth
165 mm
Package height
215 mm
Package volume
2305.88 cm³
Package weight
787.5 g

Certificates

Certification
EN 50155

Logistics data

UK Trade Tariff code
85176200
Country of origin
Taiwan
Master (outer) case width
240 mm
Master (outer) case length
350 mm
Master (outer) case height
560 mm
Harmonized System (HS) code
85176990
Master (outer) case gross weight
12.6 kg
Master (outer) case volume
47040 cm³
Products per master (outer) case
16 pc(s)
