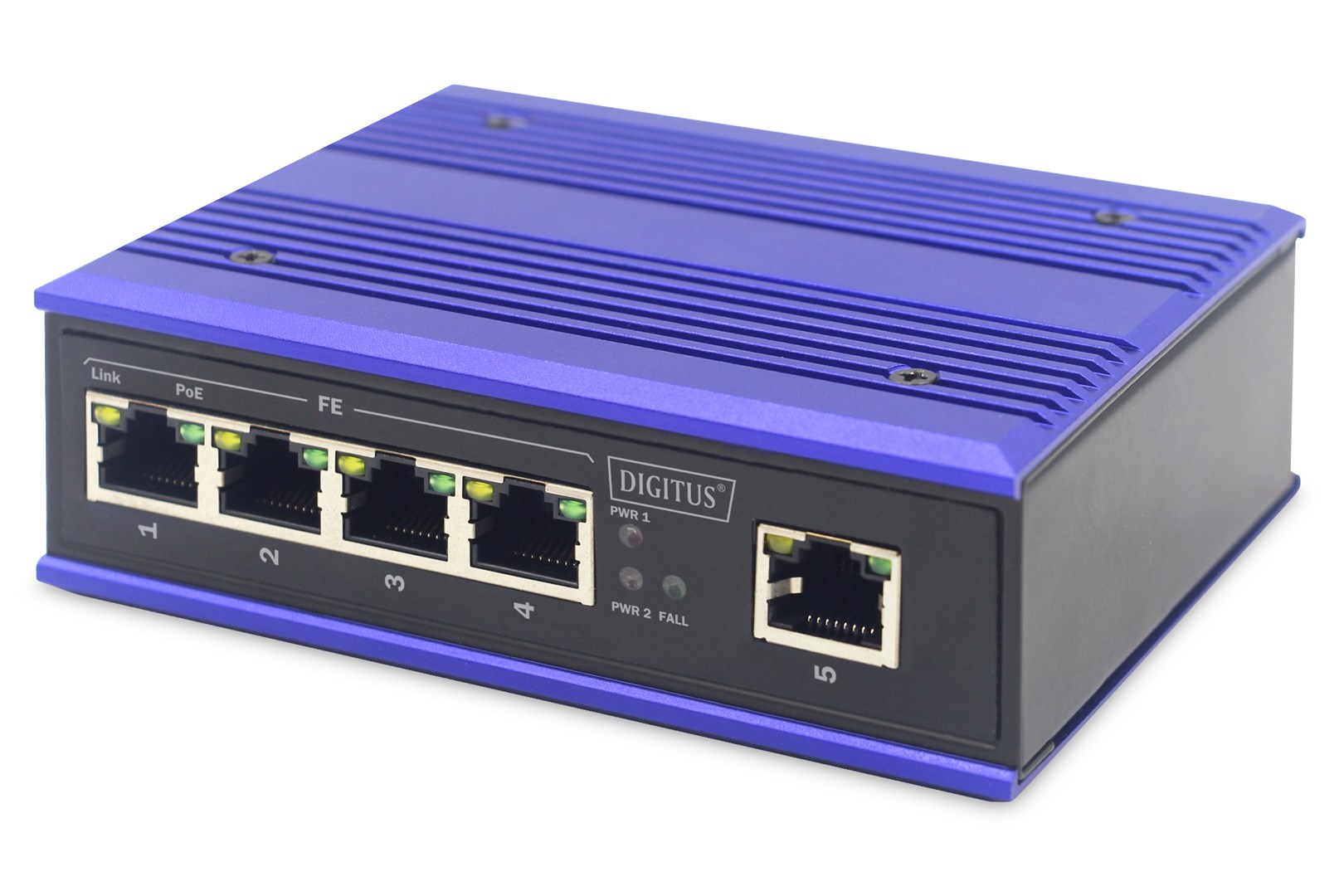

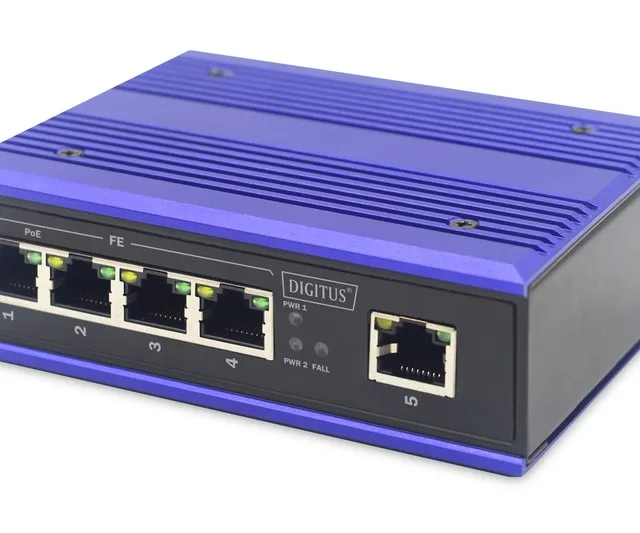

Digitus 4 port Fast Ethernet network PoE switch, industrial, unmanaged, 1 RJ45 uplink

Robust and durable industrial solutions with integrated Power over Ethernet (PoE) function

- Industrial 4-port Fast Ethernet PoE switch + 1 uplink port
- 4 x 10/100Base-TX Ethernet PoE ports
- 1 x 10/100Base-TX Ethernet uplink port

The DIGITUS® Industrial Fast Ethernet Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibrations. With a temperature range of -40°C to 80°C, the Industrial Fast Ethernet Switch can be used under the most adverse conditions. Thanks to the PoE ports with IEEE802.3af/at support, PoE-capable devices can be supplied with up to 30 W per port. Constant availability is guaranteed in highly sensitive areas such as transportation, production, traffic and security surveillance. Thanks to the simple plug-and-play system, the Industrial Fast Ethernet Switch can be quickly integrated into the respective environment. Thanks to its Fast Ethernet connectivity, the Industrial Fast Ethernet Switch is a flexible, cost-effective solution for industrial environments.

ON ORDER

SKU: DN-650107

Manufacturer: Digitus Digitus

RRP Price €71.45

Specifications

Management features

Switch type
Unmanaged
Switch layer
L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
5

Network

Networking standards
IEEE 802.3at
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100 Mbit/s
VLAN support
No

Data transmission

Switching capacity
1 Gbit/s
MAC address table
2048 entries
Store-and-forward
Yes

Design

Rack mounting
No
Product colour
Black, Blue
Housing material
Metal
LED indicators
Yes
Wall mountable
Yes
DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Power

Redundant power supply (RPS) support
Yes
DC input voltage
48 - 57 V
Power protection features
Over voltage, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
120 W

Other features

Ethernet interface type
Fast Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 85 °C

Weight & dimensions

Width
118 mm
Depth
86 mm
Height
39 mm
Weight
369 g

Packaging content

Quick start guide
Yes

Packaging data

Package width
162 mm
Package depth
135 mm
Package height
53 mm
Package volume
1159.11 cm³
Package weight
483.333 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
