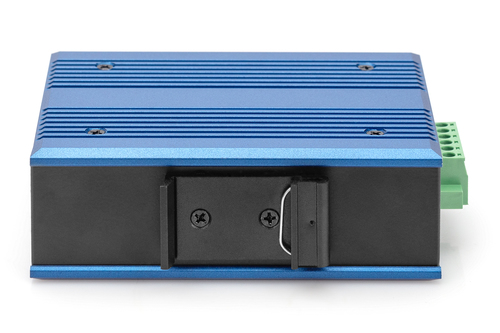

Digitus Industrial Gigabit Media Converter RJ45, SC 20 km

Industrial Gigabit media converter 10/100/1000BaseT to 1000Base-SX SC, singlemode 1310 nm up to 20 km, The perfect converter solution for optical data transmission

- Converts wire-based network signals into fiber optic signals
- High quality and maximum reliability
- 10/100/1000Base-TX to 1000Base-SX
- Connections: 1x RJ45, 1x SC Duplex
- Range up to 20 km
- Wavelength: 1310nm
- Singlemode fiber
- Automatic cable detection - Auto MDI / MDI-X function
- Diagnostic LEDs for status and activity monitoring
- Suitable for 9/125um fiber optic cable (singlemode)
- Compact, robust metal housing
- Excellent protection against short circuits

The media converters from DIGITUS® are an optimal solution for the migration of fiber optic signals. You can now access fiber optic technology and bridge several kilometers without having to replace your entire network cabling. With our extensive range of products, you can respond to your individual requirements. Intuitive operation guarantees quick and easy installation. Years of experience and a wide range of products make DIGITUS® a reliable partner for your network technology.

1 IN STOCK

SKU: DN-652102-1

Manufacturer: Digitus Digitus

RRP Price €99.50

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Converter input interface
10Base-T, 100Base-T, 1000Base-T
Converter output interface
1000Base-SX
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,1000,100 Mbit/s
Copper ethernet cabling technology
10BASE-T, 1000BASE-T, 100BASE-T
Fiber ethernet cabling technology
1000BASE‑SX
Data transfer rate
1000 Mbit/s
Auto MDI/MDI-X
Yes

Performance

Maximum transfer distance
20000 m
Wavelength
1310 nm
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125,100/140 µm

Features

Internal
No
Digital Diagnostics Monitoring (DDM)
No
LED indicators
Activity, Status
Product colour
Black, Blue
Housing material
Metal
International Protection (IP) code
IP40
DIN rail mounting
Yes

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
2
Fiber optic connector
SC

Power

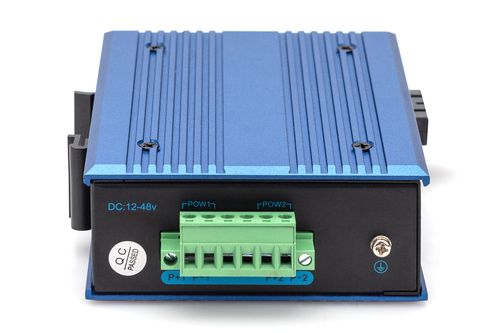

Input voltage
12 - 48 V
Power consumption (typical)
3 W
Power over Ethernet (PoE)
No

Weight & dimensions

Width
118 mm
Depth
92.4 mm
Height
40 mm

Operational conditions

Operating temperature (T-T)
-40 - 80 °C

Packaging content

Quick installation guide
Yes

Packaging data

Package width
135 mm
Package depth
54 mm
Package height
165 mm
Package volume
1202.85 cm³
Package weight
558.333 g

Logistics data

Country of origin
China
UK Trade Tariff code
85176200
