Digitus 100Gbs QSFP28 SR4 Optical Transceiver

Digitus 100Gbs QSFP28 SR4 Optical Transceiver

Name: Digitus 100Gbs QSFP28 SR4 Optical Transceiver
Brand: Digitus
SKU: DN-81631
Price: 90.97 EUR
Availability: OutOfStock

100Gbs QSFP28 SR4 Module

- Four-channel full-duplex transceiver modules
- Transmission data rate up to 26Gbit/s per channel
- Up to 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
- Low power consumption <3.5W
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
- MPO connector receptacle
- Built-in digital diagnostic function

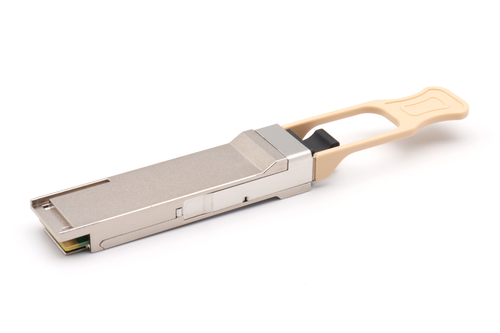

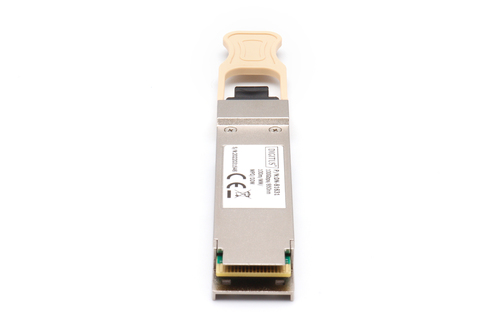

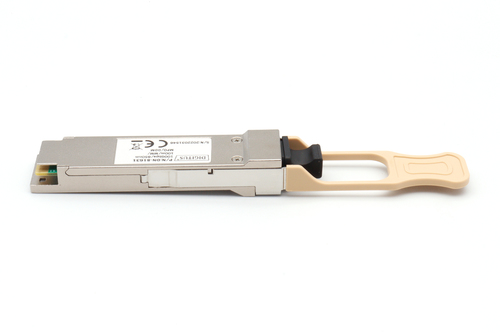

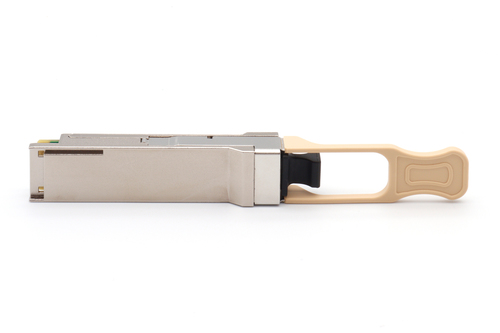

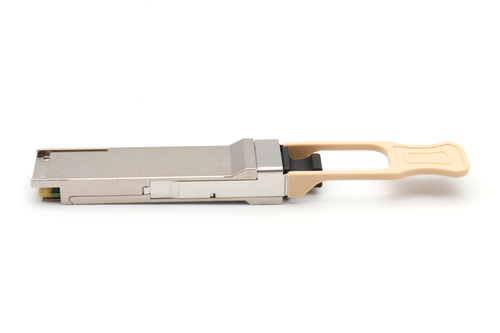

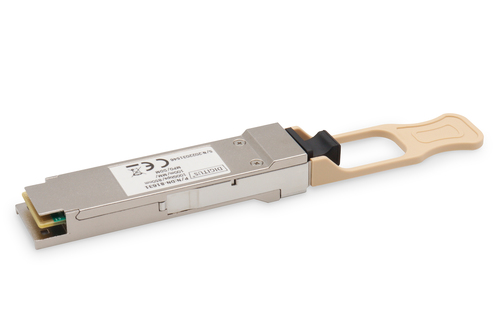

The Digitus DN-81631 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm, 100GBASE SR4 Applications，or 40 Gigabit Ethernet and Infiniband FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 70m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

ON ORDER

SKU: DN-81631

Manufacturer: Digitus Digitus

RRP Price €90.97

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

100000 Mbit/s

Interface type

SFP28

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

QSFP

SFP transceiver standard

SR4

Maximum transfer distance

70 m

Wavelength

850 nm

Networking standards

IEEE 802.3bm

Digital Diagnostics Monitoring (DDM)

Yes

Power

Input voltage

3.3 V

Power consumption (typical)

3.5 W

Certificates

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Weight & dimensions

Weight

50 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

100 mm

Package depth

900 mm

Package volume

2610 cm³

Package weight

69.167 g

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.05 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
