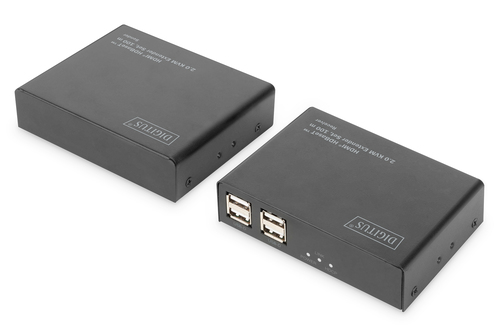

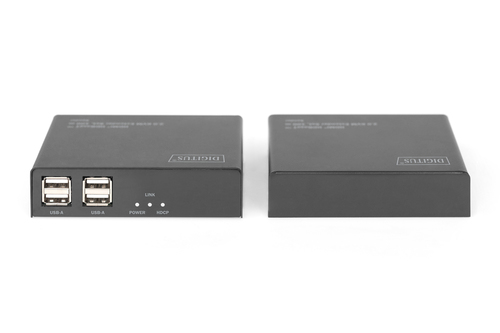

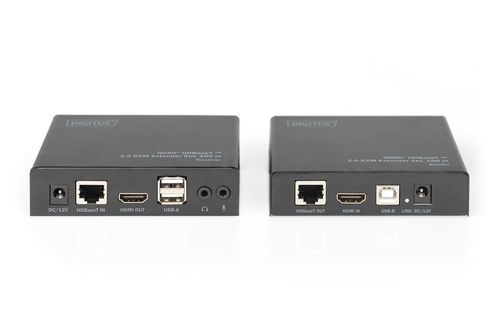

Digitus 4K HDMI HDBaseTâ„¢ 2.0 KVM Extender Set, 100 m

Use an RJ45 network cable to transmit high-resolution, uncompressed audio/video content, USB signals and data

- Transmit high-resolution multimedia content without a loss of quality and uncompressed over distances of up to 100 m
- Saves unnecessary cable relocation and pools multimedia signals along with many other signals in a single network cable
- Forwarding without loss of quality through transmission of uncompressed data
- Supports HDBaseTâ„¢ 2.0 via CAT6A/7/8 cable up to 100 m
- Supports transmission of video, audio and USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)
- Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
- Supports CEC (Consumer Electronics Control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audioâ„¢ and Dolby TrueHD)

With the DIGITUS® HDMI HDBaseT™ 2.0 KVM Extender Set, you can control your source device at a distance of up to 100 meters using a single CAT6A/7/8 cable connection with uncompressed 4K-HDMI™ video content and access to up to 6 connected USB devices. This extender was specially developed for smooth and easy setup. HDBaseT™ 2.0 enables installation using a single cable, avoiding the laborious relocation of multiple cables. A typical application would be a multi-room solution in which the source device and display can be at a distance of up to 100 m. From the receiver, you can use up to 6 USB devices that are connected to the transmitter module, and of course you can enjoy video and audio content. A very easy KVM functionality when it comes to installation and application. Instead of relocating multiple cables, use a single RJ45 network cable or the existing network connections (point-to-point) with the HDMI HDBaseT™ 2.0 Extender from DIGITUS®.

ON ORDER

SKU: DS-55505

Manufacturer: Digitus Digitus

RRP Price €549.27

Specifications

Features

Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
100 m
Cable types supported
Cat5e
Maximum digital resolution
4096 x 2160 pixels
Colour depth
36 bit
Product colour
Black
Material
Metal

Transmitter

Transmitter video port type
HDMI
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
1

Receiver

Receiver local video port type
HDMI
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1

Ports & interfaces

USB 2.0 ports quantity
6

Power

AC input voltage
100 - 240 V
Input current
0.65 A
AC adapter output voltage
12 V
AC adapter output current
2 A
Power consumption (transmitter) (max)
3 W
Power consumption (receiver) (max)
7 W

Weight & dimensions

Transmitter width
13 cm
Transmitter depth
1 cm
Transmitter height
2.5 cm
Transmitter weight
212 g
Receiver width
11 cm
Receiver depth
8 cm
Receiver height
2.8 cm
Receiver weight
240 g

Packaging data

Package width
196 mm
Package depth
243 mm
Package weight
975 g

Packaging content

Cables included
USB
Mounting bracket(s) included
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 90%

Technical details

Maximum resolution
3840 x 2160 pixels
Package volume
2857.68 cm³

Logistics data

Country of origin
China
UK Trade Tariff code
85176200
Harmonized System (HS) code
84733080
