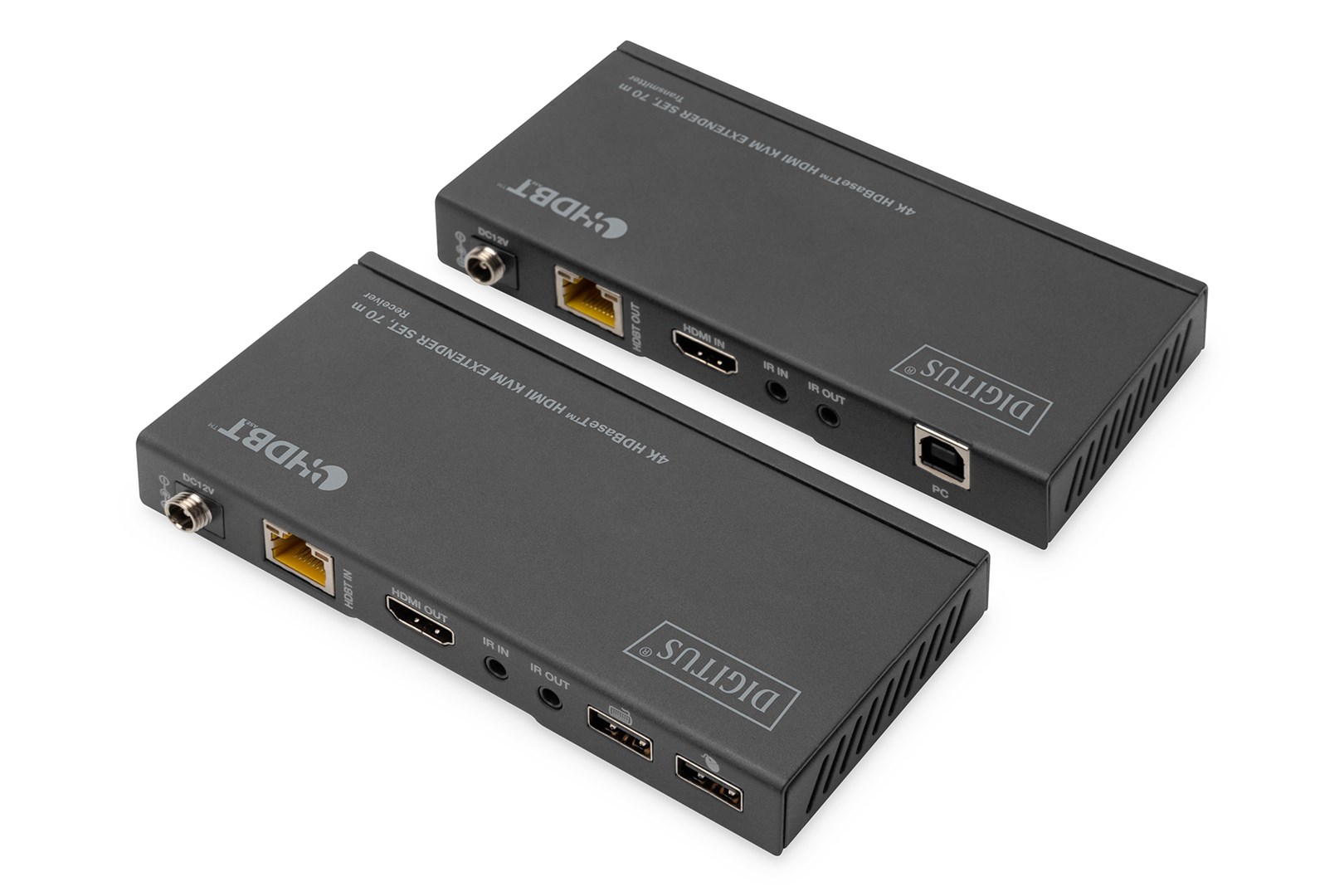

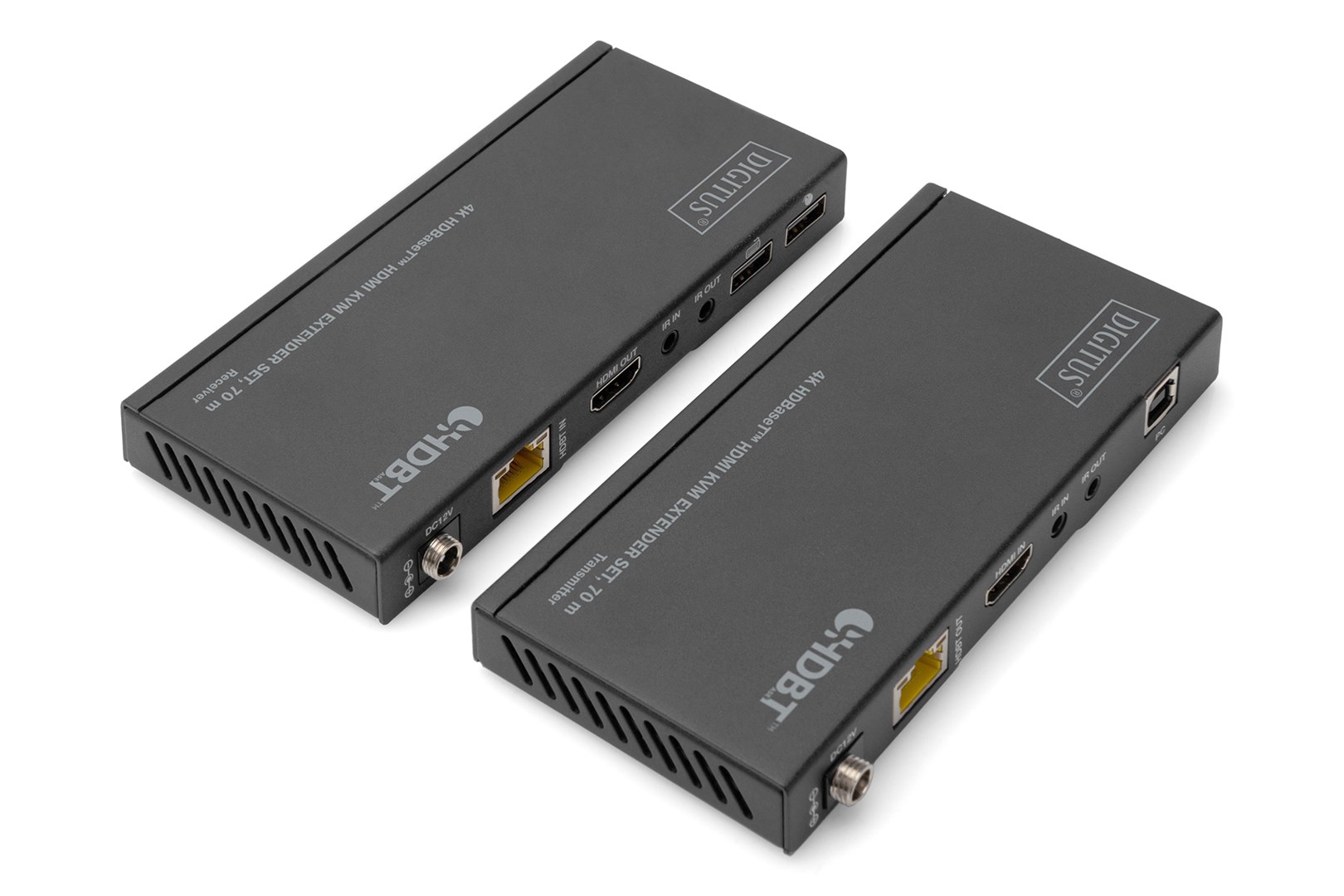

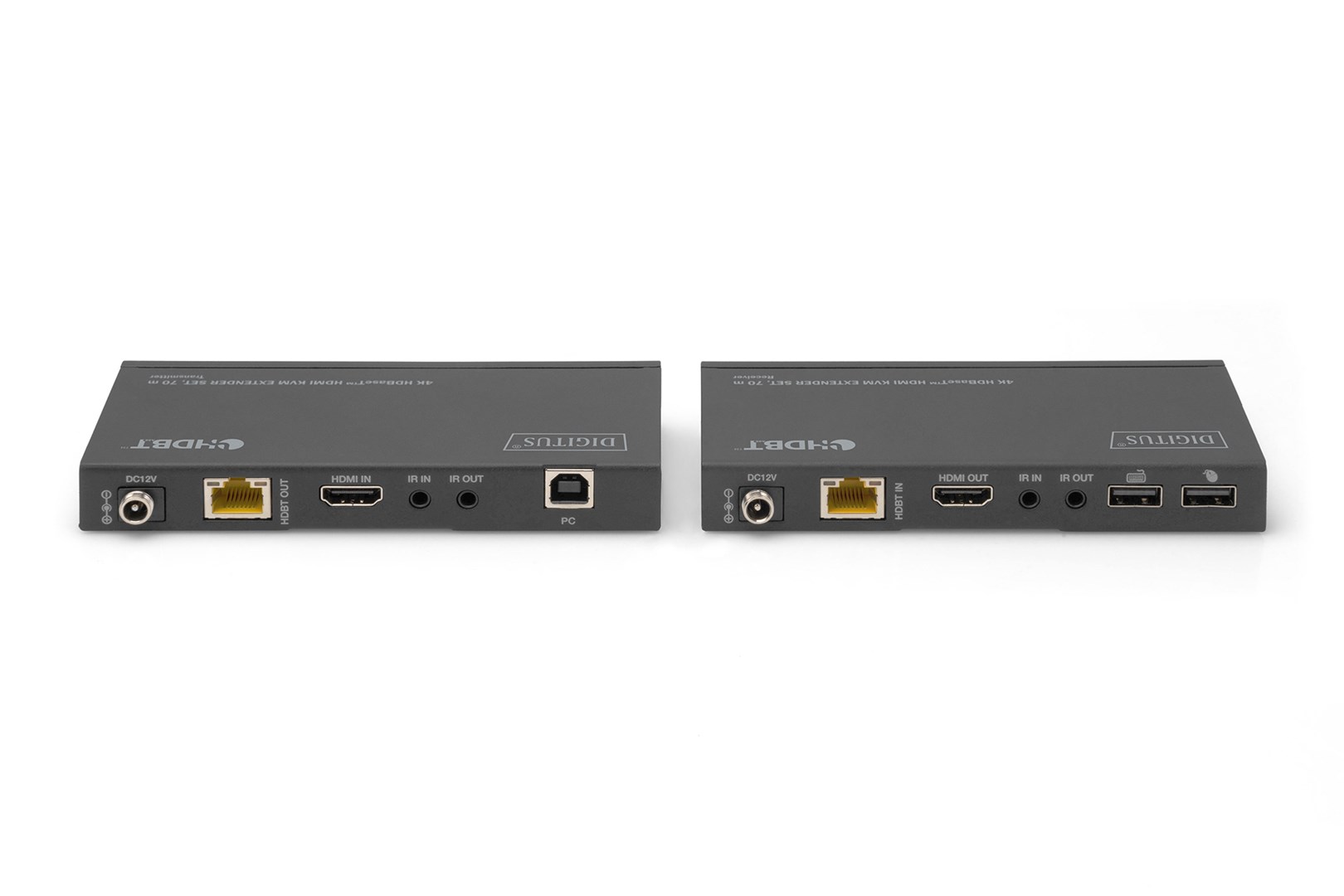

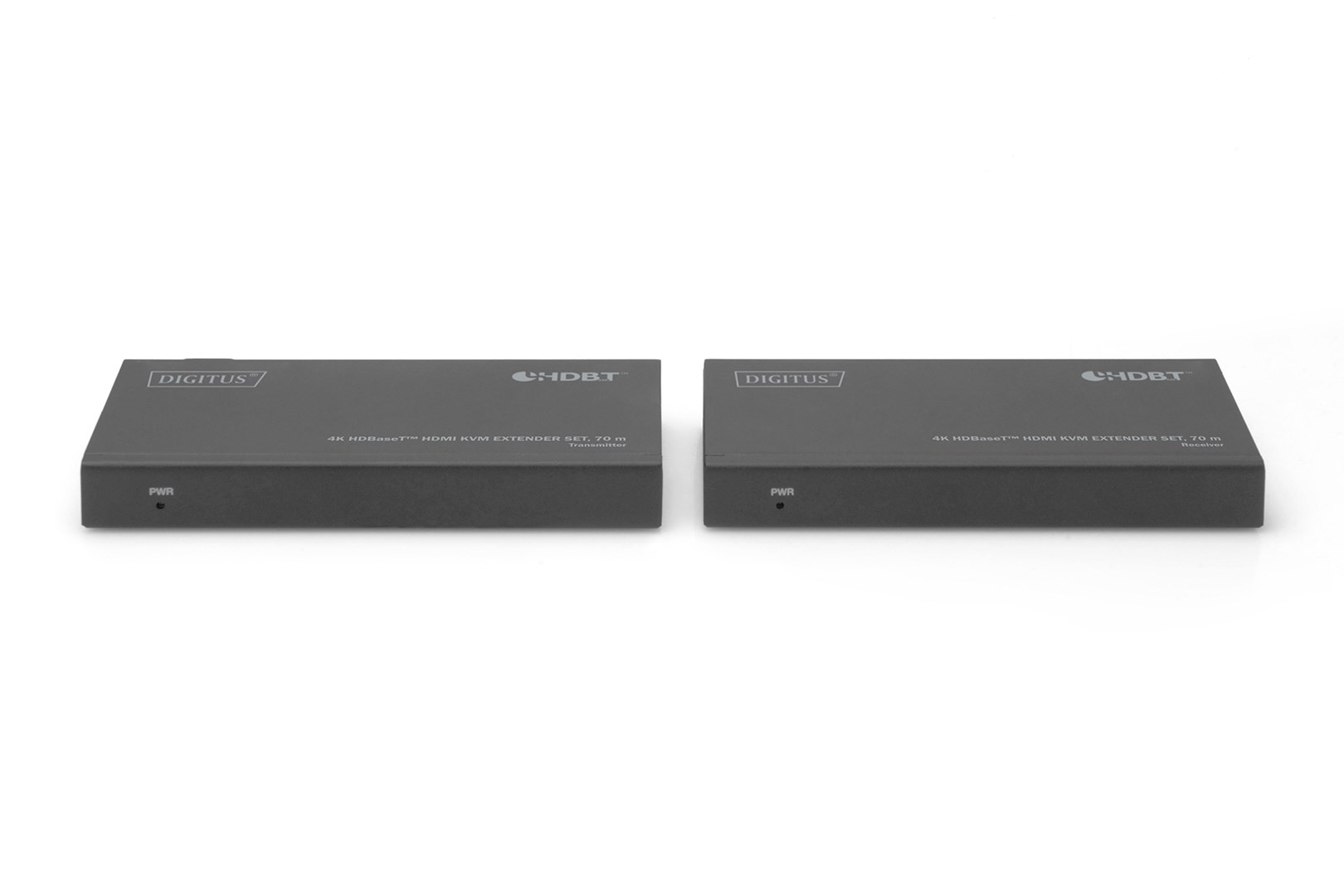

Digitus 4K HDBaseTâ„¢ HDMI KVM Extender Set, 70 m

Extends the HDMI signal to up to 70 m and offers the option to control the keyboard and mouse via USB on the receiver unit

- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connection to mouse and keyboard
- PoC (Power over Cable) - Only the unit requires an external power adapter
- Supports CAT 5e, 6, 6A, 7, 8 network cable
- Video bandwidth: 10.2 Gbps
- Supports HDBaseTâ„¢ 1.0
- HDCP 2.2, 1.4
- IR transmission (bi-directional)
- Compact design for easy and flexible installation
- Sturdy metal housing

The HDBaseTâ„¢ HDMI KVM Extender Set enables signal transmission over large distances using a simple copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended to up to 40 m. Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. Bi-directional IR transmission and KVM functionality (USB 1.1) for connection to mouse and keyboard are also included as features.

68 IN STOCK

SKU: DS-55512

Manufacturer: Digitus Digitus

RRP Price €233.40

Specifications

Features

Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
70 m
Cable types supported
Cat6, Cat6a, Cat7, Cat8
Maximum digital resolution
3840 x 2160 pixels
Product colour
Black
Material
Metal
Plug and Play
Yes
LED indicators
Yes

Transmitter

Transmitter video port type
HDMI
RJ-45 ports quantity (transmitter)
1

Receiver

Receiver local video port type
HDMI
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1

Ports & interfaces

USB port type
USB Type-A
RJ-45 ports quantity
2
USB 1.1 ports quantity
2

Power

AC adapter output voltage
12 V
AC adapter output current
1 A
Power consumption (transmitter) (max)
6.6 W
Power consumption (receiver) (max)
6.6 W

Weight & dimensions

Transmitter width
14 cm
Transmitter depth
6.5 cm
Transmitter height
1.8 cm
Transmitter weight
224 g
Receiver width
14 cm
Receiver depth
6.5 cm
Receiver height
1.8 cm
Receiver weight
227 g

Packaging data

Package width
245 mm
Package depth
185 mm
Package height
75 mm
Package weight
950 g

Packaging content

AC adapter included
Yes
Cables included
USB
Manual
Yes
Mounting bracket(s) included
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Technical details

Maximum resolution
1920 x 1080 pixels
Package volume
3399.38 cm³

Logistics data

Country of origin
China
UK Trade Tariff code
85176200
Harmonized System (HS) code
84733080
