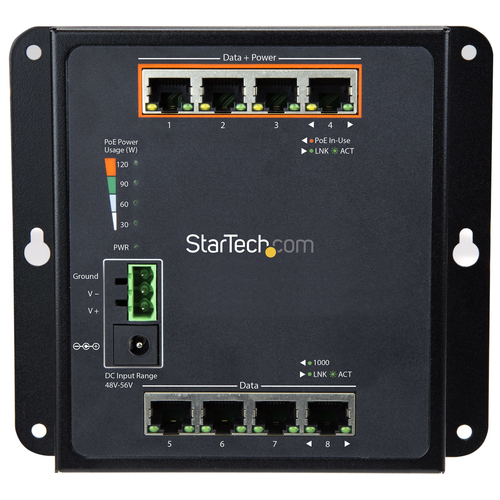

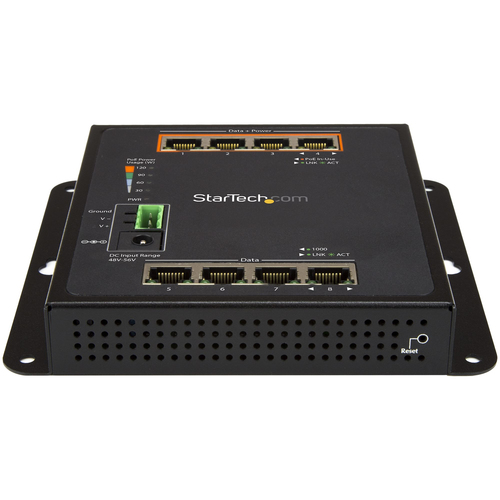

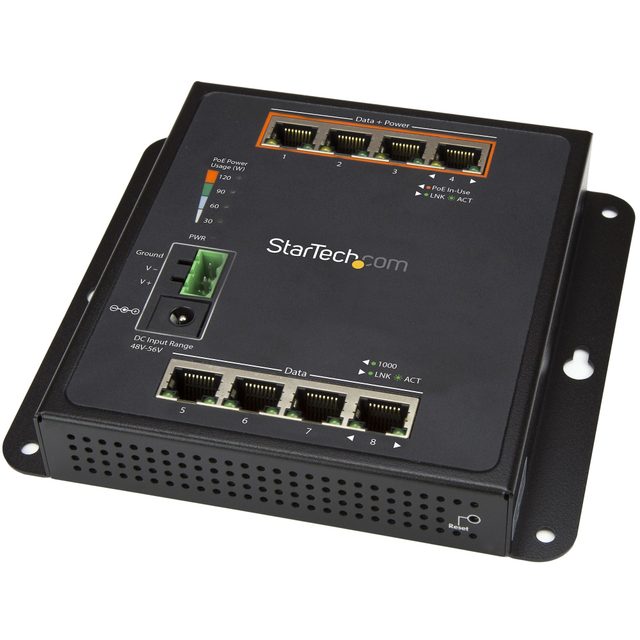

StarTech.com Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet - Hardened GbE Layer/L2 Managed Switch - Rugged High Power Gigabit Network Switch IP-30/-40C to +75C - TAA

Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management

Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.

Expand your network

This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.

Supports PoE+ for flexible use

The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).

Wall-mountable with front access

With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.

Efficient Layer 2 management

The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.

Rugged industrial design

This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.

Reliable connection for seamless network performance

With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.

To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.

The IES81GPOEW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

1 IN STOCK

SKU: IES81GPOEW

Manufacturer: StarTech.com StarTech.com

RRP Price €383.53

Specifications

Management features

Switch type
Managed
Switch layer
L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack

Network

Networking standards
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z
10G support
No
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Virtual LAN features
Tagged VLAN

Data transmission

Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Security

Access Control List (ACL)
Yes

Design

Rack mounting
No
Product colour
Black
Housing material
Steel
LED indicators
Activity, Link, Power
International Protection (IP) code
IP30
Wall mountable
Yes

Performance

Buffer size
512 KB
Maximum data transfer rate
2000 Mbit/s
Mean time between failures (MTBF)
100000 h

Power

Input current
1 A
Input voltage
12 - 48 V
Power plug type
Type M

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
120 W

Other features

Terminal block port
Yes

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 90 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
148 mm
Depth
134 mm
Height
25 mm
Weight
650 g

Packaging content

Quick start guide
Yes

Packaging data

Terminal block included
Yes
Package width
173 mm
Package depth
30 mm
Package height
92 mm
Package weight
930 g

Certificates

Certification
CE, FCC, RoHS

Logistics data

Master (outer) case width
335 mm
Master (outer) case length
363 mm
Master (outer) case height
475 mm
Harmonized System (HS) code
85176990
Products per master (outer) case
10 pc(s)
