StarTech.com HPE JG325B Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM HPE 4200, 12902, FlexFabric

StarTech.com HPE JG325B Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM HPE 4200, 12902, FlexFabric

Name: StarTech.com HPE JG325B Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 85...
Brand: StarTech.com
SKU: JG325B-ST
Price: 454.72 EUR
Availability: OutOfStock

40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty

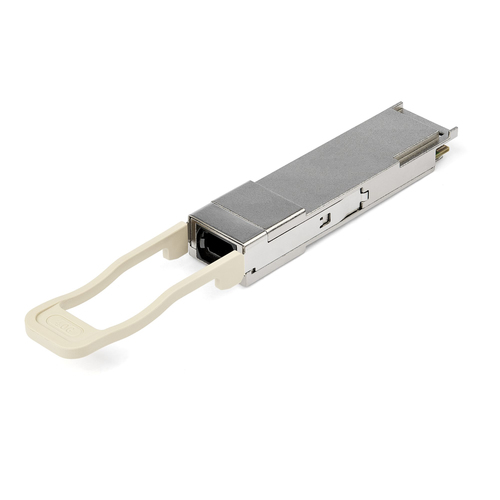

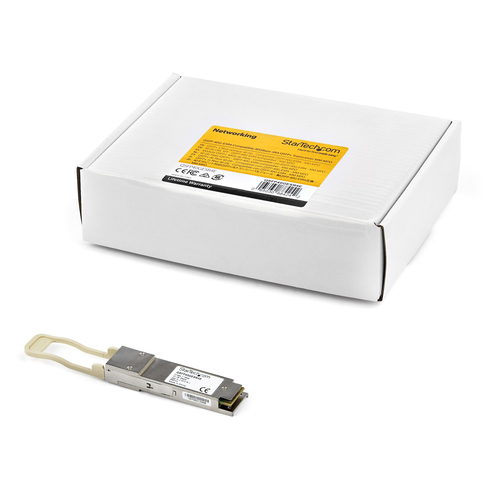

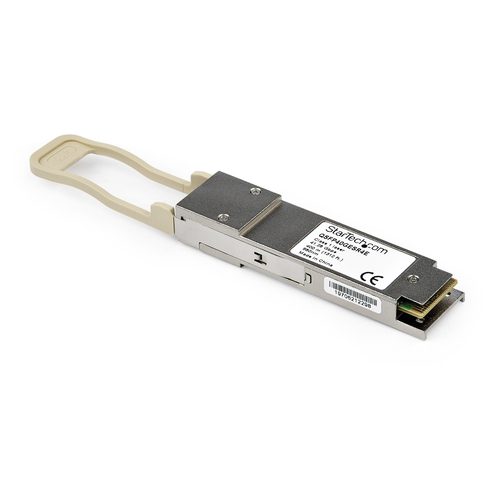

The JG325B-ST is an HPE JG325Bcompatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode
• Connection Type: MPO
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 95,832,027 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: JG325B-ST

Manufacturer: StarTech.com

RRP Price €454.72

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

QSFP+

Multi-mode fiber (MMF) supported

Yes

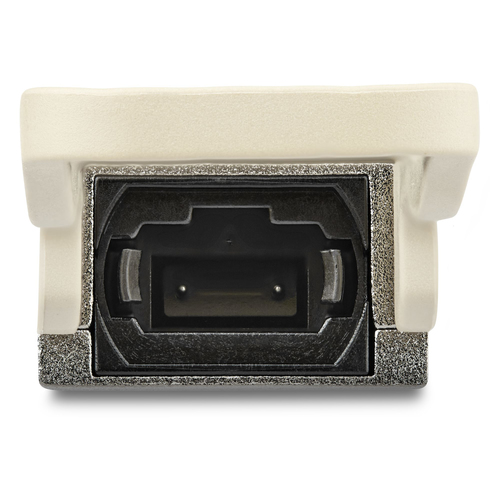

Fiber optic connector

MPO

SFP transceiver standard

SR4

Maximum transfer distance

150 m

Wavelength

850 nm

Fiber ethernet cabling technology

40GBASE

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

95832027 h

Brand compatibility

Compatible products

JG325B

Weight & dimensions

Width

122 mm

Depth

18.6 mm

Height

8.5 mm

Weight

37.5 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

120 mm

Package depth

205 mm

Package height

35 mm

Package weight

60 g

Logistics data

Master (outer) case width

120 mm

Master (outer) case length

205 mm

Harmonized System (HS) code

85369010

Master (outer) case height

35 mm

Products per master (outer) case

1 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.0375 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
