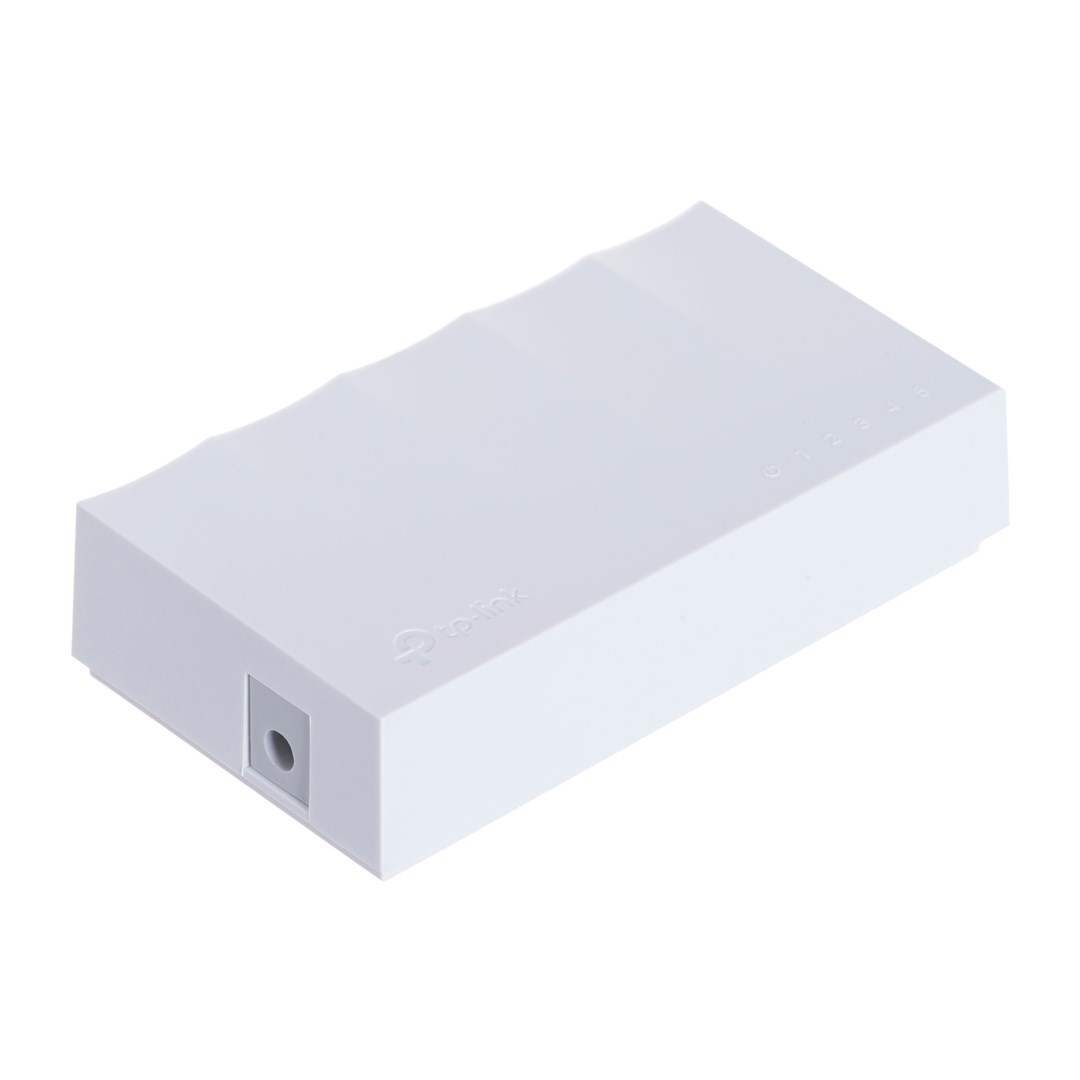

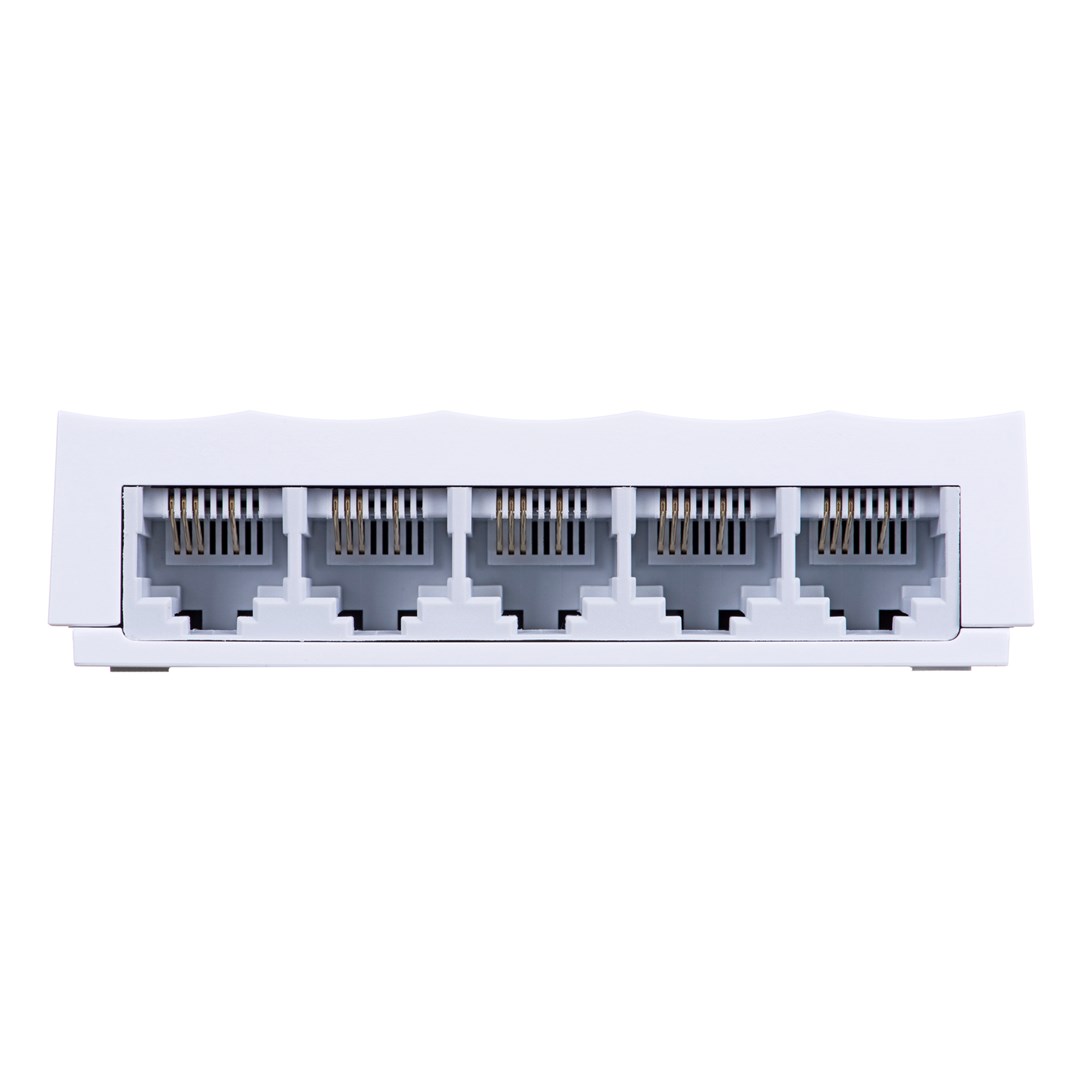

TP-Link LS1005 network switch Unmanaged Fast Ethernet (10/100) White

200 IN STOCK

SKU: LS1005

Manufacturer: TP-Link TP-Link

RRP Price €6.12

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)

Network

Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
0.7 Mpps
MAC address table
2000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
2000

Design

Rack mounting
No
Product colour
White
Housing material
Plastic
International Protection (IP) code
IP20, IP40
Wall mountable
No

Performance

Fanless
Yes

Power

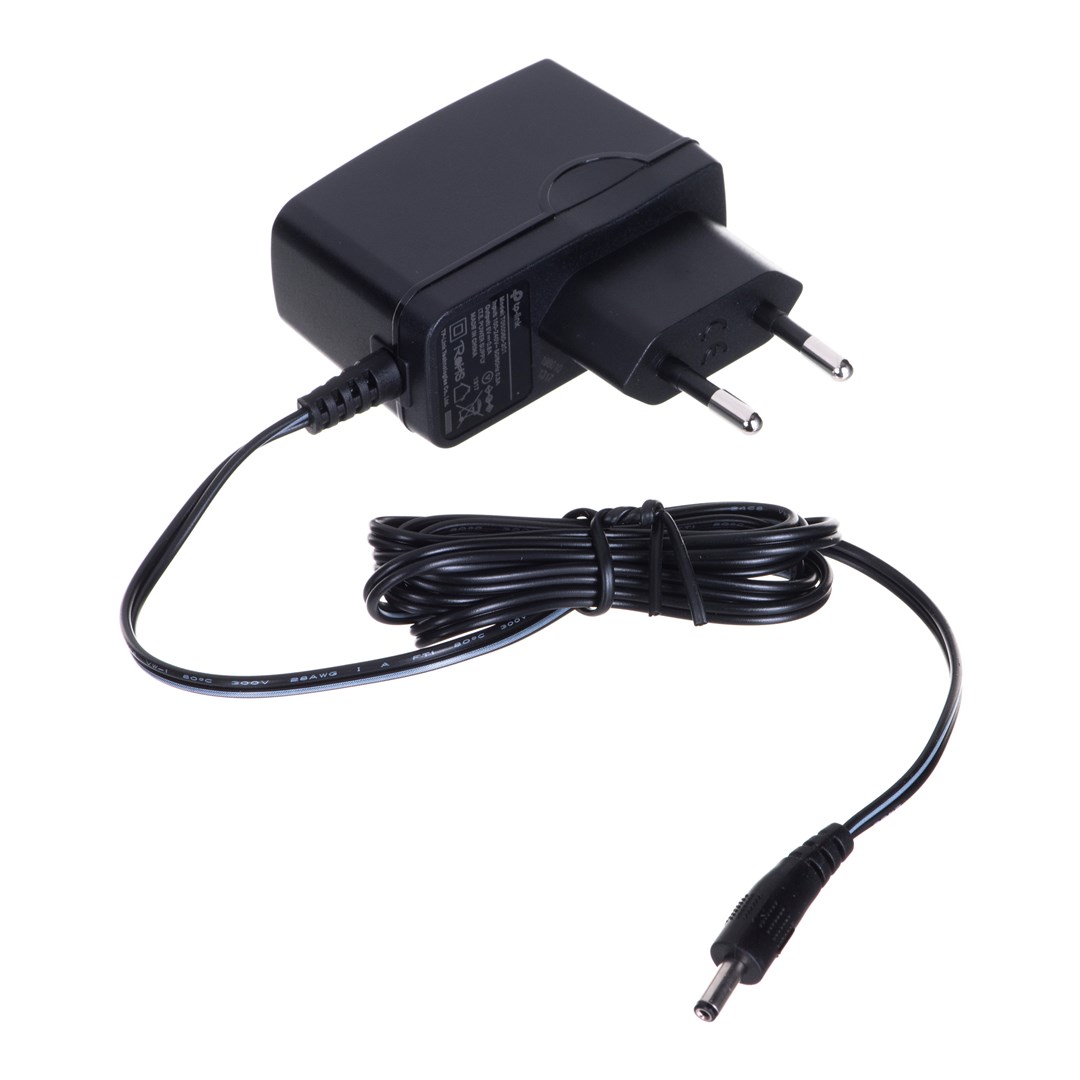

Power supply included
Yes
DC input voltage
5 V
Input current
0.6 A
Power consumption (max)
1.65 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
5.627 BTU/h

Weight & dimensions

Width
83.6 mm
Depth
45.7 mm
Height
22.8 mm

Packaging content

Quick start guide
Yes

Packaging data

Package type
Box

Certificates

Certification
CE, RoHS

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
