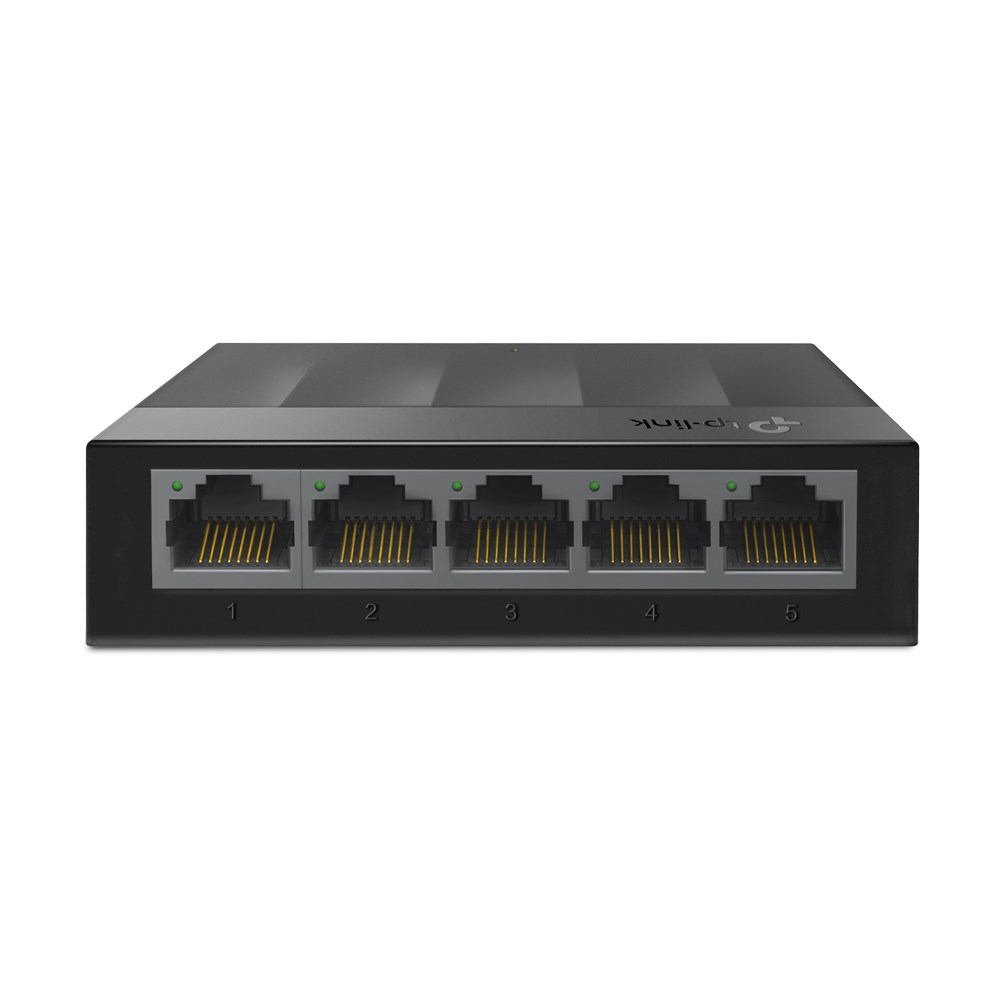

TP-Link LS1005G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

663 IN STOCK

SKU: LS1005G

Manufacturer: TP-Link TP-Link

RRP Price €12.34

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.4 Mpps
MAC address table
2000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
16000
Packet buffer memory
1.5 MB

Design

Rack mounting
No
Product colour
Black
Housing material
Plastic
LED indicators
Yes
International Protection (IP) code
IP20, IP40
Wall mountable
Yes

Power

Power supply included
Yes
DC input voltage
5 V
Input current
0.6 A
Power consumption (max)
3.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
12.617 BTU/h

Weight & dimensions

Width
90 mm
Depth
72 mm
Height
23 mm

Packaging content

Quick start guide
Yes

Packaging data

Package type
Box

Certificates

Certification
CE, FCC, RoHS

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
