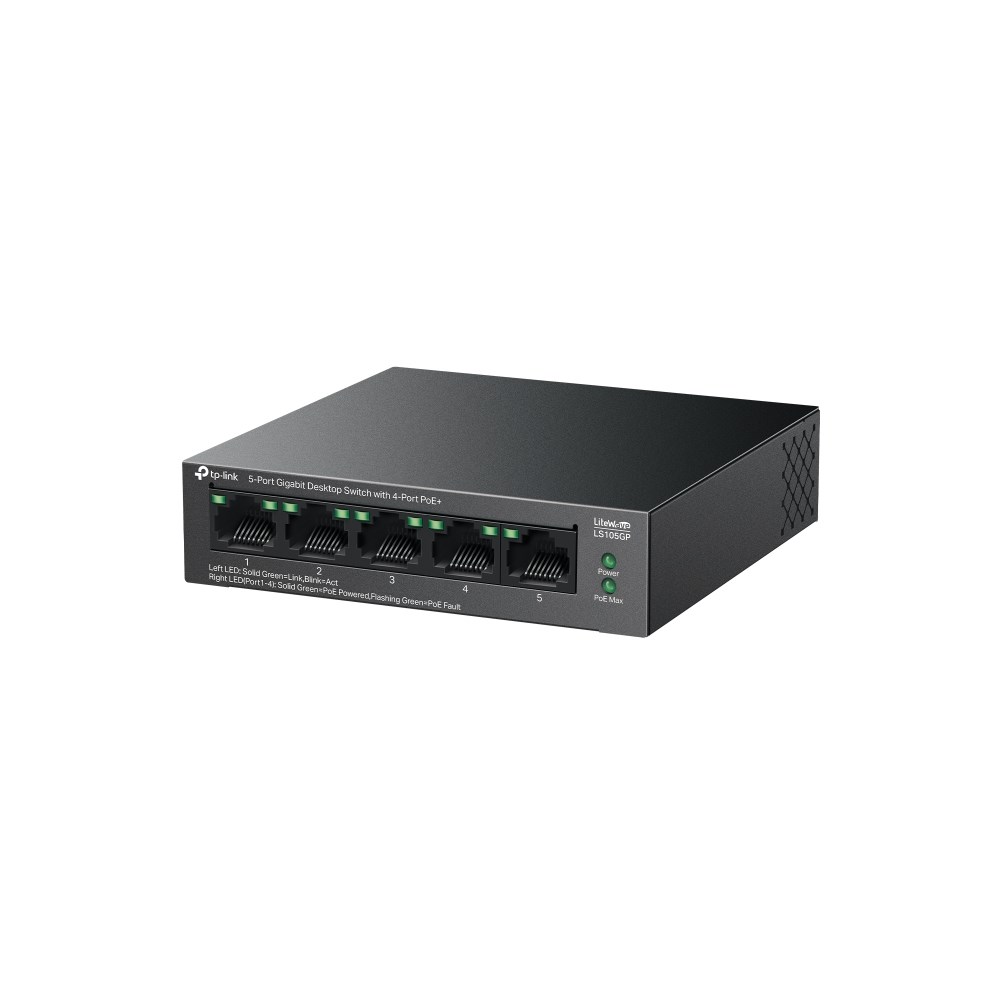

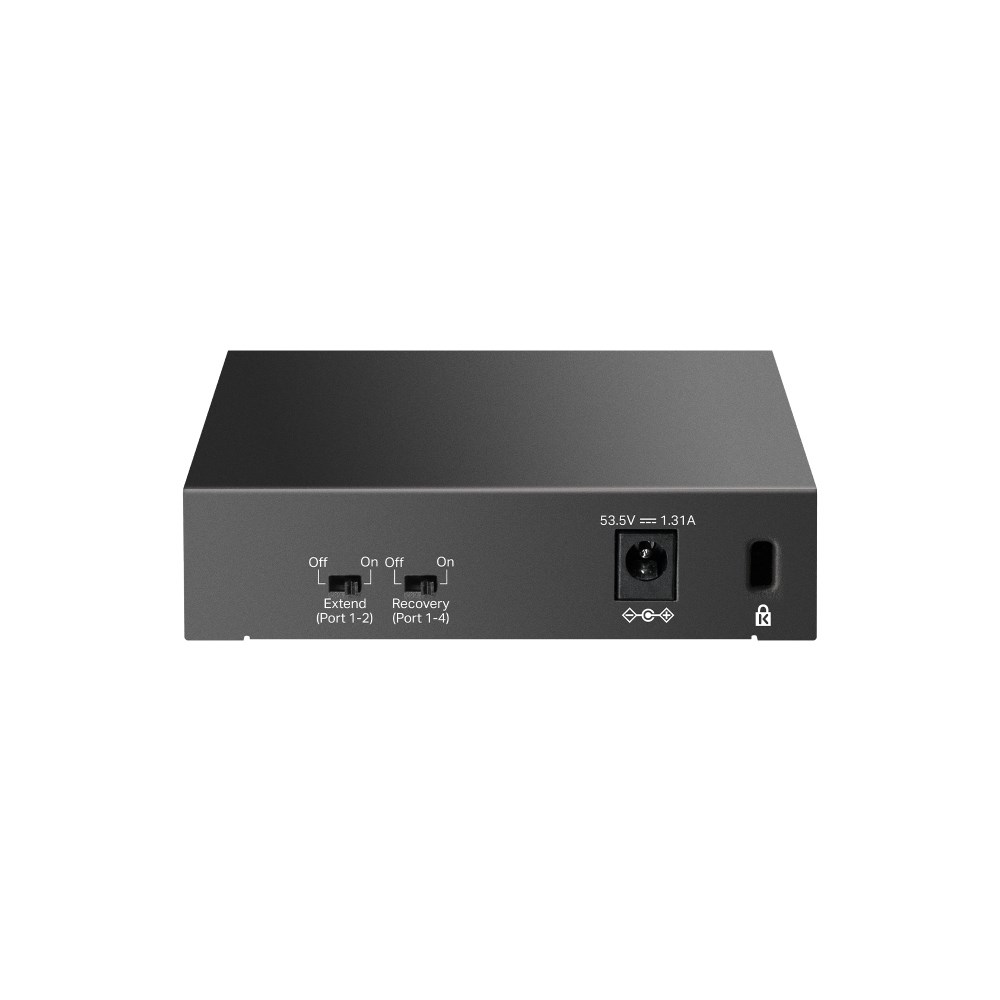

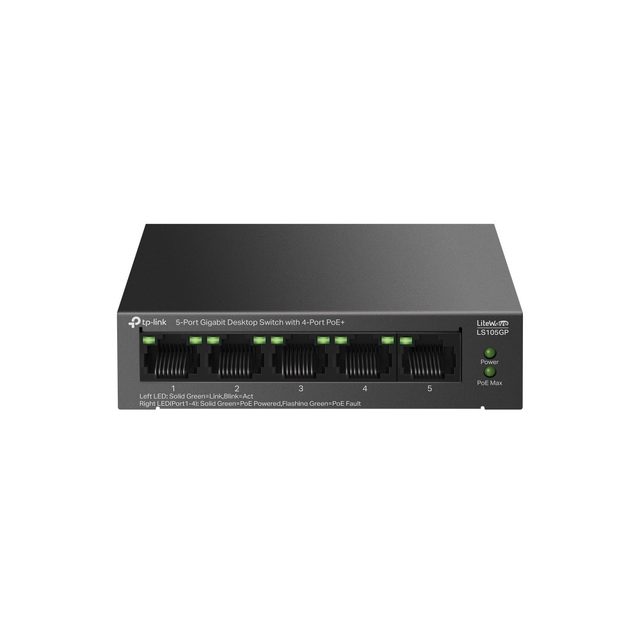

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+

Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

38 IN STOCK

SKU: LS105GP

Manufacturer: TP-Link TP-Link

RRP Price €29.07

Specifications

Management features

Switch type
Unmanaged
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Cable types supported
Cat3, Cat5e, Cat4, Cat5
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Store-and-forward
Yes
Jumbo frames
16000

Security

IGMP snooping
Yes

Design

Product colour
Black
LED indicators
Yes

Power

Power source
DC/PoE
Power supply included
Yes
AC input voltage
220 V
AC input frequency
50 Hz
DC input voltage
53.5 V
Power consumption (max)
74.46 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
65 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
253.16 BTU/h

Weight & dimensions

Width
99.8 mm
Depth
98 mm
Height
25 mm

Packaging content

User guide
Yes

Packaging data

Package type
Box

Certificates

Certification
CE, FCC, RoHS

Accessories

License
