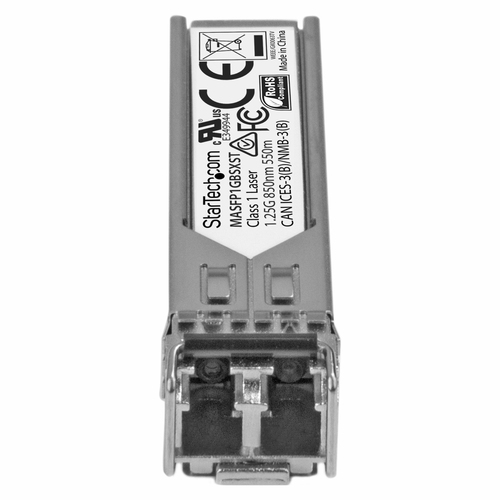

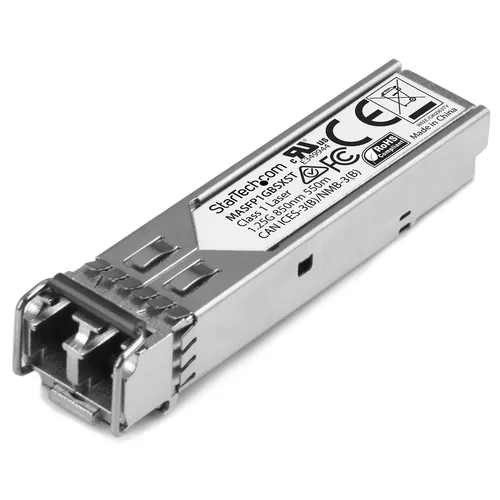

StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX~Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco Meraki MS225, MX400, MS250

StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX~Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco Meraki MS225, MX400, MS250

Name: StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX~Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX...
Brand: StarTech.com
SKU: MASFP1GBSXST
Price: 38.22 EUR
Availability: InStock

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550m (1804 ft)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

24 IN STOCK

SKU: MASFP1GBSXST

Manufacturer: StarTech.com

RRP Price €38.22

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1250 Mbit/s

Interface type

SFP

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

550 m

Wavelength

850 nm

Networking standards

IEEE 802.3z

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Housing material

Aluminium

Hot-swap

Yes

Mean time between failures (MTBF)

3381761 h

Power

Power consumption (typical)

1 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

13.7 mm

Depth

56.6 mm

Height

12.5 mm

Weight

14 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

119 mm

Package depth

94 mm

Package height

33 mm

Package weight

42 g

Logistics data

Master (outer) case width

257 mm

Master (outer) case length

305 mm

Harmonized System (HS) code

85369010

Master (outer) case height

200 mm

Products per master (outer) case

100 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.014 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
