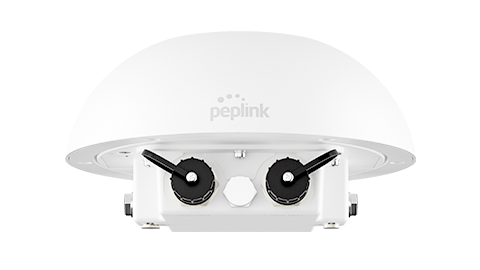

Peplink HD1 Dome Pro wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G White

A refinement in outdoor interconnectivity
The HD1 Dome Pro adapts to the flexible nature of outdoor deployments, offering powerful speeds, with refined Wi-Fi options. The 5G modem, with its embedded cellular antennas, ensures minimal cable loss and offers the finest signal quality.

Wi-Fi as WAN Wi-Fi 6
The Wi-Fi 6 and Wi-Fi as WAN support can optimize your network and provide versatility as and when required. Leverage bandwidth costs and easily expand your network. Experience no more interruptions with SpeedFusion’s hot failover options.

A design that’s made to meet your needs
It’s simple design offers a multitude of installation options. The HD1 Dome Pro includes an M35 screw mount and Ethernet splitter, making it easy for wall or pole mount. If mounting is not needed, simply connect an Ethernet cable and it’s good to go.

Together it works
The HD1 Dome Pro can optimize network performance with its PoE functionality. Leverage the power of SpeedFusion by simply connecting Peplink PoE routers, for a mega-bandwidth channel, with the simplest failover option. Or alternatively, extend the Wi-Fi range by connecting an external access point.

Instant flexibility with the SIM injector
Simply connect an Ethernet cable between the SIM injector^ and the HD1 Dome Pro to manage up to 10 physical SIMs.
With remote network management available via Peplink’s cloud-based management system, InControl 2, accessibility worries are a thing of the past.

20 IN STOCK

SKU: MAX-HD1-DOM-PRO-5GN

Manufacturer: Peplink Peplink

RRP Price €2,761.97

Specifications

WAN connection

Ethernet WAN
Yes
DSL WAN
No
SIM card slot
Yes
3G/4G USB modem compatibility
No

Wireless LAN features

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Network

Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3af, IEEE 802.3at
Port forwarding
Yes

Mobile network

Mobile network generation
5G
4G standard
LTE

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
USB port
No

Management features

MIMO
Yes

Security

Security algorithms
256-bit AES, WPA, WPA2
Firewall
Yes
Network address translation (NAT)
Yes

Protocols

DHCP server
Yes
Universal Plug and Play (UPnP)
Yes

Design

Product colour
White
Housing material
Metal
International Protection (IP) code
IP67
Product type
Rack/wall router

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Packaging content

Mounting kit
Yes

Antenna

Antenna design
Internal
Antenna type
2x2

Power

Power source type
PoE
Power consumption (typical)
20 W

Operational conditions

Operating temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
15 - 95%

Weight & dimensions

Width
110 mm
Depth
110 mm
Height
115 mm
Weight
1.2 kg
