Home > Wireless > Ubiquiti > U7-PRO

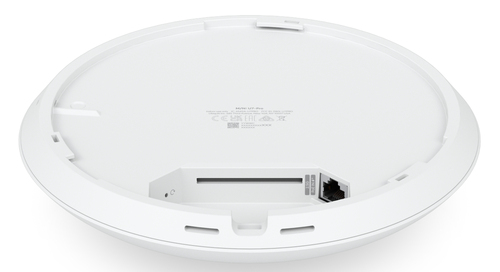

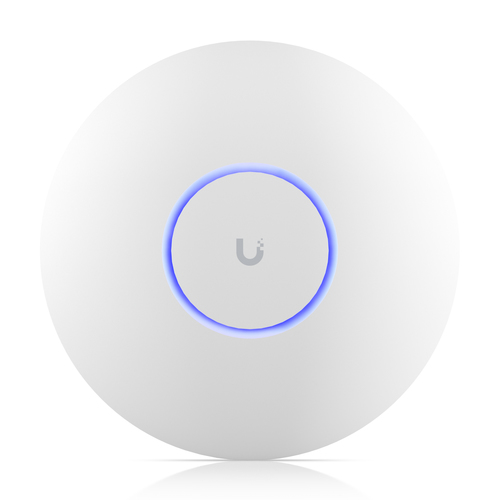

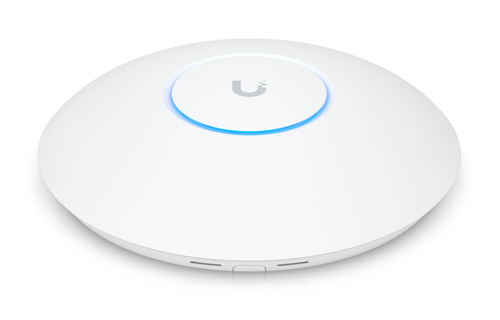

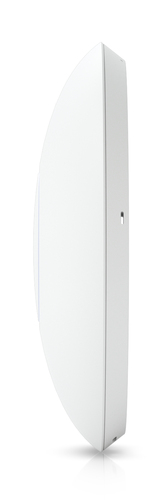

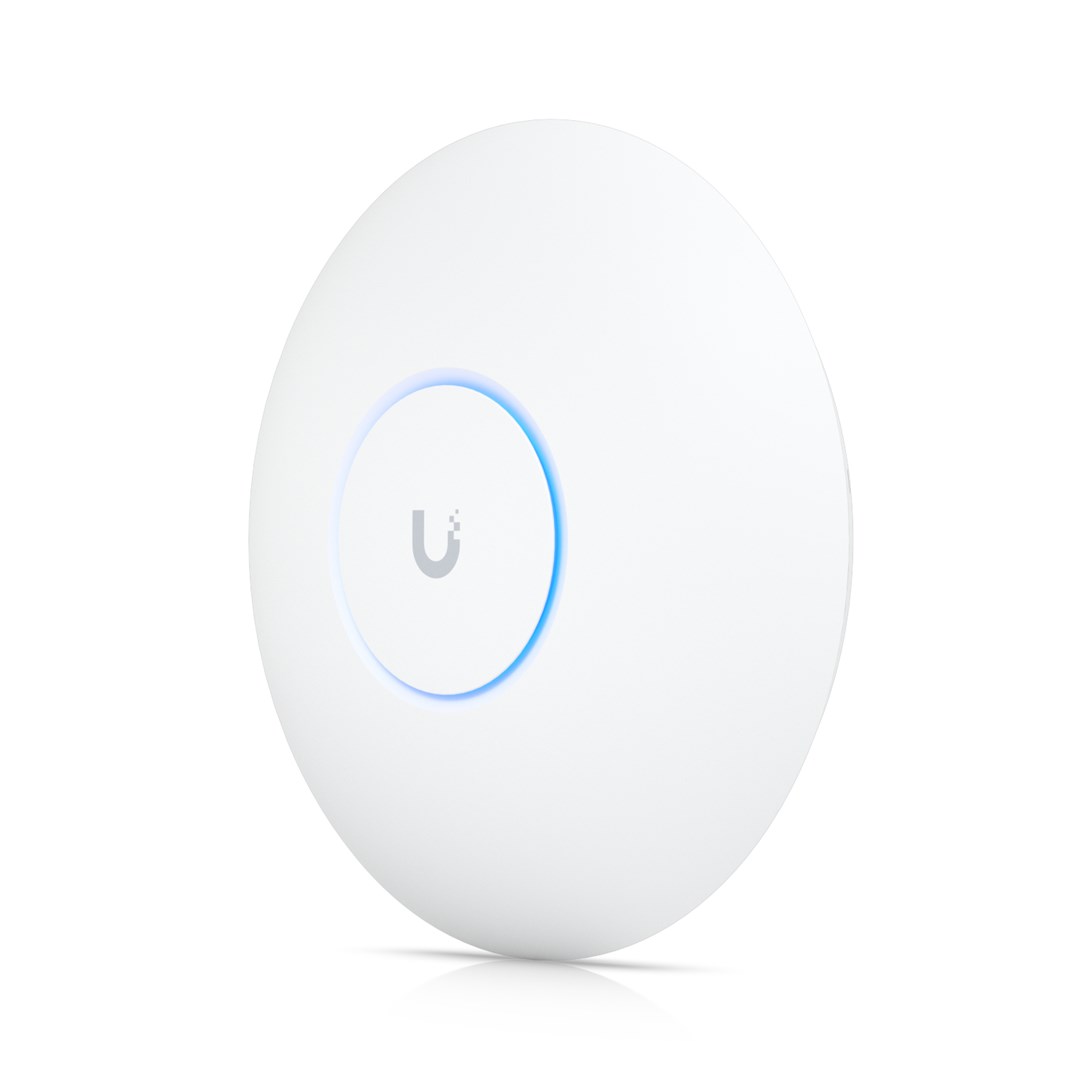

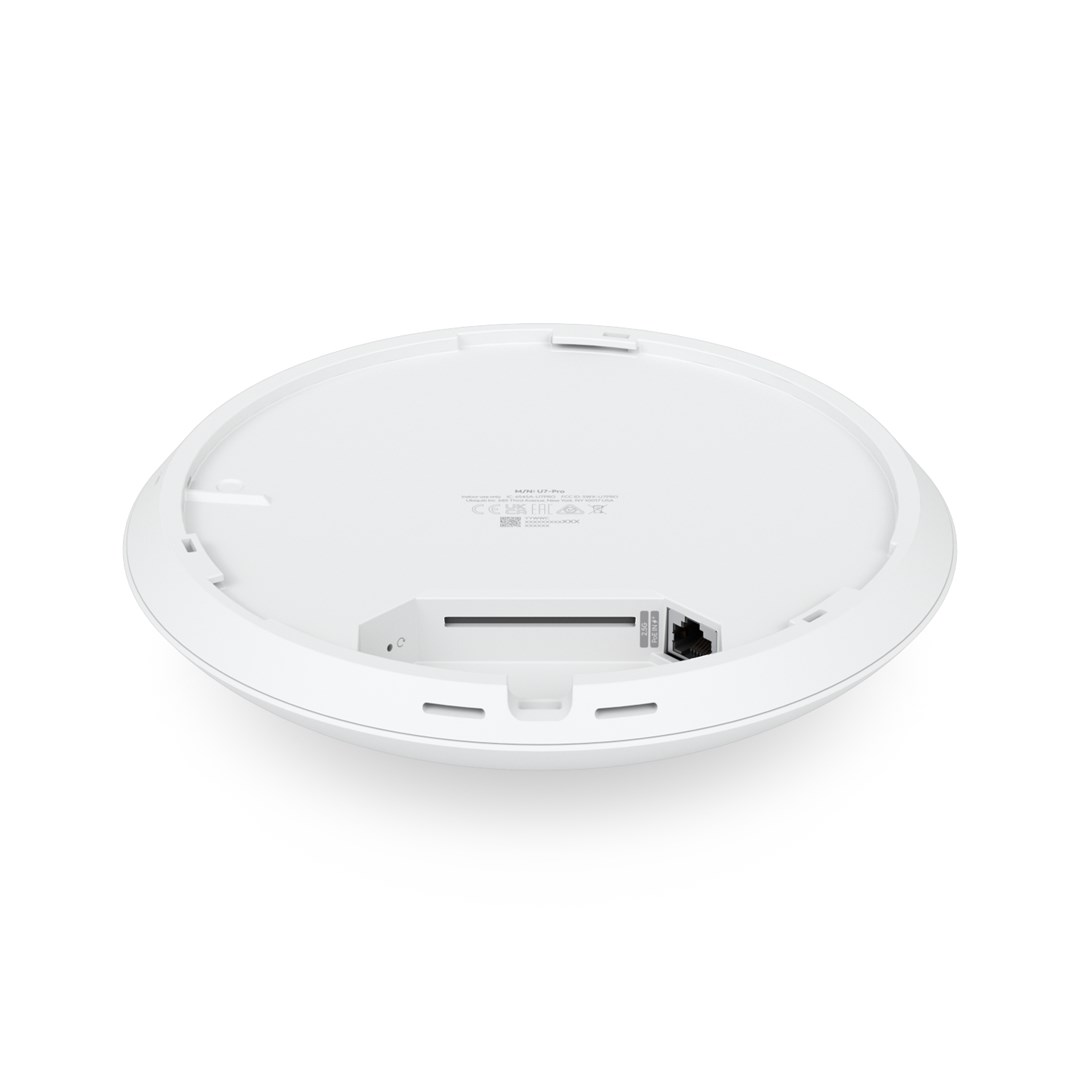

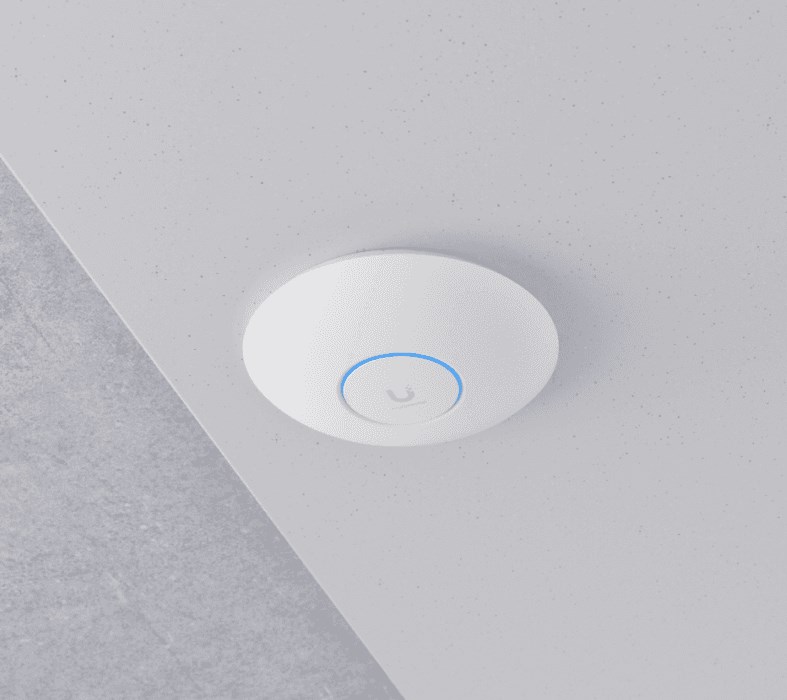

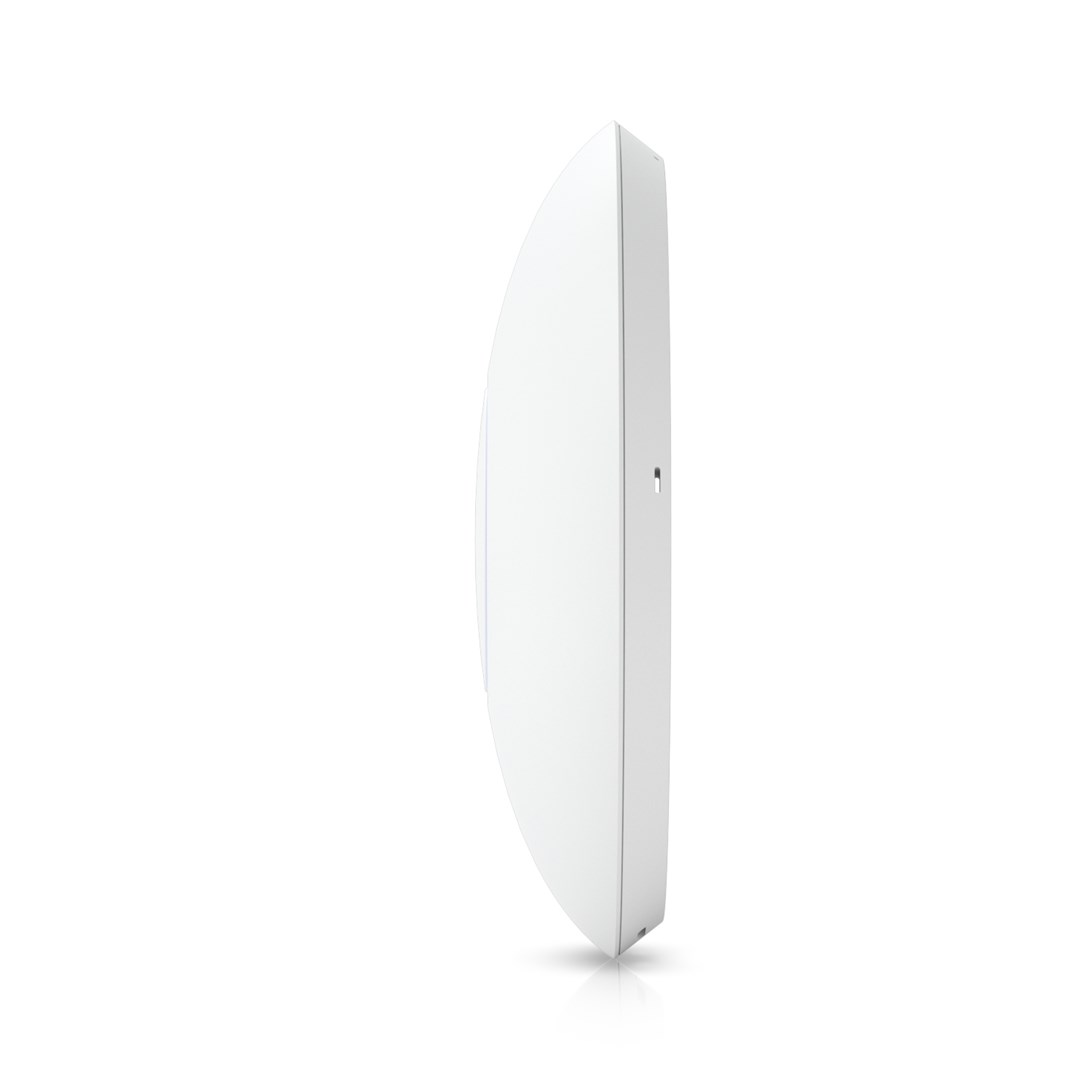

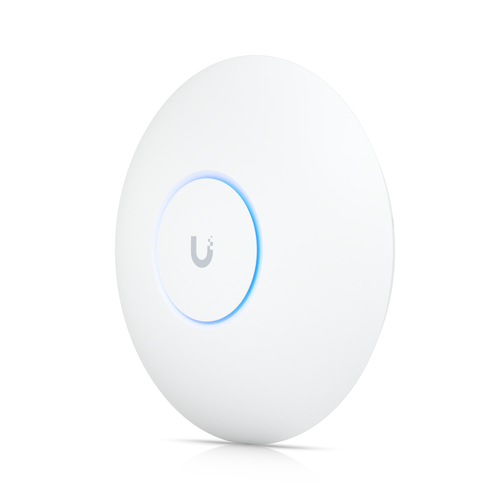

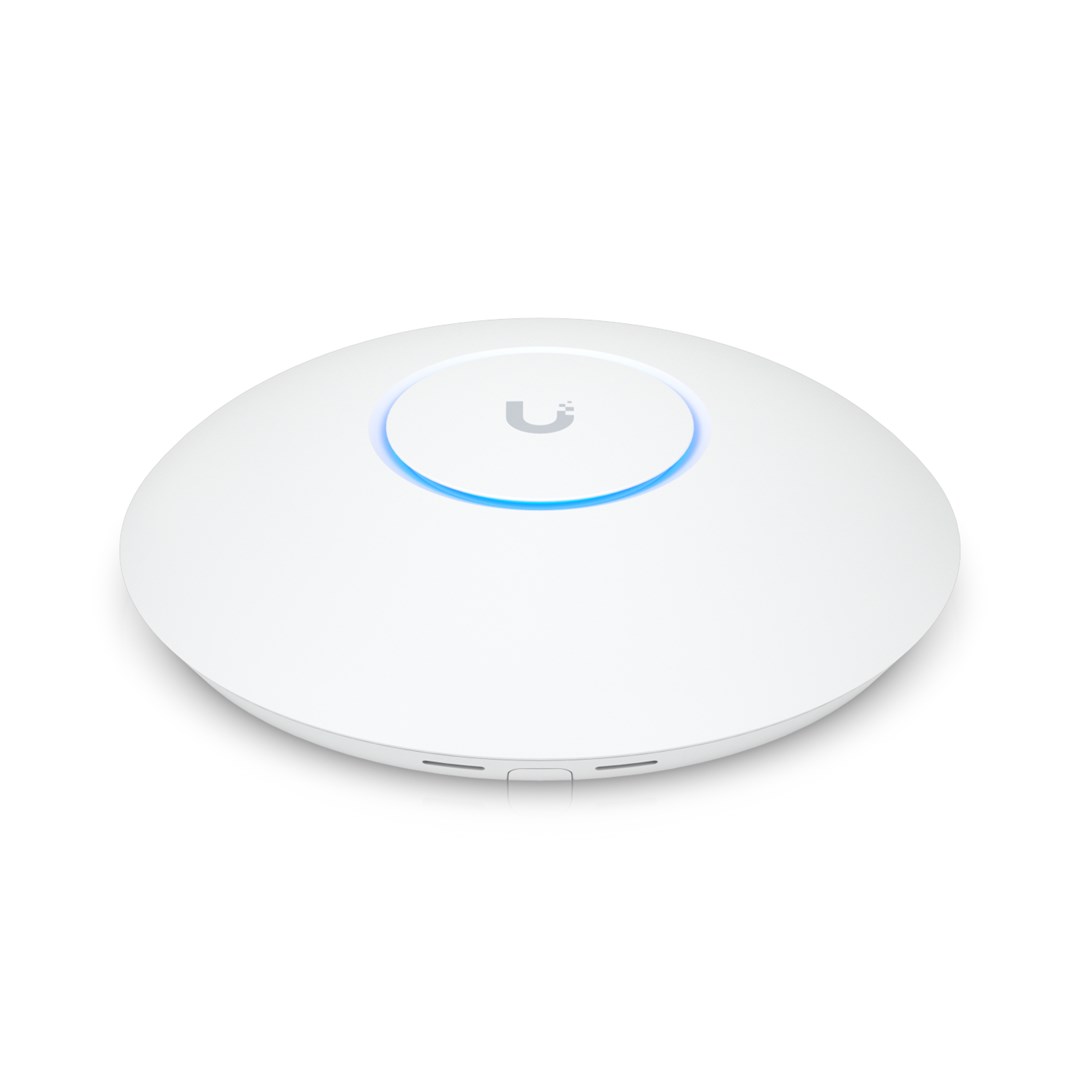

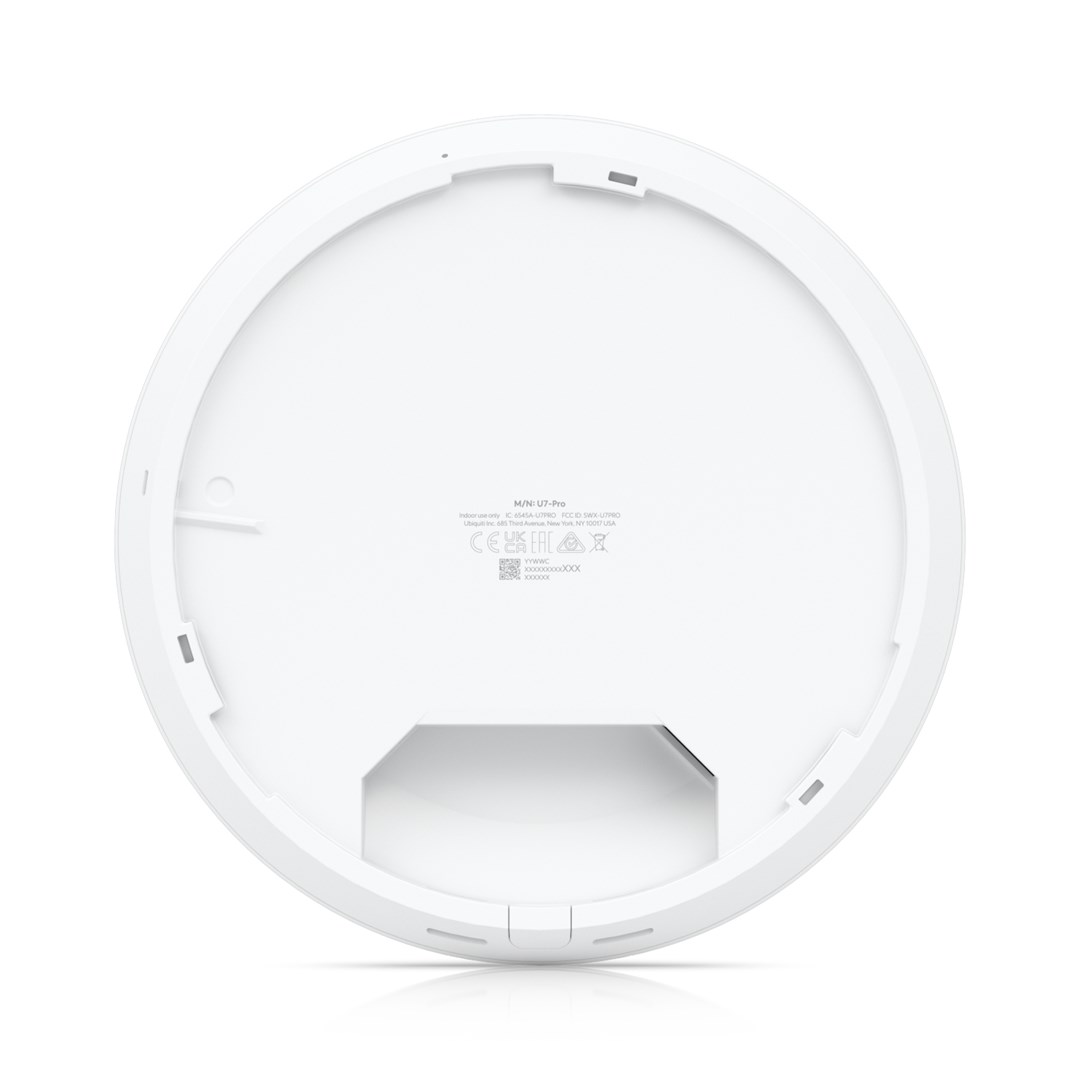

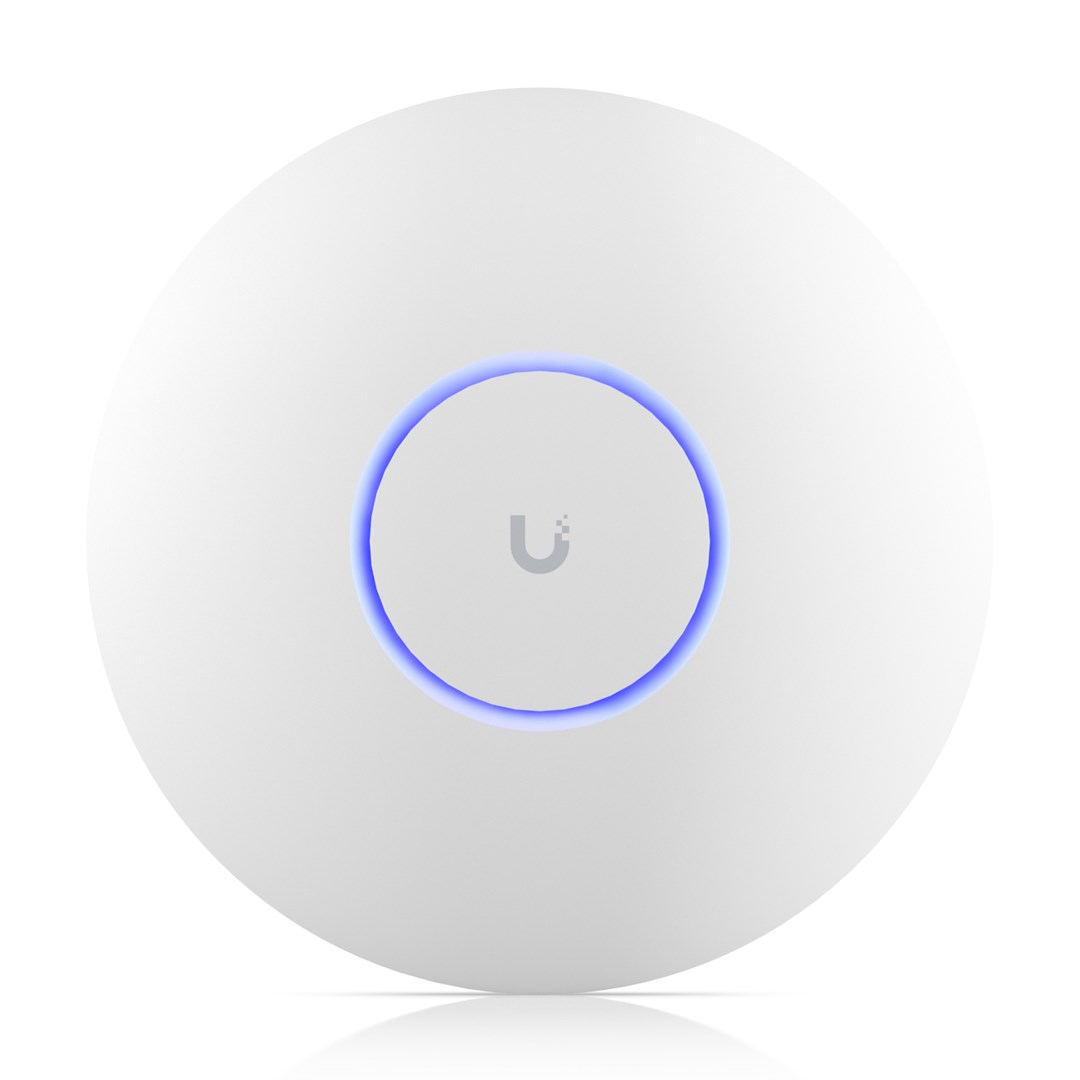

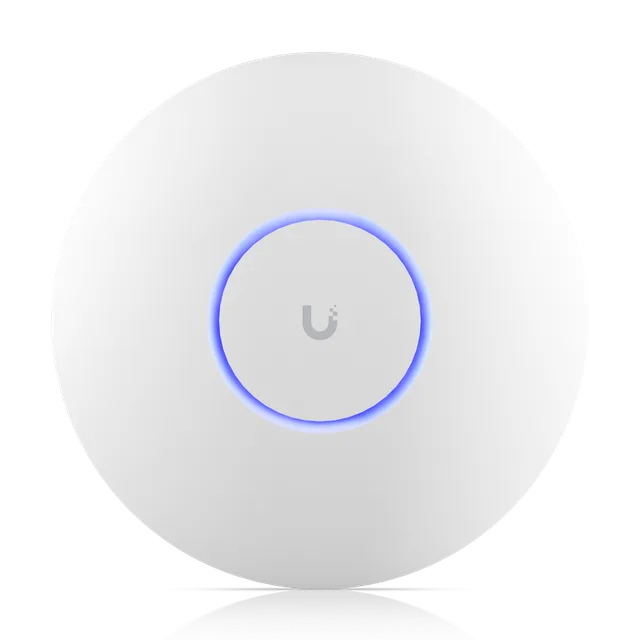

Ubiquiti U7 Pro 5800 Mbit/s White Power over Ethernet (PoE)

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

255 IN STOCK

RRP Price €198.03

  loading...
Register for Discounts

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
6 GHz
Yes
Maximum data transfer rate
5800 Mbit/s
Maximum data transfer rate (2.4 GHz)
688 Mbit/s
Maximum data transfer rate (5 GHz)
4300 Mbit/s
Maximum data transfer rate (6 GHz)
5800 Mbit/s
Ethernet LAN data rates
1000,2500 Mbit/s
Throughput data rate
5765 Mbit/s
Frequency band
2.4 - 6 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3at
Coverage area
140 m²
Number of users
300 user(s)
MIMO
Yes
MIMO type
Multi User MIMO
Fit AP mode features
Hotspot 2.0
Fast roaming
Yes
VLAN support
Yes
Rate limiting
Yes
Band steering
Yes
Quality of Service (QoS) support
Yes
Maximum Tx power (2.4 GHz)
22 dBmW
Maximum Tx power (5 GHz)
26 dBmW
Maximum Tx power (6 GHz)
23 dBmW

Security

Security algorithms
PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
WAN connection
Ethernet (RJ-45)

Power

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
DC voltage range
44 - 57 V
Power consumption (max)
21 W

Design

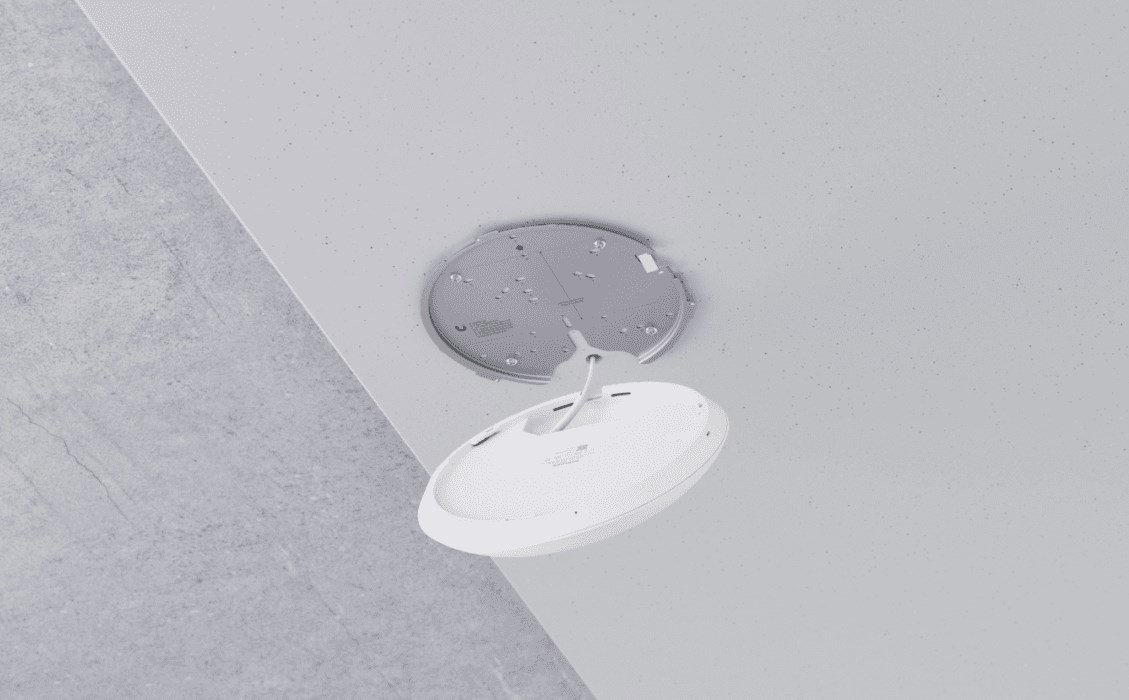

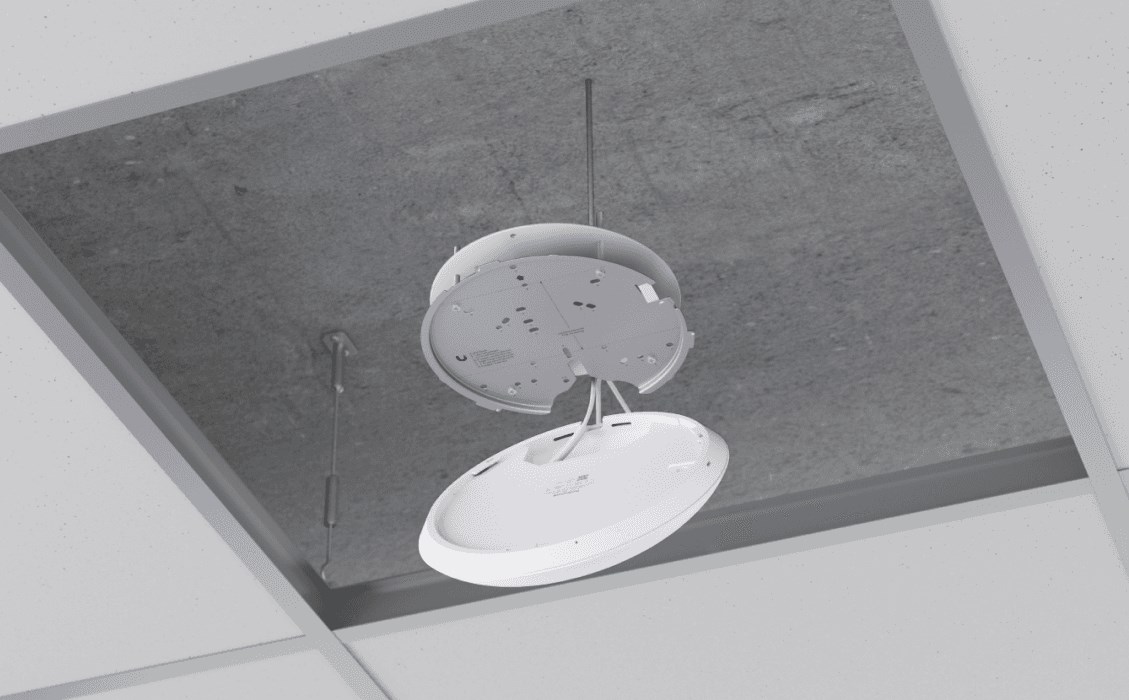

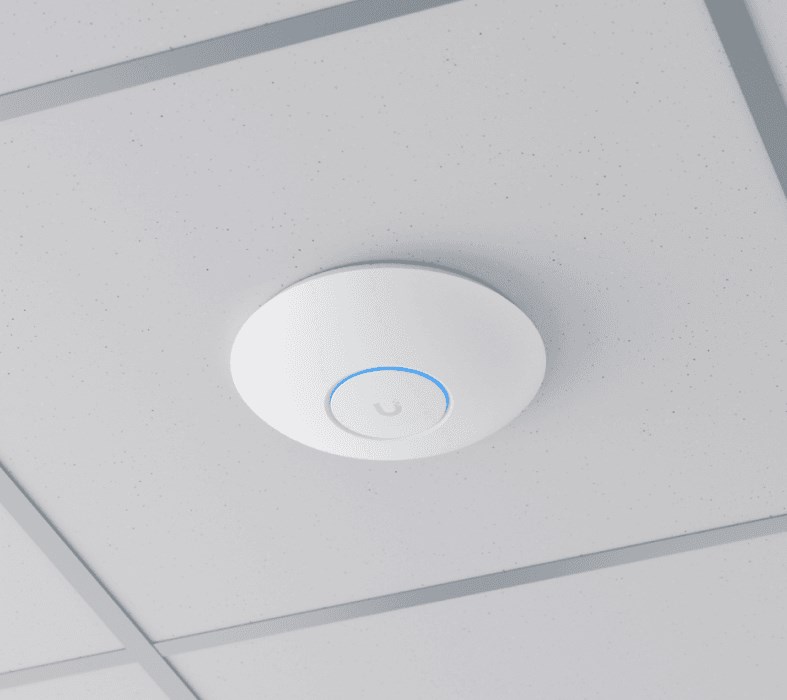

Placement
Ceiling, Wall
Product colour
White
Housing material
Metal, Polycarbonate (PC)
Reset button
Yes
LED indicators
Yes

Antenna

Antenna type
Internal
Antenna gain level (max)
6 dBi

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width
206 mm
Depth
206 mm
Height
46 mm
Weight
680 g

Packaging content

Quantity per pack
1 pc(s)

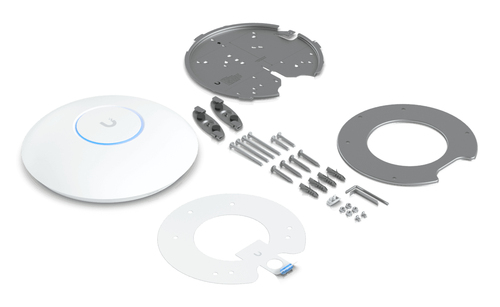

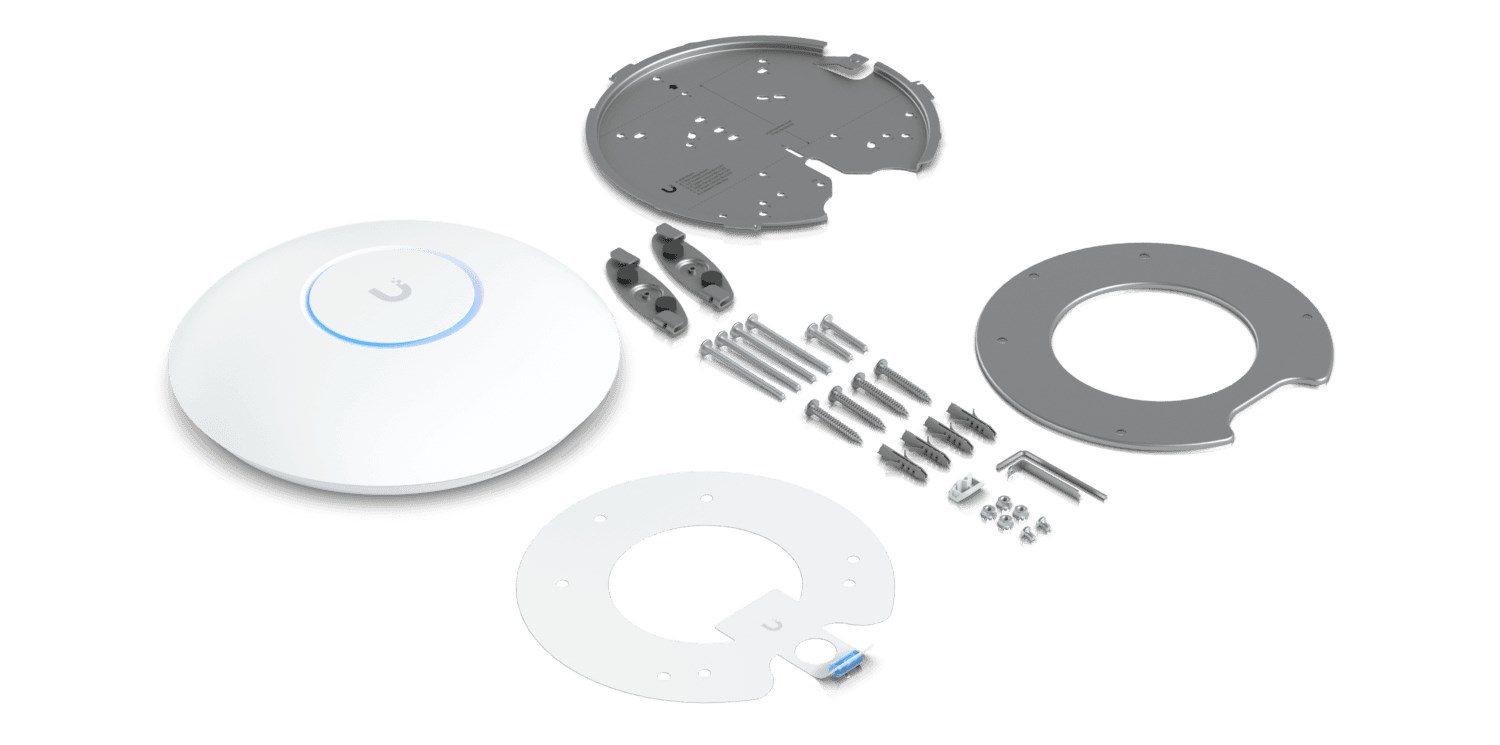

Mounting kit
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 60 °C

Sustainability

Sustainability compliance
Yes

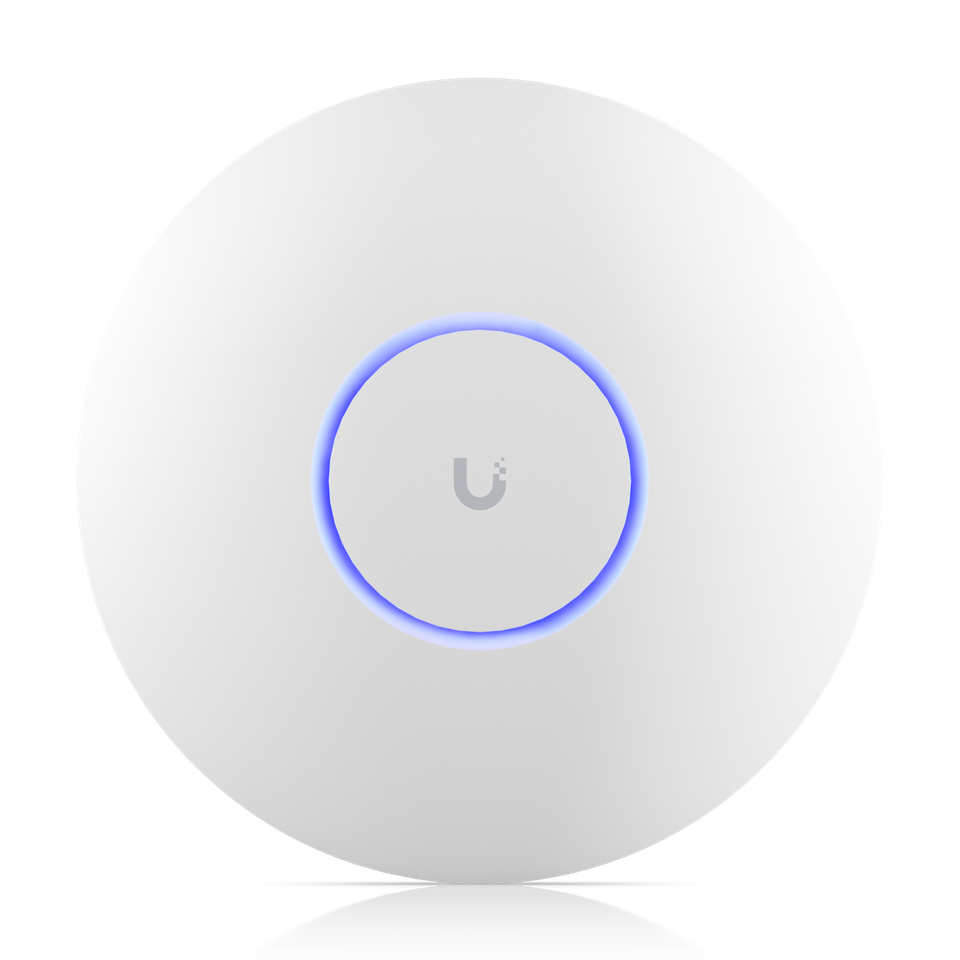

Ubiquiti U7 Pro 5800 Mbit/s White Power over Ethernet (PoE)

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

5

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

250

Weight

0.68 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Featured Products

NG120 HARDWARE APPLIANCE - Coming Soon in 2025
NG120

€558.60
NG320 HARDWARE APPLIANCE - Coming September 2025
NG320

€1,057.00

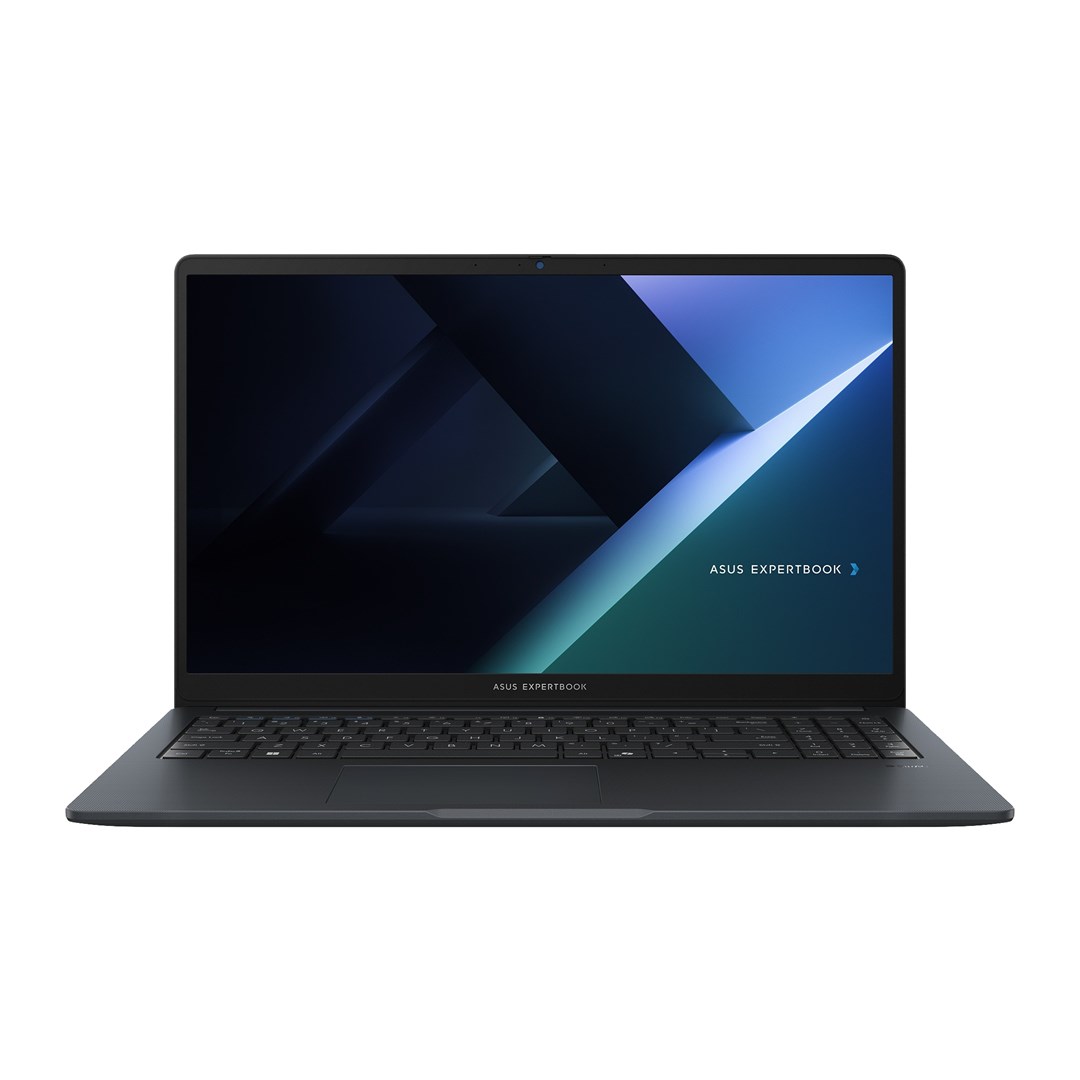

ASUS ExpertBook B1 B1503CVA-S71619X laptop Intel® Core™ i5 i5-1335U 39.6 cm (15.6") Full HD 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Black, Grey
B1503CVA-S71619X

€679.53
1U Redundant Server - Certified & Optimized for IDEA Software
IDEA-SR200

€6,499.99
1U Server - Certified & Optimized for IDEA Software
IDEA-SR100

€4,999.99
Microsoft Windows Server 2025 Standard 1 license(s)
EP2-25187

€1,087.75
DUAL-BAND WI-FI 7 ACCESS POINT
GWN7670

€141.75
NG700 HARDWARE APPLIANCE - Coming September 2025
NG700

€0.00
NG521 HARDWARE APPLIANCE - Coming Soon in 2025
NG521

€1,981.00
NG520 HARDWARE APPLIANCE - Coming Soon in 2025
NG520

€1,673.00
Cisco 9178 Series CW9178I-RTG wireless access point 24000 Mbit/s White Power over Ethernet (PoE)
CW9178I-RTG

€1,564.28
Cisco 9178 Series CW9178I-CFG wireless access point 24000 Mbit/s White Power over Ethernet (PoE)
CW9178I-CFG++

€1,512.01
Peplink Antenna MAX network antenna SMA antenna SMA 6.6 dBi
ANT-MAX

€366.45
Peplink Transit Pro E wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G Black
MAX-TST-PROE-5GN-T-PRM

€1,182.09
HPE P70335-425 server 2 TB Ultra Micro Tower Intel Xeon E E-2314 2.8 GHz 32 GB DDR4-SDRAM 180 W
P70335-425

€1,141.00

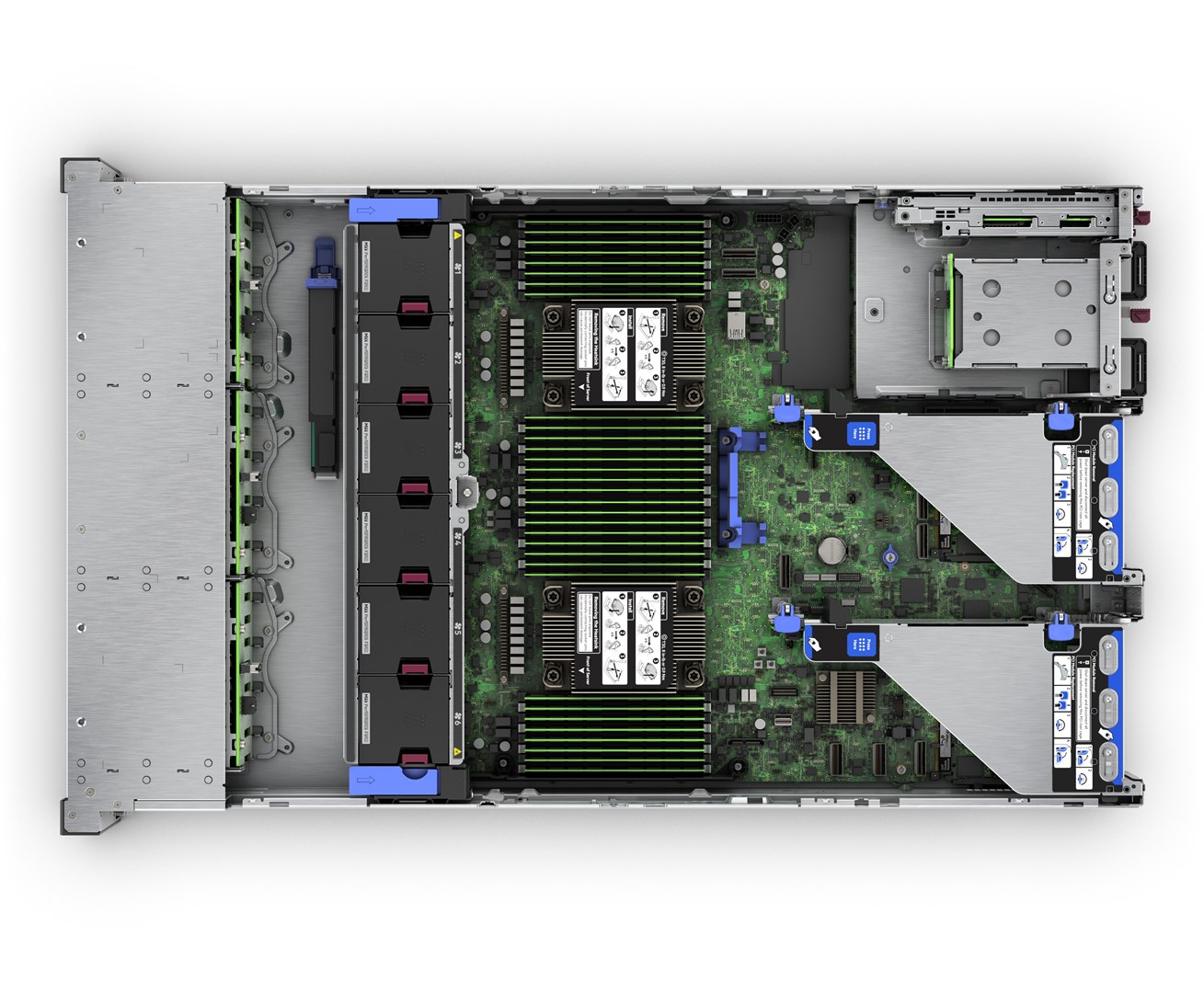

HPE ProLiant DL380 Gen11 server 0 GB Rack (2U) Intel Xeon Silver 4510 2.4 GHz 64 GB DDR5-SDRAM 1000 W
P71675-425

€5,422.20
HPE ProLiant ML110 Gen11 server 4 TB Tower (4.5U) Intel Xeon Bronze 3508U 2.1 GHz 32 GB DDR5-SDRAM 2000 W
P71647-425

€3,036.60

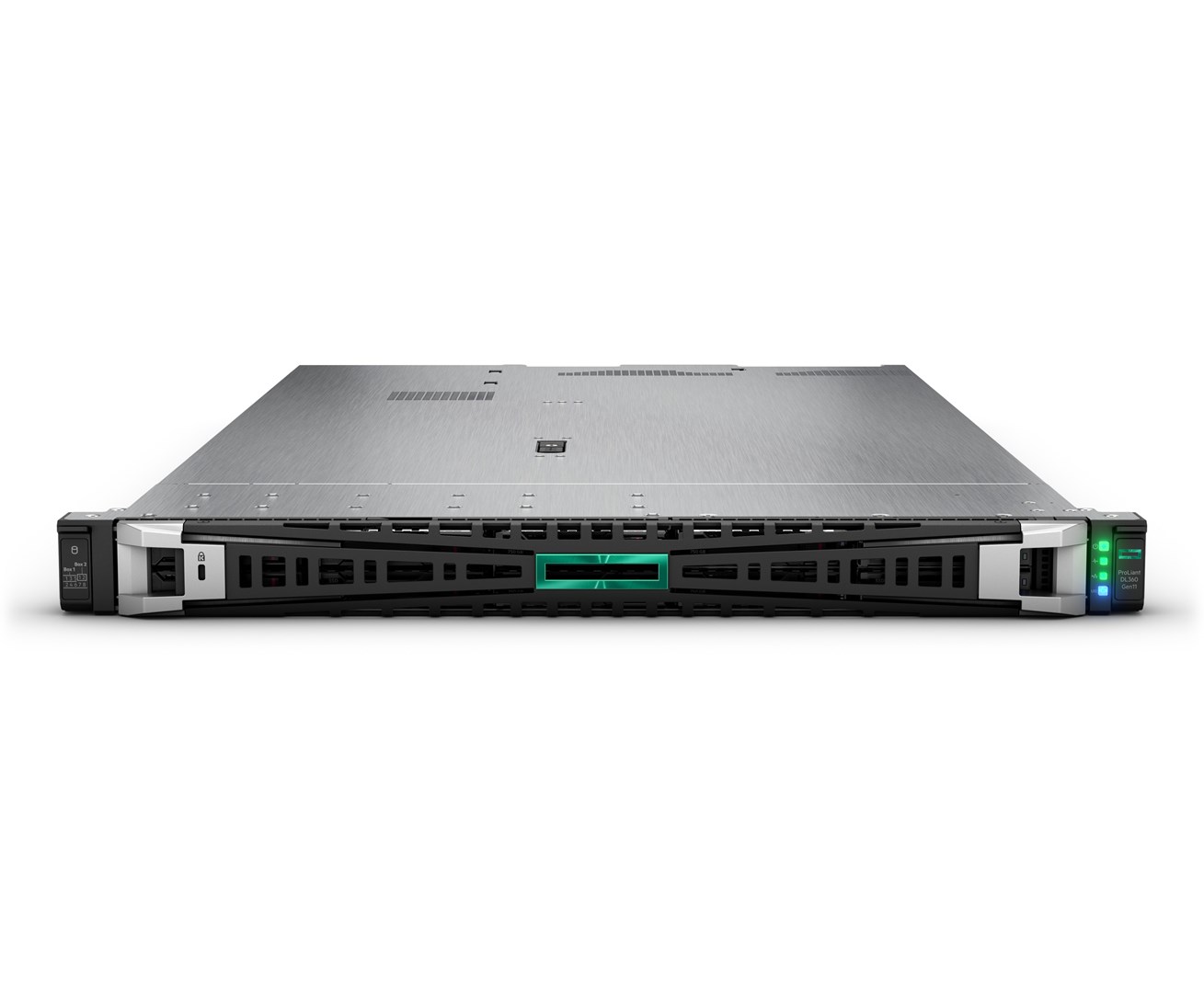

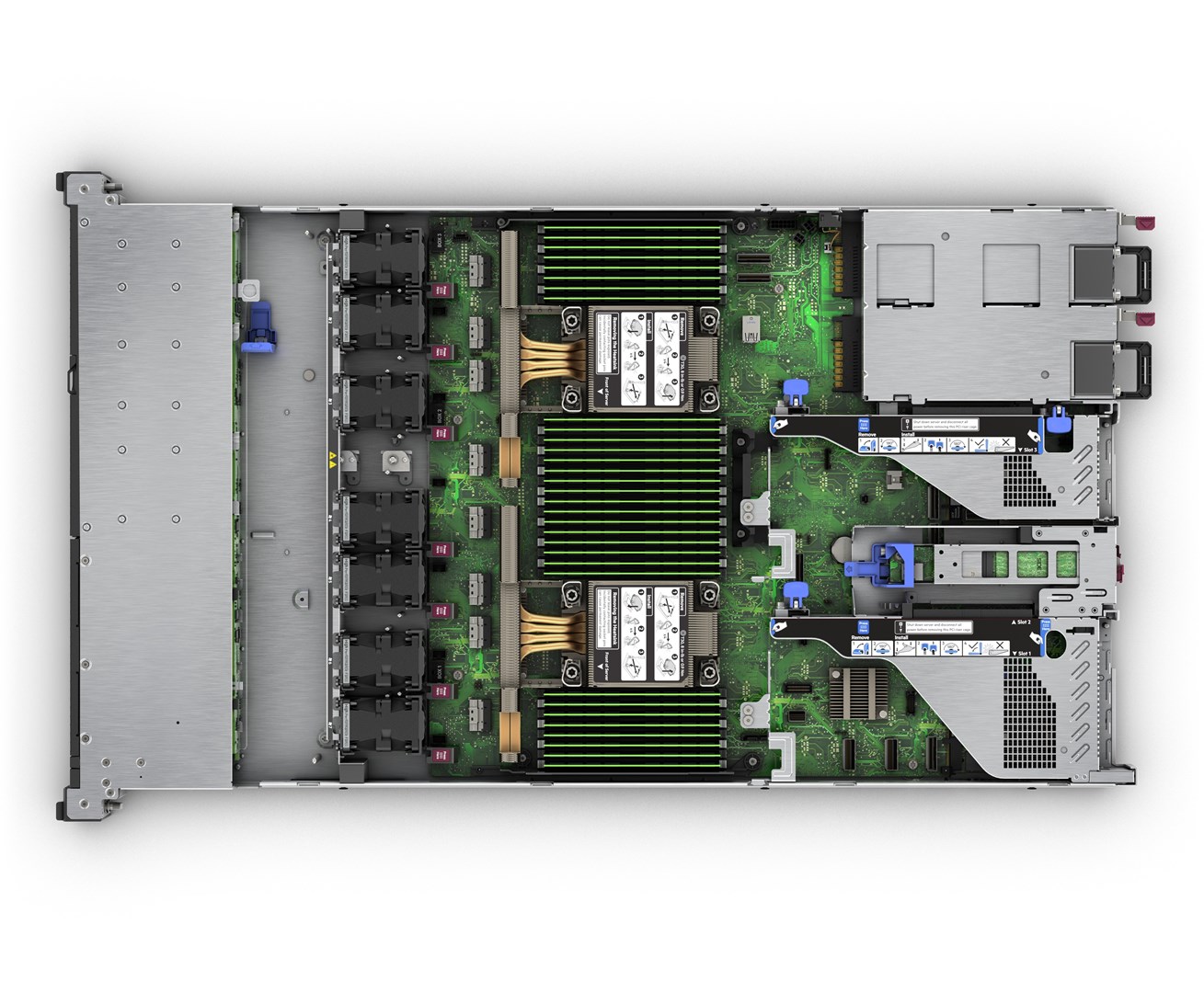

HPE ProLiant DL360 Gen11 server 1.92 TB Rack (1U) Intel Xeon Silver 4510 2.4 GHz 64 GB DDR5-SDRAM 1000 W
P71673-425

€4,916.80

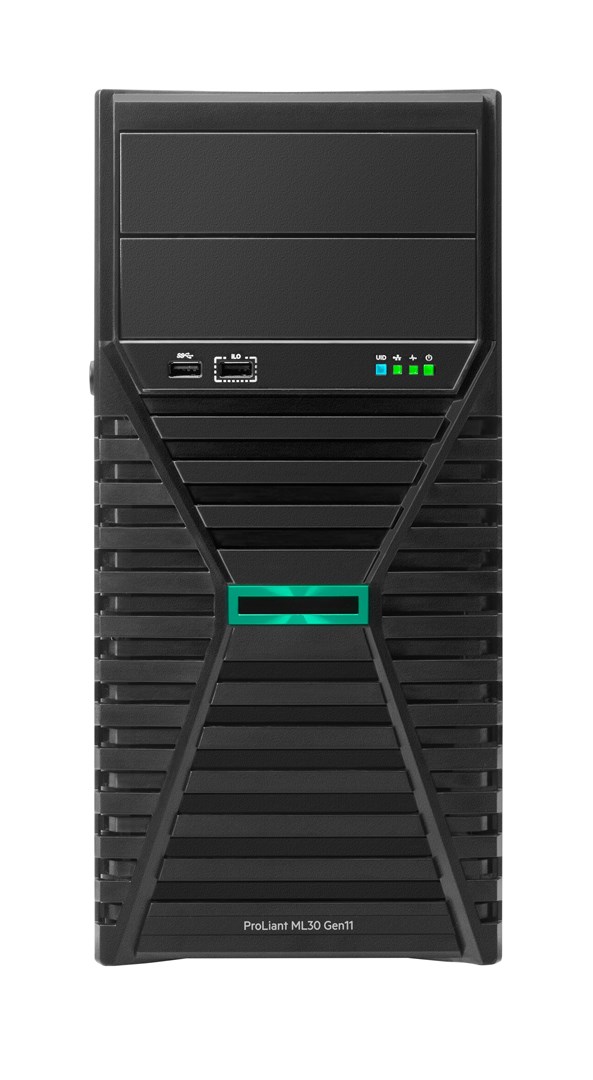

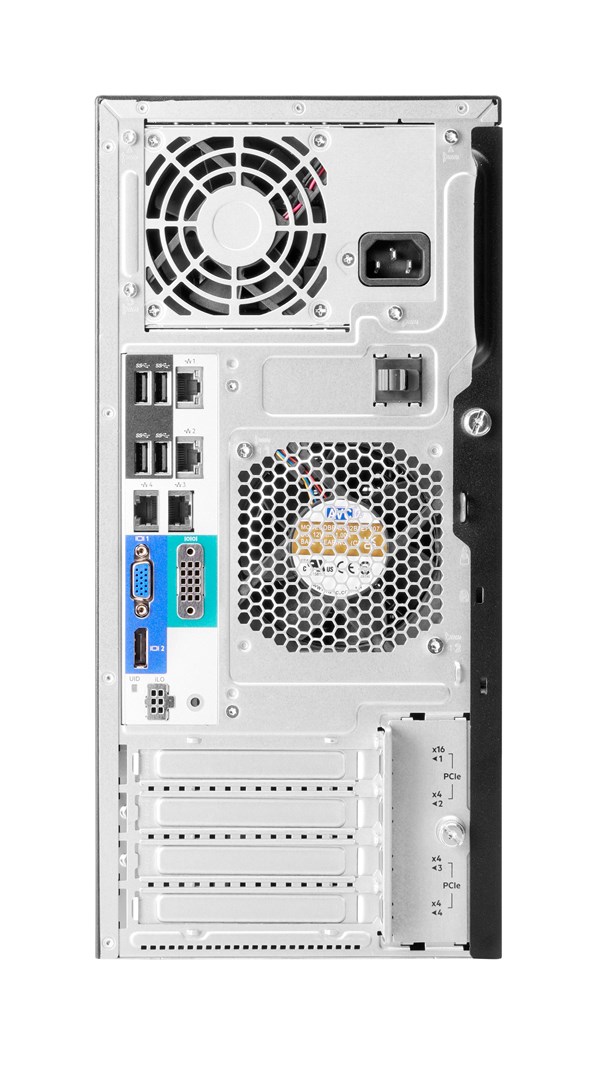

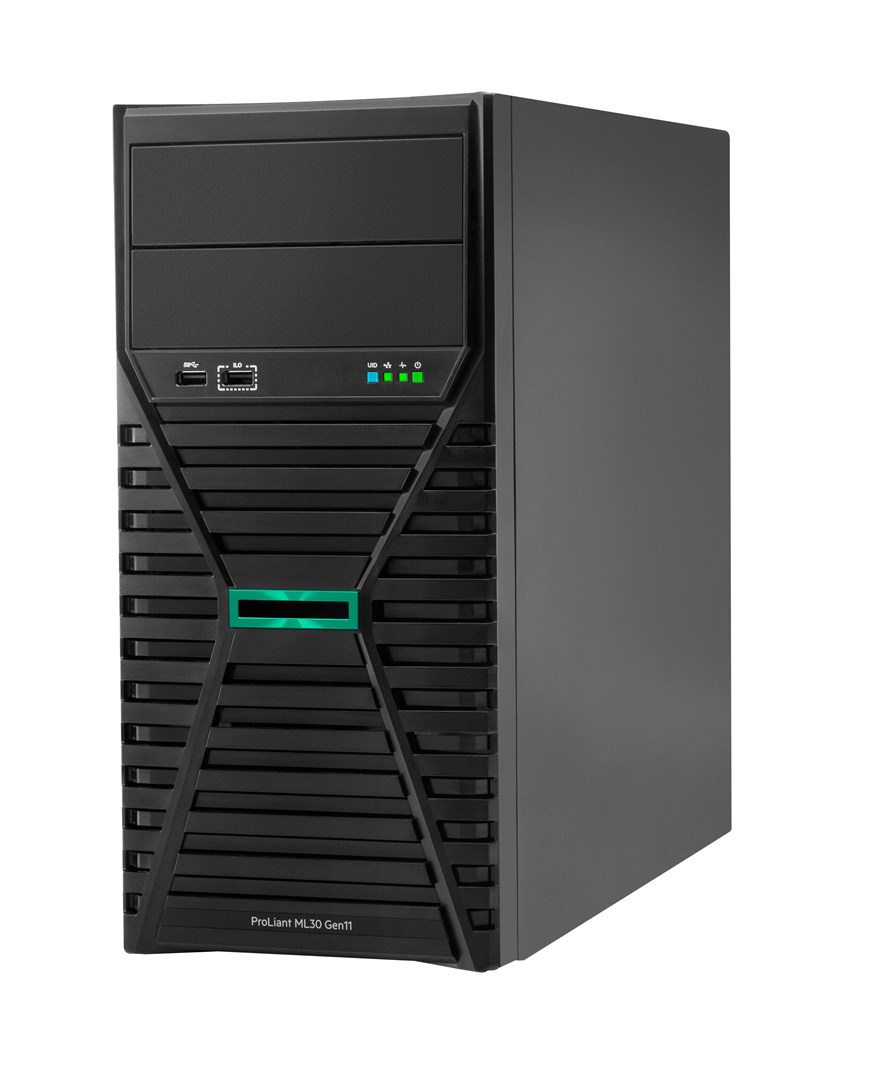

HPE ProLiant ML30 Gen11 server 2 TB Tower (4U) Intel Xeon E E-2414 2.6 GHz 32 GB DDR5-SDRAM 350 W
P71385-425

€1,880.20
HPE ProLiant ML30 Gen11 server 960 GB Tower (4U) Intel Xeon E E-2434 3.4 GHz 32 GB DDR5-SDRAM 800 W
P71387-425

€2,185.40

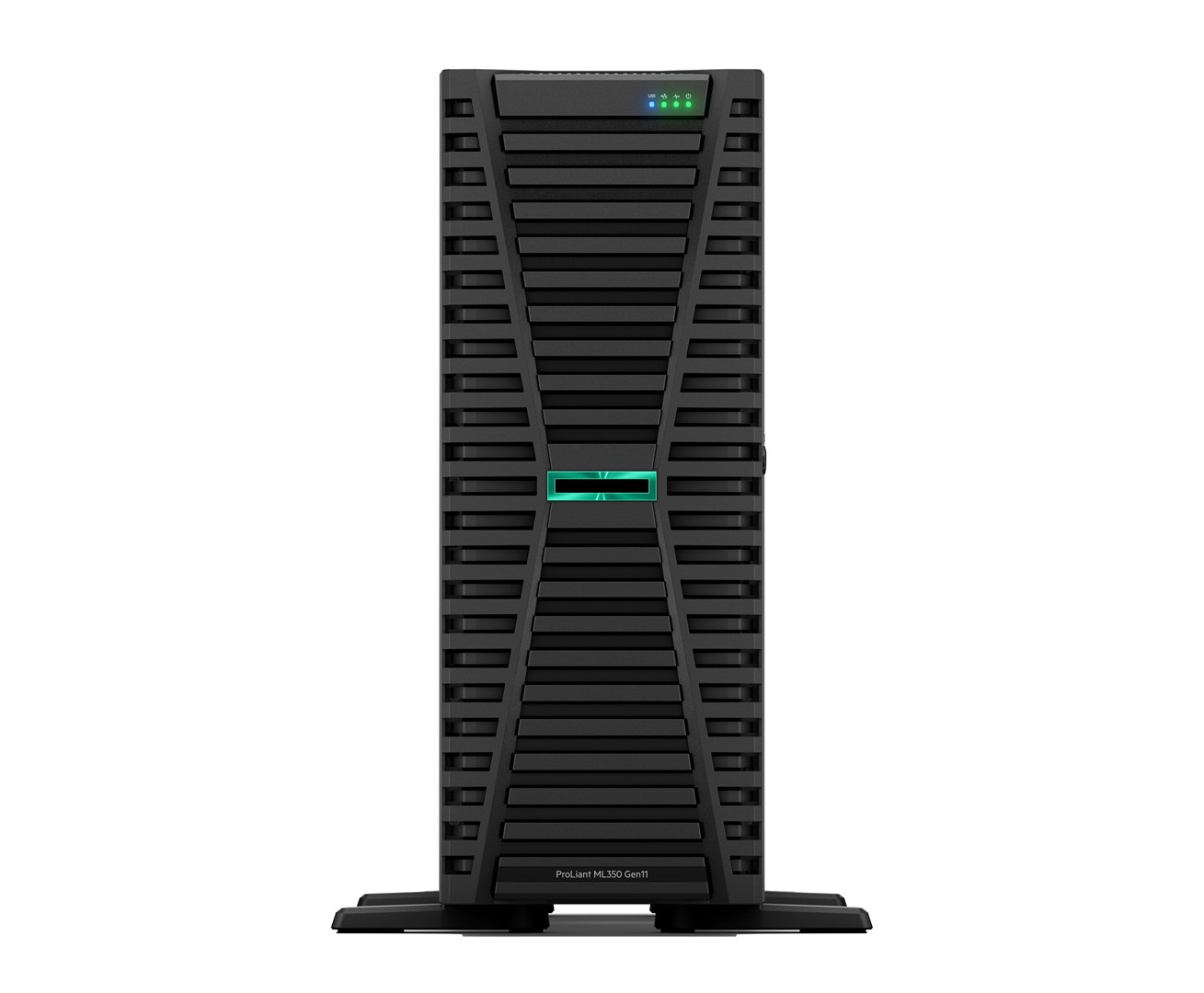

HPE ProLiant ML350 Gen11 server 1.92 TB Tower (4U) Intel Xeon Silver 4510 2.4 GHz 64 GB DDR5-SDRAM 1000 W
P71671-425

€5,278.00
HPE ProLiant DL380 Gen10 server 3.84 TB Rack (2U) Intel Xeon Silver 4210R 2.4 GHz 64 GB DDR4-SDRAM 1600 W
P71383-425

€3,939.71
HPE ProLiant DL360 Gen10 server 1.92 TB Rack (1U) Intel® Xeon® 4208 2.1 GHz 64 GB 800 W
P71373-425

€3,785.99
FutureNUC Pro NUC 13i3UP-W11P-256/2x4W6E Intel® Core™ i3 i3-1315U 8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
105744

€513.39
Ubiquiti UniFi Dream Machine Pro Max Managed 2.5G Ethernet (100/1000/2500) 1U Grey
UDM-PRO-MAX

€656.63
Ubiquiti U7 Outdoor 4300 Mbit/s White Power over Ethernet (PoE)
U7-OUTDOOR

€221.47
Ubiquiti U7 Pro Max 5700 Mbit/s White Power over Ethernet (PoE)
U7-PRO-MAX

€305.59
Peplink BR2 Micro Cellular network modem
MAX-BR2-MICRO-LTEA-E-PRM

€786.45
Ubiquiti U7 Pro Wall 5700 Mbit/s White Power over Ethernet (PoE)
U7-PRO-WALL

€226.02

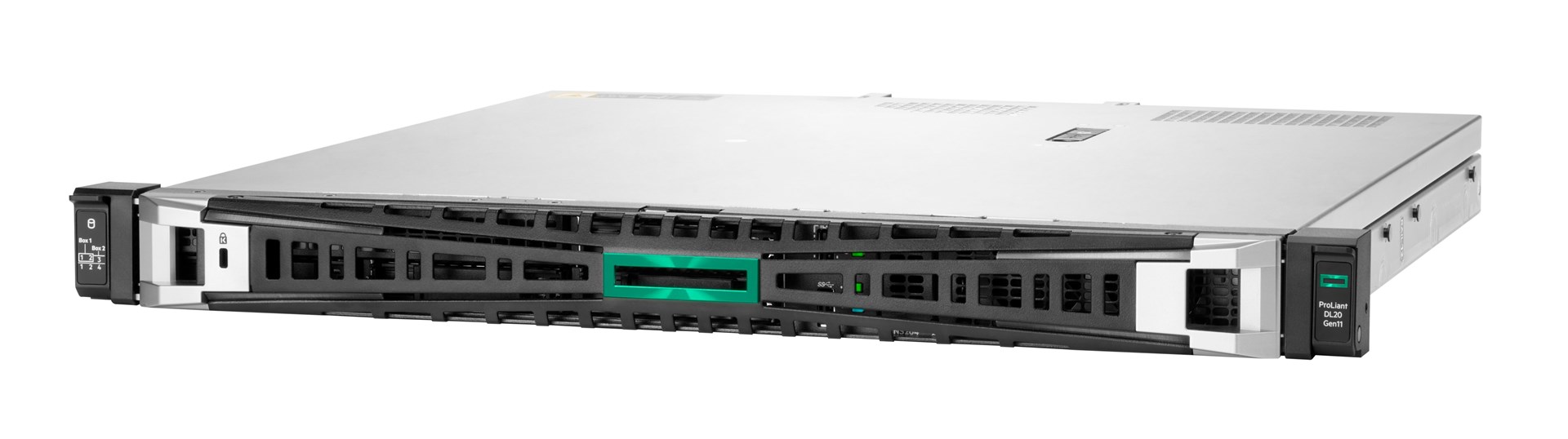

HPE ProLiant Gen11 server 960 GB Rack (1U) Intel® Xeon® E-2436 2.9 GHz 32 GB DDR5-SDRAM 800 W
P71375-425

€2,303.00

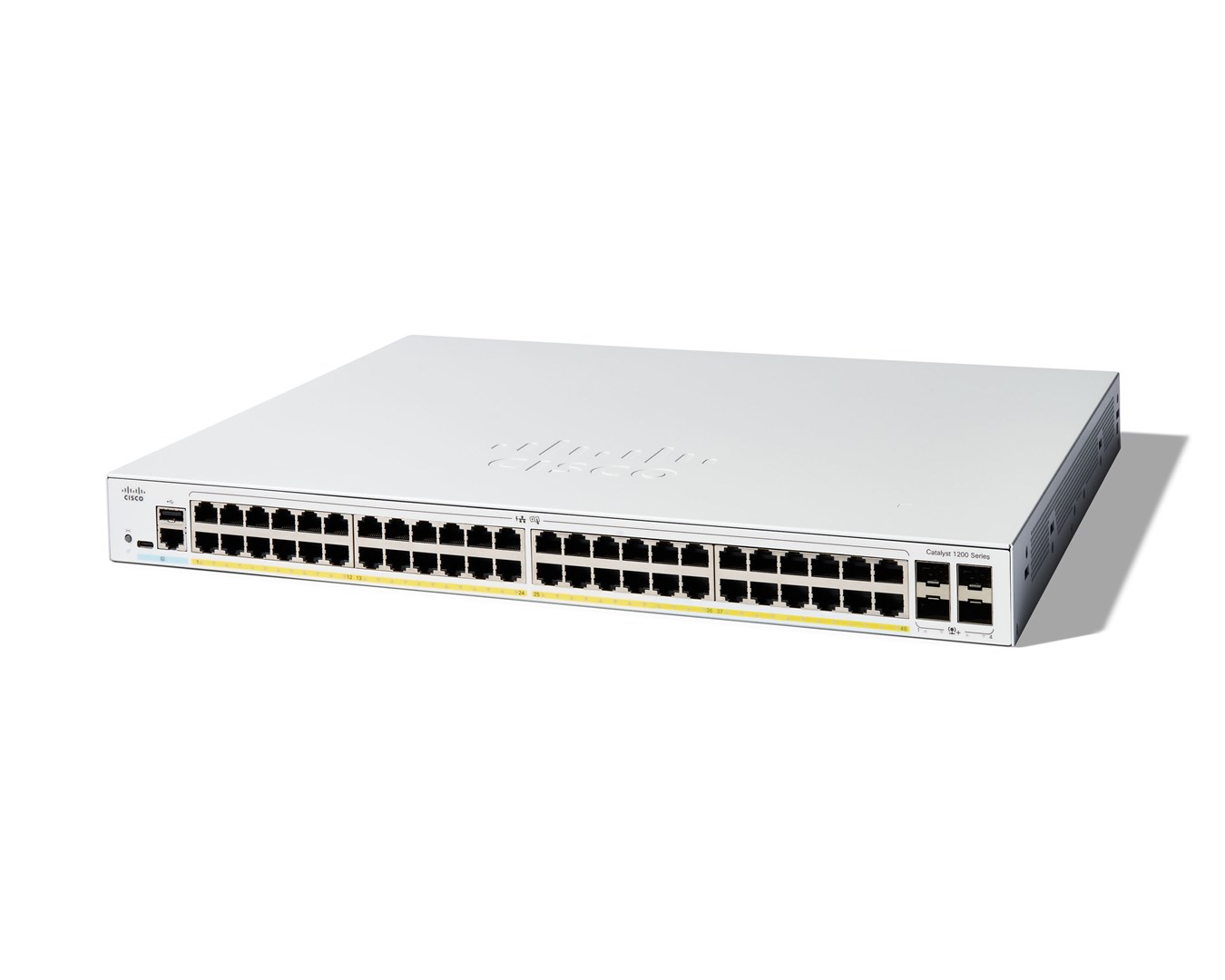

Cisco Catalyst 1200-48P-4X Smart Switch, 48 Port GE, PoE, 4x10GE SFP+, Limited Lifetime Protection (C1200-48P-4X)
