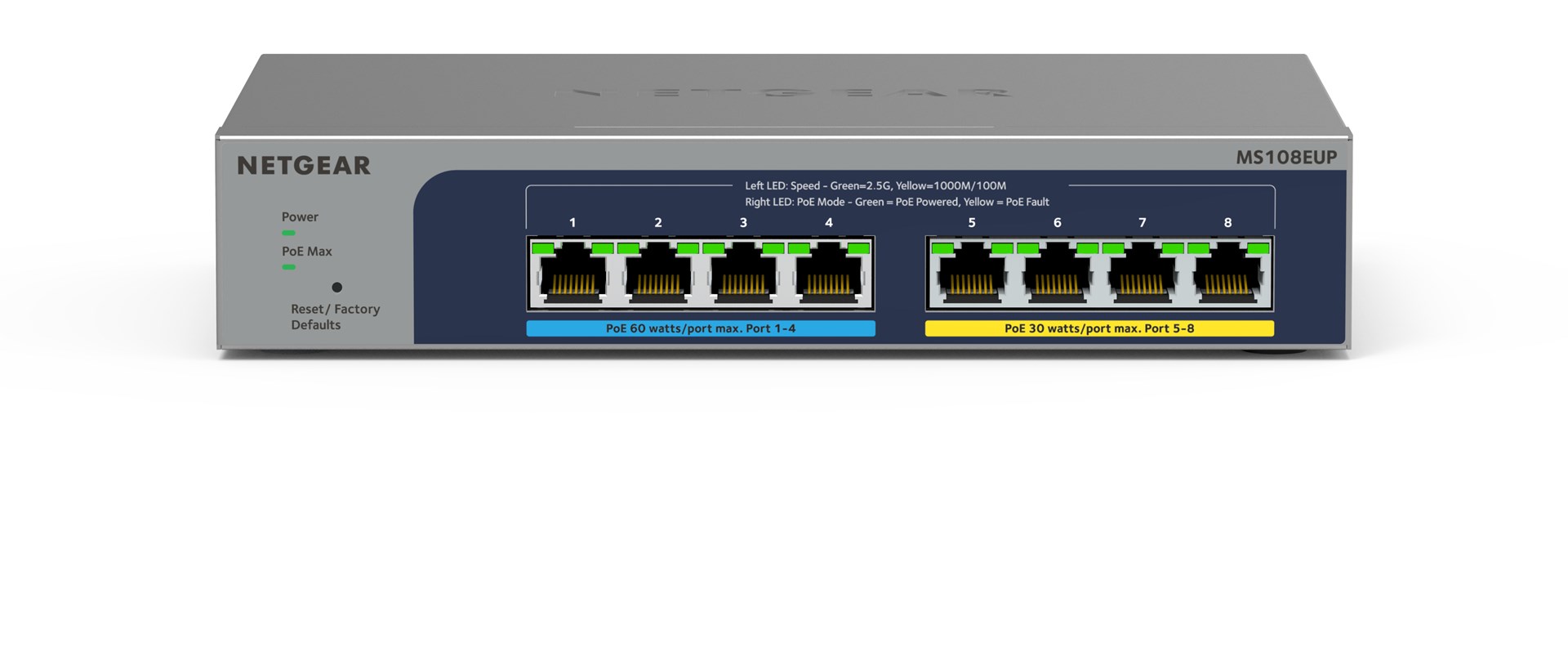

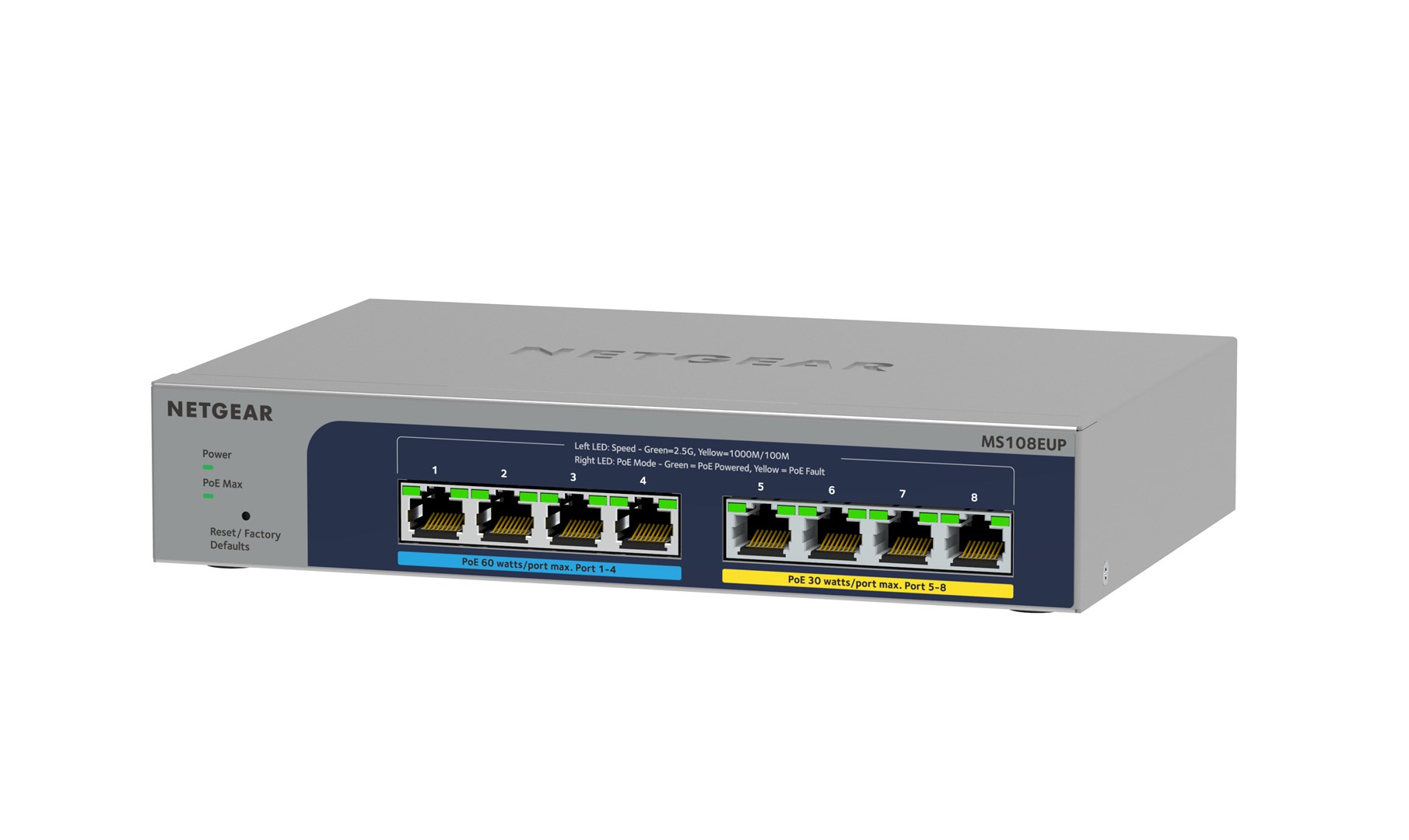

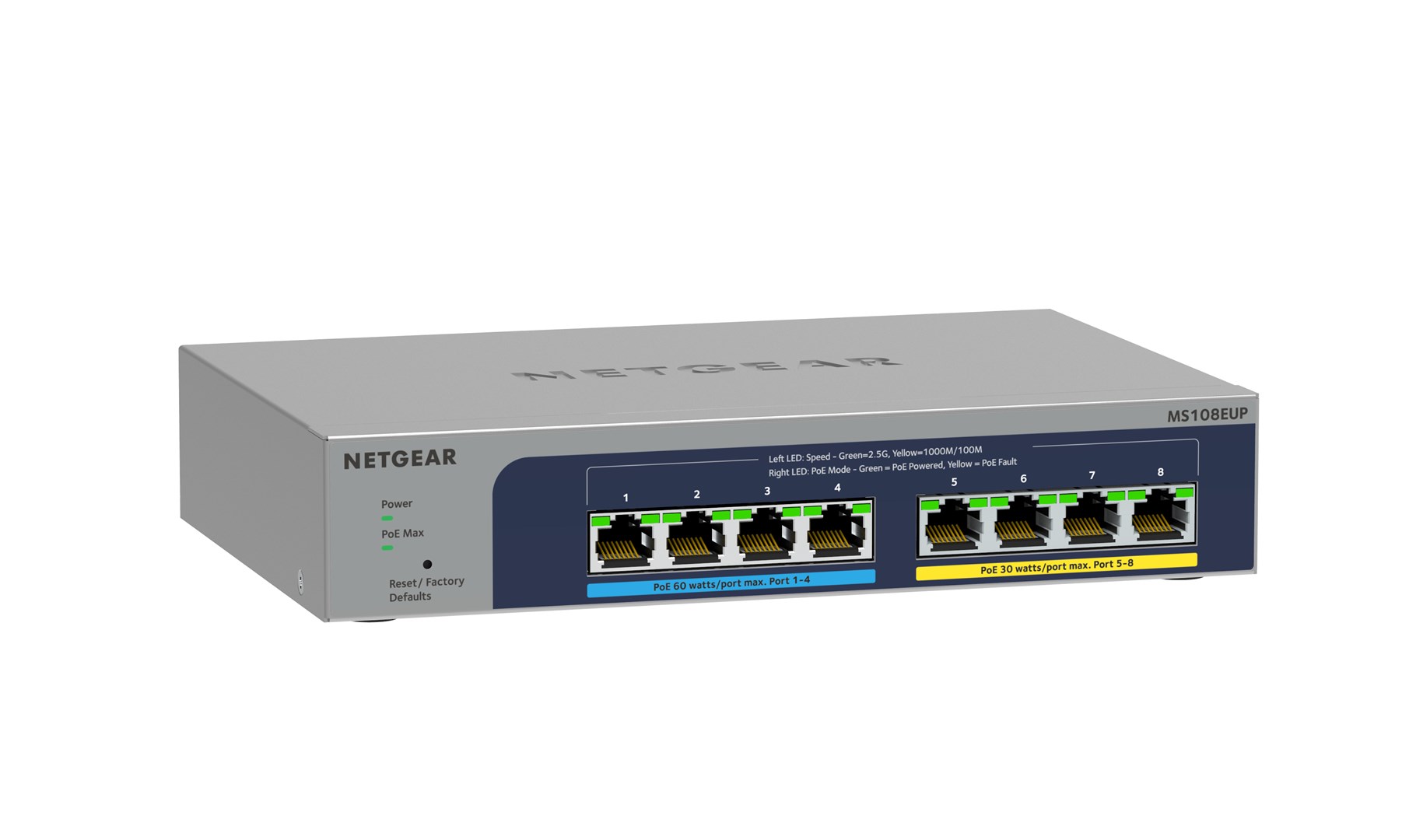

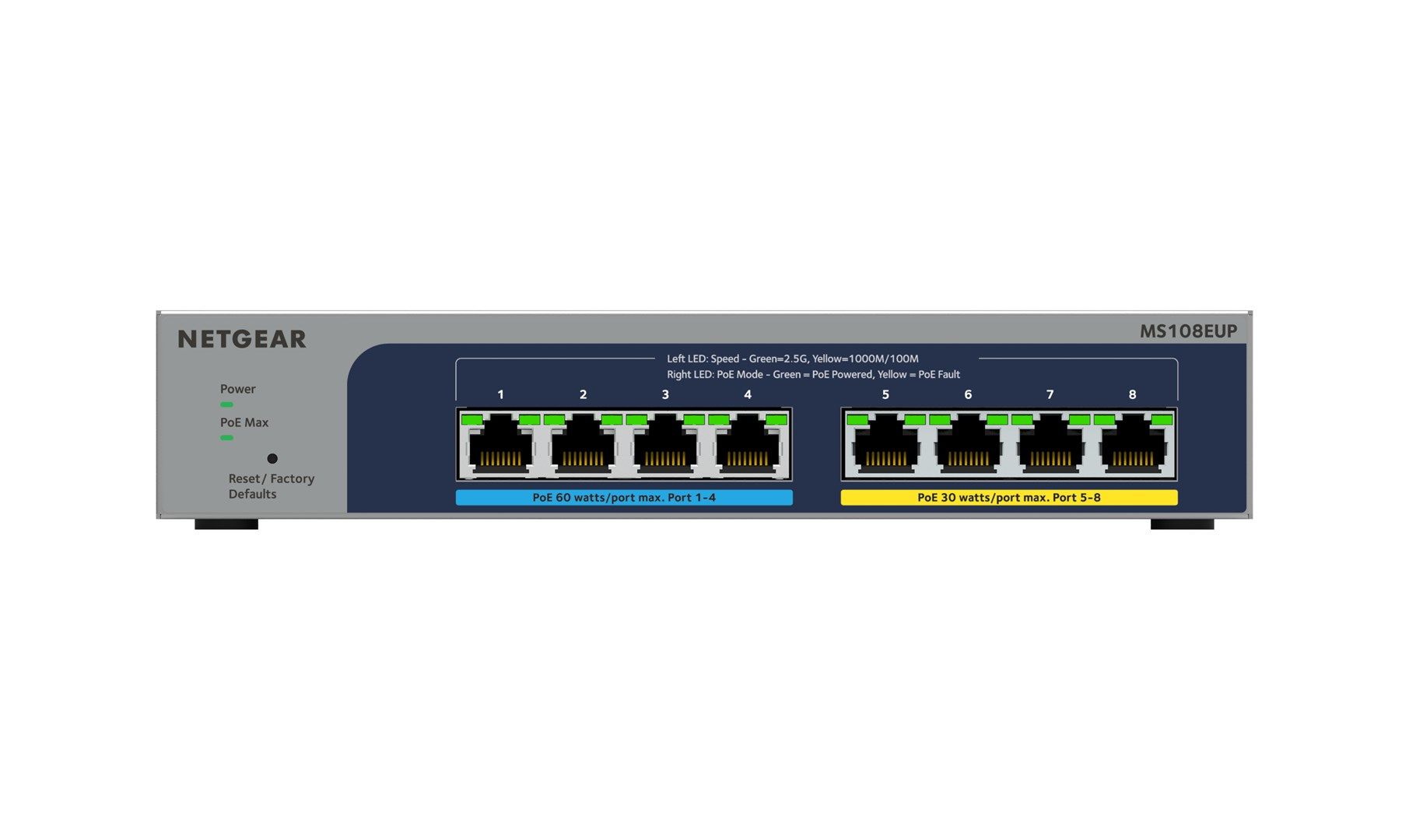

NETGEAR 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.

Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.

PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.

Advanced PoE Controls
Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.

Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.

Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.

Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.

3 IN STOCK

SKU: MS108EUP-100EUS

Manufacturer: Netgear Netgear

RRP Price €374.08

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)

Network

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
100BASE-T, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Rate limiting
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN
Number of VLANs
64

Data transmission

Switching capacity
40 Gbit/s
MAC address table
16000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
1.5 MB

Security

DHCP features
DHCP client
IGMP snooping
Yes
Password protection
Yes
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast features

Multicast support
Yes
Number of multicast groups filtered
128

Design

Rack mounting
No
Stackable
No
Product colour
Grey
Housing material
Metal
LED indicators
Yes

Performance

Mean time between failures (MTBF)
373644 h

Power

Power source
PoE
Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
230 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m

Weight & dimensions

Width
210 mm
Depth
140 mm
Height
40 mm
Weight
900 g

Certificates

Certification
CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
