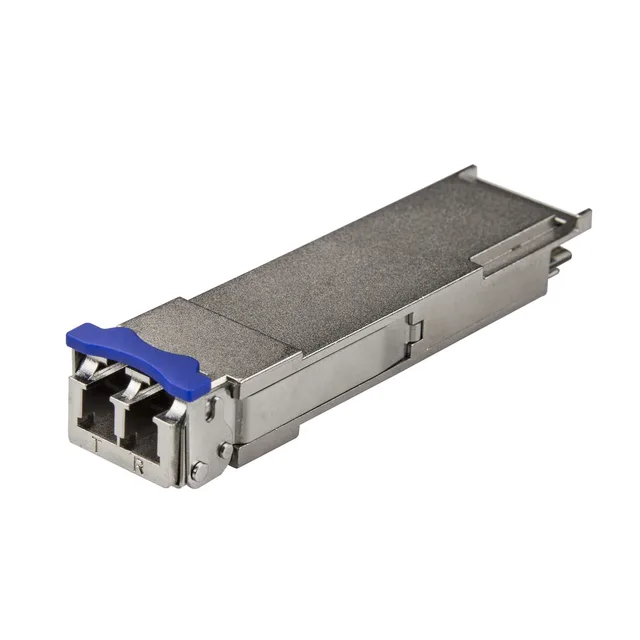

StarTech.com Cisco QSFP-40G-LR4 Compatible QSFP+ Transceiver Module - 40GBASE-LR4~Cisco QSFP-40G-LR4 Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM Cisco Firepower, ASR1000, ASR9000

StarTech.com Cisco QSFP-40G-LR4 Compatible QSFP+ Transceiver Module - 40GBASE-LR4~Cisco QSFP-40G-LR4 Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM Cisco Firepower, ASR1000, ASR9000

Name: StarTech.com Cisco QSFP-40G-LR4 Compatible QSFP+ Transceiver Module - 40GBASE-LR4~Cisco QSFP-40G-LR4 Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Sin...
Brand: StarTech.com
SKU: QSFP40GLR4ST
Price: 1325.79 EUR
Availability: OutOfStock

40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The QSFP40GLR4ST is a Cisco QSFP-40G-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: QSFP40GLR4ST

Manufacturer: StarTech.com

RRP Price €1,325.79

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

QSFP+

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

SFP transceiver standard

LR4

Maximum transfer distance

10000 m

Tx wavelength (min)

1270 nm

Tx wavelength (max)

1330 nm

Networking standards

IEEE 802.3ba

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Housing material

Aluminium

Hot-swap

Yes

Mean time between failures (MTBF)

1489426 h

Power

Power consumption (typical)

2.5 W

Certificates

Compliance certificates

CE, RoHS

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

18.4 mm

Depth

72 mm

Height

13 mm

Weight

44 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

92 mm

Package depth

117 mm

Package height

34 mm

Package weight

75 g

Logistics data

Master (outer) case width

250 mm

Master (outer) case length

300 mm

Harmonized System (HS) code

85369010

Master (outer) case height

200 mm

Products per master (outer) case

36 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.044 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
