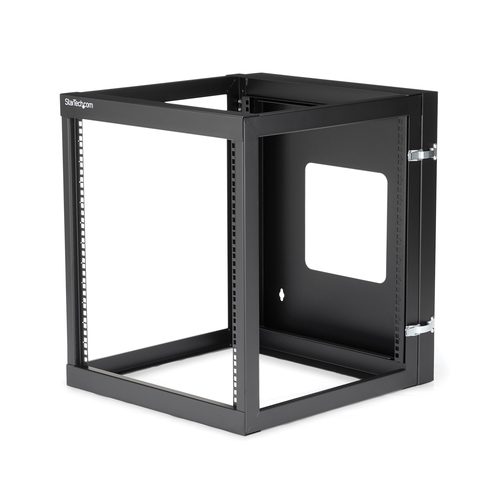

StarTech.com 12U Hinged Open Frame Wall-Mount Server Rack - 22 in. Deep

Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance

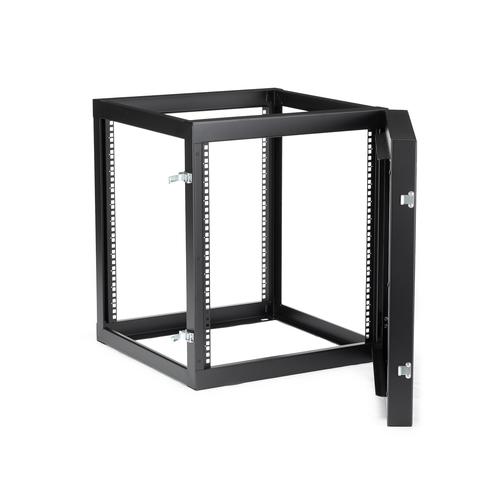

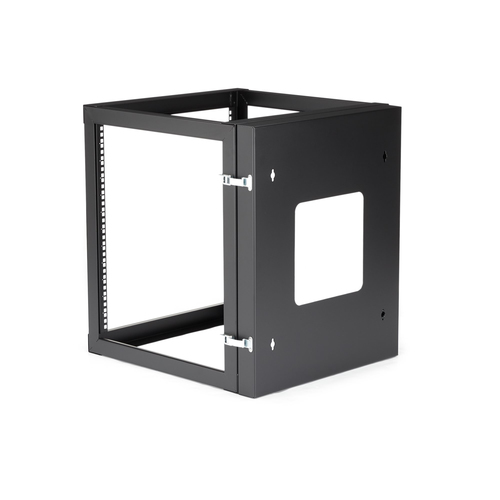

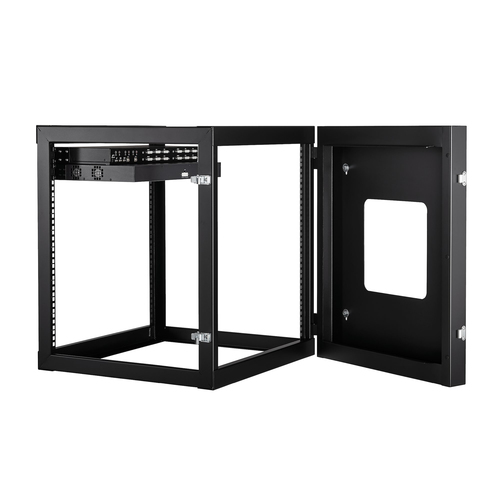

The RK1219WALLOH 12U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.

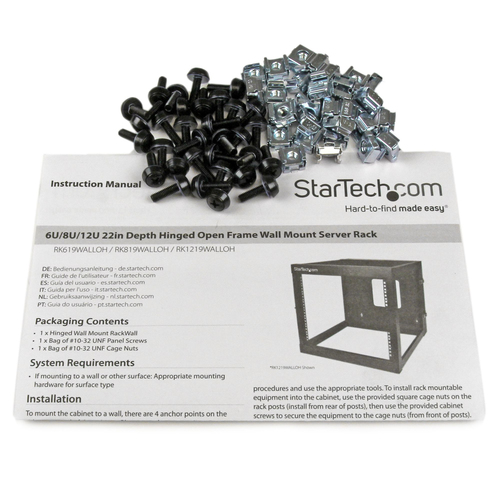

The 12U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (139 lbs) with a maximum mounting depth of 19.8inch (50.2cm) . Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.

The StarTech.com Advantage

ON ORDER

SKU: RK1219WALLOH

Manufacturer: StarTech.com StarTech.com

RRP Price €460.40

Specifications

Features

Rack capacity
12U
Type
Wall mounted rack
Maximum weight capacity
63.4 kg
Product colour
Black
Material
Steel
Frame type
Open
Product design
4-post
Key lock
No
Front door key lock
No
Adjustable mounting rails
No
Number of fans
0 fan(s)
Cable management
No
Mounting hole shape
Square
Castor wheels
No
Certification
RoHS, CE, UL, TAA

Weight & dimensions

Width
556 mm
Depth
600 mm
Height
647 mm
Inner depth
50.5 cm
Weight
18 kg
Mounting depth (max)
50.7 cm

Packaging data

Nuts included
Yes
Number of nuts
48
Screws included
Yes
Number of screws
48
Manual
Yes
Package width
635 mm
Package depth
660 mm
Package height
718 mm
Package weight
20.7 kg

Logistics data

Harmonized System (HS) code
85381000
Master (outer) case width
635 mm
Master (outer) case length
660 mm
Master (outer) case height
718 mm
Products per master (outer) case
1 pc(s)

Other features

Compliance industry standards
EIA-310-D, EIA RS310-D

Accessories

License
