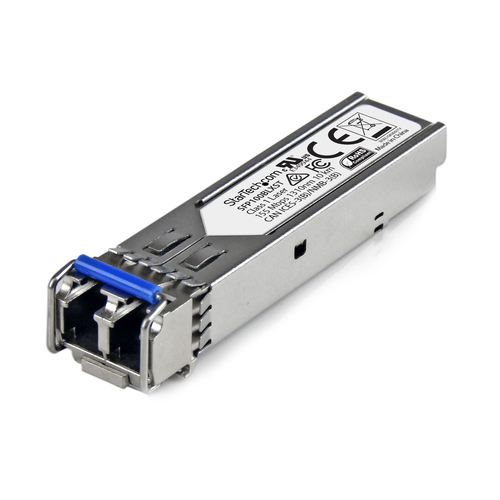

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-LX~MSA Uncoded SFP Module - 100BASE-LX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 10km - 1310nm - DDM

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-LX~MSA Uncoded SFP Module - 100BASE-LX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 10km - 1310nm - DDM

Name: StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-LX~MSA Uncoded SFP Module - 100BASE-LX - 100MbE Single Mode Fiber (SMF) Optic Transceiver...
Brand: StarTech.com
SKU: SFP100BLXST
Price: 64.61 EUR
Availability: InStock

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

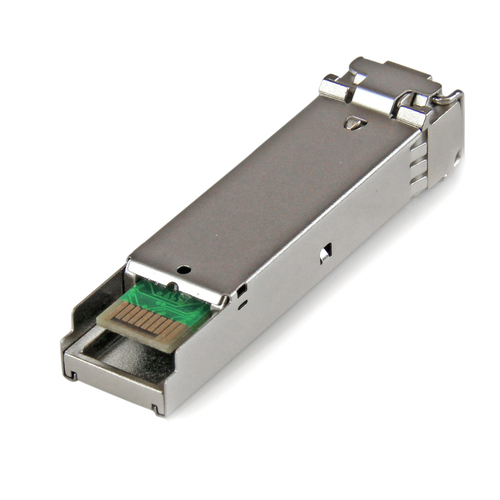

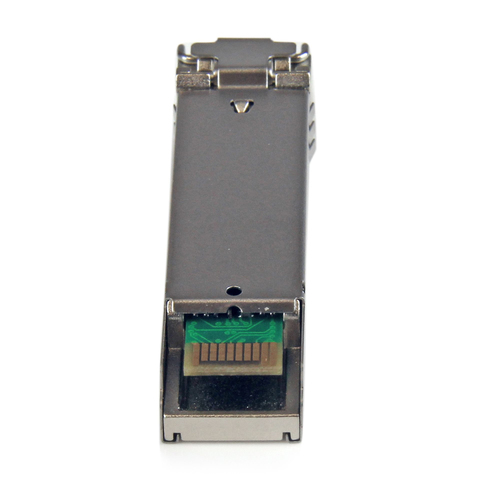

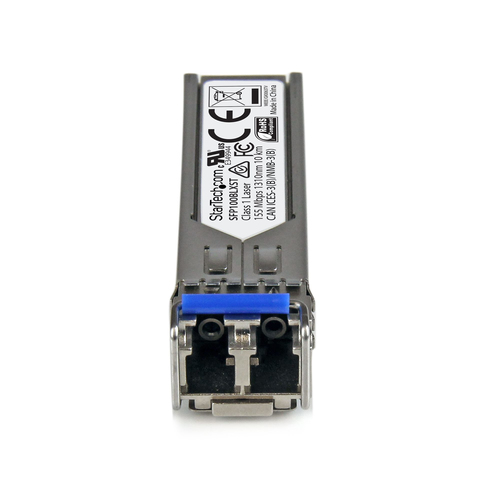

The SFP100BLXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

5 IN STOCK

SKU: SFP100BLXST

Manufacturer: StarTech.com

RRP Price €64.61

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

155 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

10000 m

Wavelength

1310 nm

Networking standards

IEEE 802.3u

Duplex system

Full, Half

Digital Diagnostics Monitoring (DDM)

Yes

Wavelength-division multiplexing (WDM)

Features

Product colour

Silver

Housing material

Aluminium

Hot-Plug support

Yes

Power

Power consumption (typical)

1 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

14 mm

Depth

59 mm

Height

13 mm

Weight

30 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

92 mm

Package depth

117 mm

Package height

33 mm

Package weight

95 g

Logistics data

Master (outer) case width

250 mm

Master (outer) case length

300 mm

Harmonized System (HS) code

85369010

Master (outer) case height

200 mm

Products per master (outer) case

36 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.03 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
