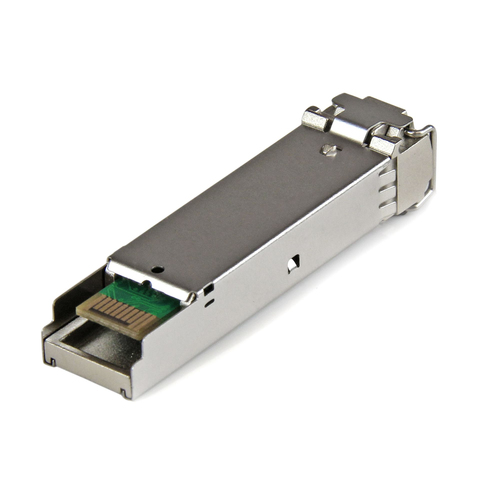

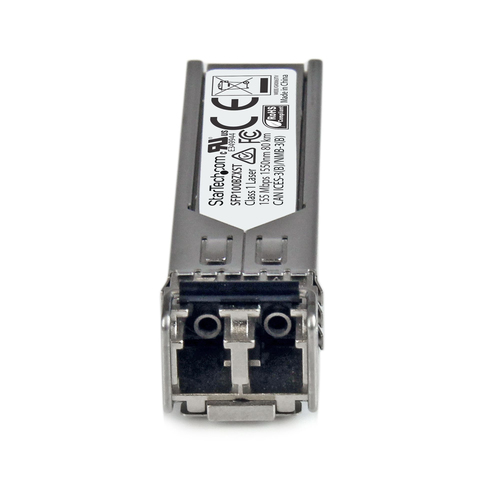

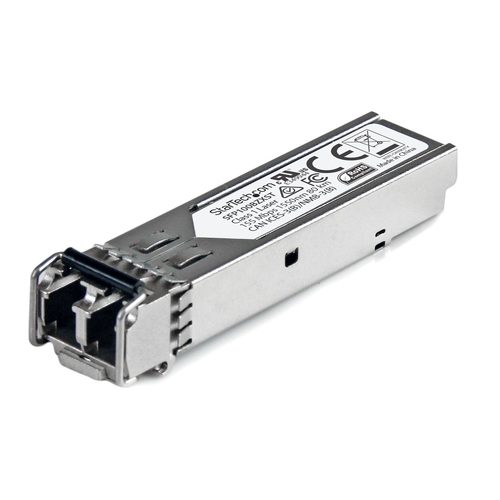

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-ZX~MSA Uncoded SFP Module - 100BASE-ZX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 80km - 1550nm - DDM

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-ZX~MSA Uncoded SFP Module - 100BASE-ZX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 80km - 1550nm - DDM

Name: StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-ZX~MSA Uncoded SFP Module - 100BASE-ZX - 100MbE Single Mode Fiber (SMF) Optic Transceiver...
Brand: StarTech.com
SKU: SFP100BZXST
Price: 104.23 EUR
Availability: OutOfStock

100 Mbps | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

The SFP100BZXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-ZX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1550nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: SFP100BZXST

Manufacturer: StarTech.com

RRP Price €104.23

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

155 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

80000 m

Wavelength

1550 nm

Networking standards

IEEE 802.3u

Duplex system

Full, Half

Wavelength-division multiplexing (WDM)

Features

Product colour

Silver

Housing material

Aluminium

Hot-Plug support

Yes

Power

Power consumption (typical)

1 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

14 mm

Depth

60 mm

Height

16 mm

Weight

18 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

95 mm

Package depth

118 mm

Package height

34 mm

Package weight

47 g

Logistics data

Master (outer) case width

200 mm

Master (outer) case length

302 mm

Harmonized System (HS) code

85369010

Master (outer) case height

170 mm

Products per master (outer) case

20 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.018 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com 5m DVI to VGA Display Monitor Cable M/M - DVI to VGA (15 Pin) Cables & Adaptors

Connect a VGA display to a PC or Mac® with a DVI Analog Video CardThe DVIVGAMM5M DVI to VGA Display Monitor Cable (5m) features a DVI-A male connector and a VGA male connector, enabling you to connect a VGA display to a PC or Mac® computer with a DVI-I analog output.Expertly designed and constructed of only high quality materials, the DVI-A to VGA cable is backed by StarTech.com''s Lifetime Warranty.The StarTech.com Advantage- Cost-effective solution for connecting a VGA Display to a PC or Mac® computer with DVI-I analog output- Ensures a solid, high quality connection between connected devices, using gold-plated contacts and molded connectors with strain relief- Delivers dependable performance, backed by lifetime warranty

€11.60

QNAP Card QM2 interface cards/adapter Internal PCIe, RJ-45 Cables & Adaptors

Future-proof 10GbE network environmentsThe QM2-2P410G1T features a 10GBASE-T Multi-Gigabit (10G/5G/2.5G/1G/100M) network port to empower your QNAP NAS with 10GbE high-speed connectivity for bandwidth-demanding tasks.With QNAP's various 10GbE switches, you can easily upgrade to a high-speed network environment.

€563.66

StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub Cables & Adaptors

The SV231TDVIUA 2-Port Triple Monitor DVI USB KVM Switch allows 2 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.The StarTech.com Advantage- By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals

€511.56

Lenovo USB-C to HDMI 2.0b USB graphics adapter Black Cables & Adaptors

When your notebook’s screen is not enough, the Lenovo USB-C to HDMI 2.0b Adapter allows you to enhance your viewing experience by connecting HDMI-enabled displays such as monitors and projectors. Bringing you all the benefits of HDMI 2.0b, such as support for UHD 4K 60Hz resolutions, you’ll be able to enjoy your films, games, and more in unbelievably vivid detail.

€0.00

StarTech.com 2m DVI to VGA Display Monitor Cable M/M - DVI to VGA (15 Pin) Cables & Adaptors

Connect a VGA display to a PC or Mac® with a DVI Analog Video CardThe DVIVGAMM2M DVI to VGA Display Monitor Cable (2m) features a DVI-A male connector and a VGA male connector, enabling you to connect a VGA display to a PC or Mac® computer with a DVI-I analog output.Expertly designed and constructed of only high quality materials, the DVI-A to VGA cable is backed by StarTech.com''s Lifetime Warranty.The StarTech.com Advantage- Cost-effective solution for connecting a VGA Display to a PC or Mac® computer with DVI-I analog output- Ensures a solid, high quality connection between connected devices, using gold-plated contacts and molded connectors with strain relief- Delivers dependable performance, backed by lifetime warranty

€9.78

StarTech.com 1m DVI to VGA Display Monitor Cable M/M - DVI to VGA (15 Pin) Cables & Adaptors

Connect a VGA display to a PC or Mac® with a DVI Analog Video CardThe DVIVGAMM1M DVI to VGA Display Monitor Cable (1m) features a DVI-A male connector and a VGA male connector, enabling you to connect a VGA display to a PC or Mac® computer with a DVI-I analog output.Expertly designed and constructed of only high quality materials, the DVI-A to VGA cable is backed by StarTech.com''s Lifetime Warranty.The StarTech.com Advantage- Cost-effective solution for connecting a VGA Display to a PC or Mac® computer with DVI-I analog output- Ensures a solid, high quality connection between connected devices, using gold-plated contacts and molded connectors with strain relief- Delivers dependable performance, backed by lifetime warranty

€6.61

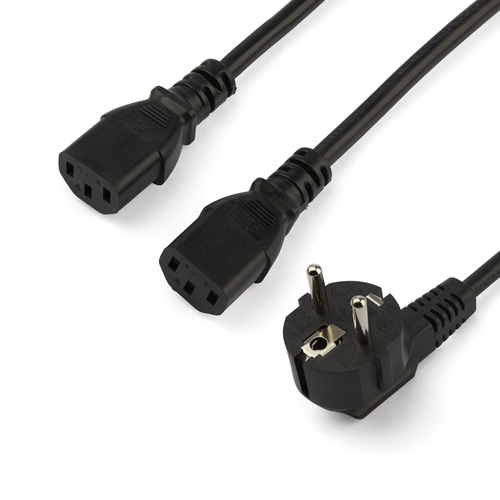

StarTech.com 2m (6ft) Computer Power Y Cord, 18AWG, EU Schuko to 2x C13, 10A 250V, Black Replacement AC Power Cord, Printer Power Cord, PC Power Supply Cable, Monitor Power Cable - UL Listed Cables & Adaptors
