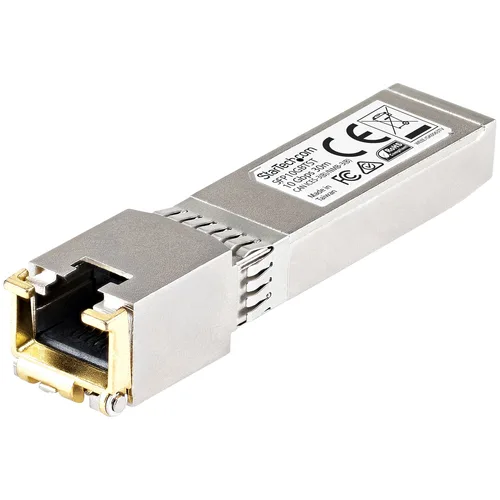

StarTech.com Cisco SFP-10GB-TC Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - Cisco Firepower, ASR1000, ASR9000

StarTech.com Cisco SFP-10GB-TC Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - Cisco Firepower, ASR1000, ASR9000

Name: StarTech.com Cisco SFP-10GB-TC Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - Cisco Firepower,...
Brand: StarTech.com
SKU: SFP10GBTCST
Price: 275.41 EUR
Availability: InStock

10Gbps | Copper | RJ45 | 30 m (100 ft) | Lifetime Warranty

The SFP10GBTCST is a Cisco compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 4,598,430 hours
• Digital Diagnostics Monitoring (DDM): No

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

33 IN STOCK

SKU: SFP10GBTCST

Manufacturer: StarTech.com

RRP Price €275.41

Specifications

Performance

SFP transceiver type

Copper

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Maximum transfer distance

30 m

Networking standards

IEEE 802.3an

Duplex system

Full, Half

Auto MDI/MDI-X

Yes

Digital Diagnostics Monitoring (DDM)

Features

Product colour

Silver

Housing material

Zinc steel

Hot-swap

Yes

Mean time between failures (MTBF)

4598430 h

Brand compatibility

Cisco

Power

Power consumption (typical)

2.3 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 90 °C

Operating relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

13.4 mm

Depth

69.8 mm

Height

14 mm

Weight

58 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

75 mm

Package depth

120 mm

Package height

33 mm

Logistics data

Master (outer) case width

340 mm

Master (outer) case length

638 mm

Harmonized System (HS) code

85369010

Master (outer) case height

290 mm

Products per master (outer) case

150 pc(s)

Country of origin

Taiwan

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.058 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License
