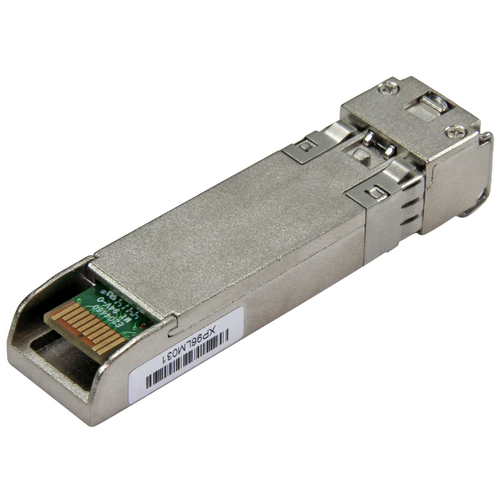

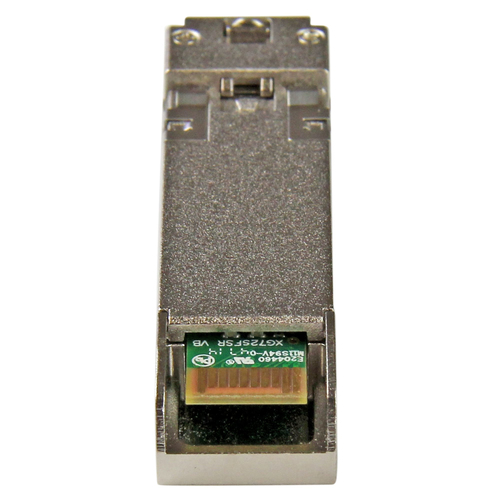

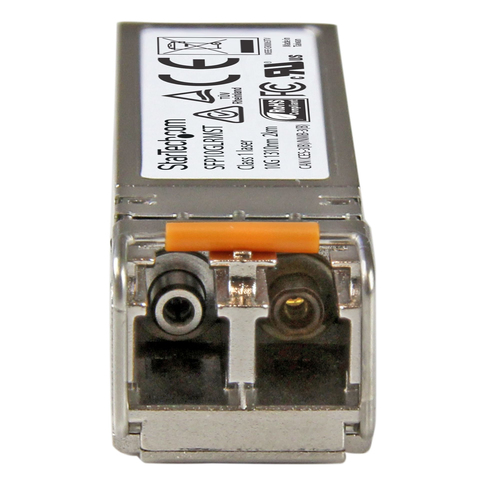

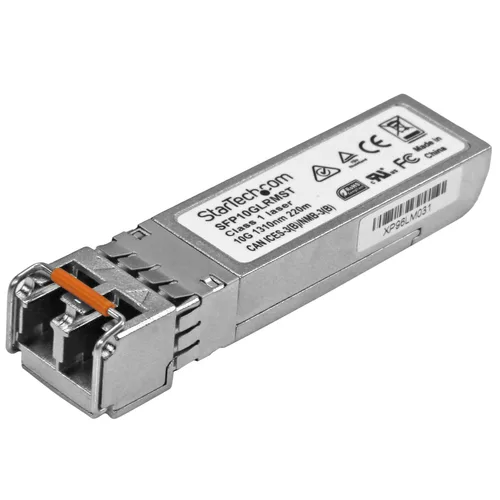

StarTech.com Cisco SFP-10G-LRM Compatible SFP+ Transceiver Module - 10GBASE-LRM~Cisco SFP-10G-LRM Compatible SFP+ Module - 10GBASE-LRM - 10GbE Multimode Fiber MMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 200m - 1310nm - DDM Cisco Firepower, ASR9000, C9300

10 Gbps | Multi Mode Fiber | LC | 200 m (656 ft) | Lifetime Warranty

The SFP10GLRMST is a Cisco SFP-10G-LRM compatible fiber transceiver module that has been designed, programmed and tested to work with Ciscoâ„¢ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 200 m (656 ft)
• MTBF: 1,535,075 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: SFP10GLRMST

Manufacturer: StarTech.com StarTech.com

RRP Price €180.47

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
Maximum transfer distance
220 m
Wavelength
1310 nm
Networking standards
IEEE 802.3ae
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
Yes
Fiber ports quantity
1

Features

Product colour
Silver
Hot-swap
Yes

Power

Power consumption (typical)
1 W

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UL

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
30 - 75%

Weight & dimensions

Width
13.9 mm
Depth
58.4 mm
Height
12.6 mm
Weight
20 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
93 mm
Package depth
117 mm
Package height
34 mm
Package weight
95 g

Logistics data

Master (outer) case width
259 mm
Master (outer) case length
308 mm
Harmonized System (HS) code
85369010
Master (outer) case height
203 mm
Products per master (outer) case
36 pc(s)
Country of origin
China
