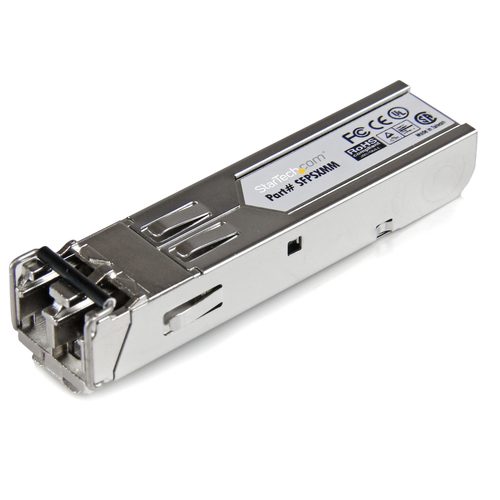

StarTech.com MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM

StarTech.com MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM

Name: StarTech.com MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM
Brand: StarTech.com
SKU: SFPSXMM
Price: 56.99 EUR
Availability: InStock

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | TAA | Lifetime Warranty

The SFPSXMM is a TAA compliant MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 78,286 hours
• Power Consumption: Less than 1 Watt
• DDM: No

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

13 IN STOCK

SKU: SFPSXMM

Manufacturer: StarTech.com

RRP Price €56.99

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1250 Mbit/s

Interface type

SFP

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

550 m

Wavelength

850 nm

Networking standards

IEEE 802.3z

Fiber ethernet cabling technology

1000BASE

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

78286 h

Brand compatibility

MSA Compliant

Power

Power consumption (typical)

1 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UL, TAA, REACH

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

13 mm

Depth

55 mm

Height

9 mm

Weight

18 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

25 mm

Package depth

115 mm

Package height

65 mm

Package weight

40 g

Other features

Dimensions (WxDxH)

13 x 55 x 9 mm

Logistics data

Master (outer) case width

220 mm

Master (outer) case length

560 mm

Harmonized System (HS) code

85369010

Master (outer) case height

210 mm

Products per master (outer) case

100 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.018 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
