TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

PoE-Powered PoE Switch for
Simplified Outdoor Network Deployment

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.

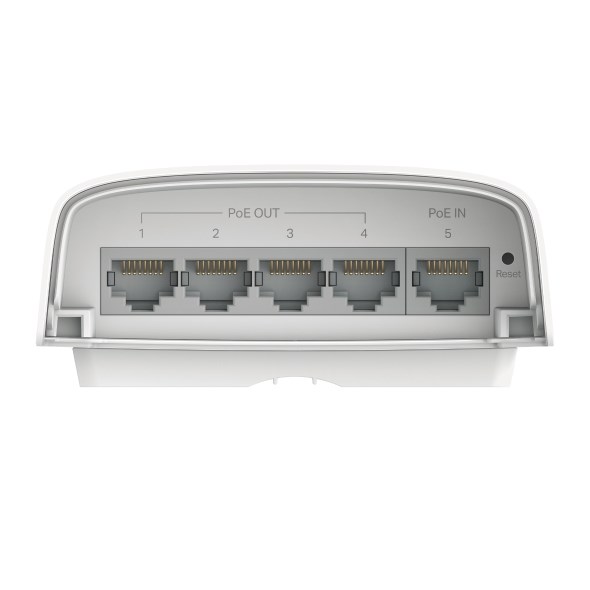

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.

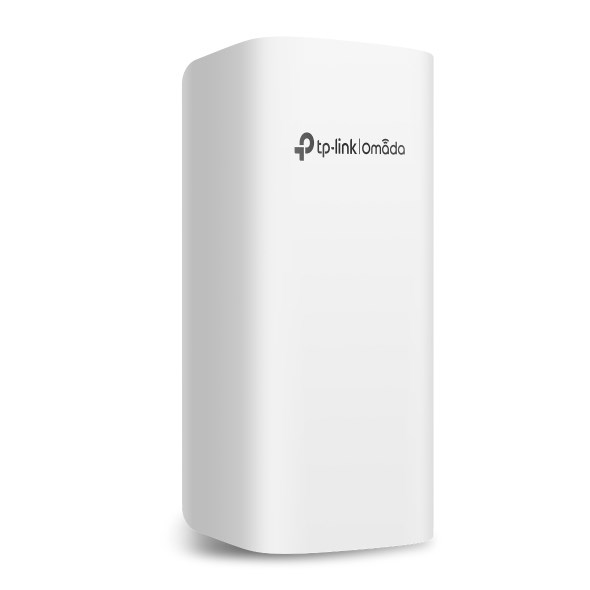

Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.

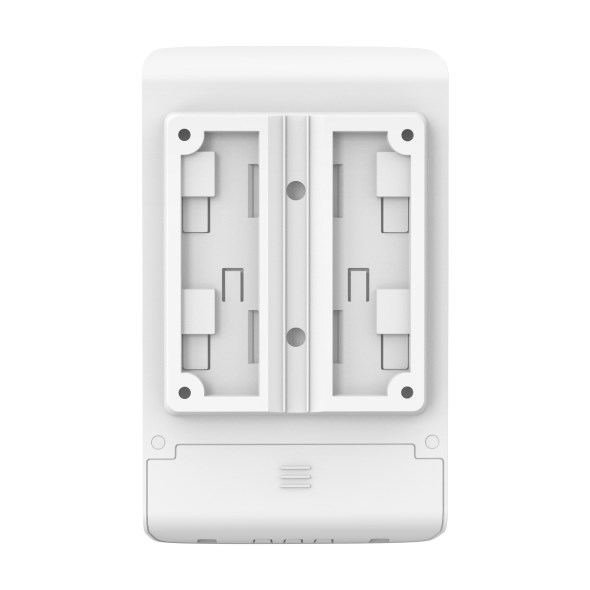

Easy Installation to Flexibly Fit Your Needs
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.

Value-Added Features Foster Touchpoint Experiences

Static Routing
Helps route internal traffic for more efficient use of network resources.

Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experiences
Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.

VLAN for Security and Flexible Management
VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

10 IN STOCK

SKU: SG2005P-PD

Manufacturer: TP-Link TP-Link

RRP Price €102.87

Specifications

Management features

Switch type
Managed
Switch layer
L2/L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
MIB support
Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity
4

Network

Networking standards
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported
Cat5, Cat5e
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
IPv4 routes
32
IPv6 routes
32
VLAN support
Yes
Virtual LAN features
Voice VLAN
Number of VLANs
4000

Data transmission

Switching capacity
10 Gbit/s
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
9
Packet forwarding rate (1 Gbps)
7440 pps
Packet buffer memory
4.1 MB

Security

DHCP features
DHCP relay, DHCP server
Access Control List (ACL)
Yes
Access Control List (ACL) IPv4 entries
32
IGMP snooping
Yes
Security algorithms
802.1x RADIUS
MAC address filtering
Yes
IP-MAC-Port binding
Yes
Authentication
MAC-based authentication, Port-based authentication
Password protection
Yes

Multicast features

Multicast support
Yes
Multicast MAC address table
8000 entries
IPv4 multicast entries
511
IPv6 multicast entries
511

Protocols

IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert

Design

Rack mounting
No
Stackable
No
Form factor
Desktop
Product colour
White
LED indicators
Yes

Power

Power source
DC/PoE
Power supply included
Yes
Power consumption (typical)
71.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
64 W

Operational conditions

Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
243.99 BTU/h

Weight & dimensions

Width
170 mm
Depth
100 mm
Height
38.5 mm

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE, RoHS

Accessories

License
