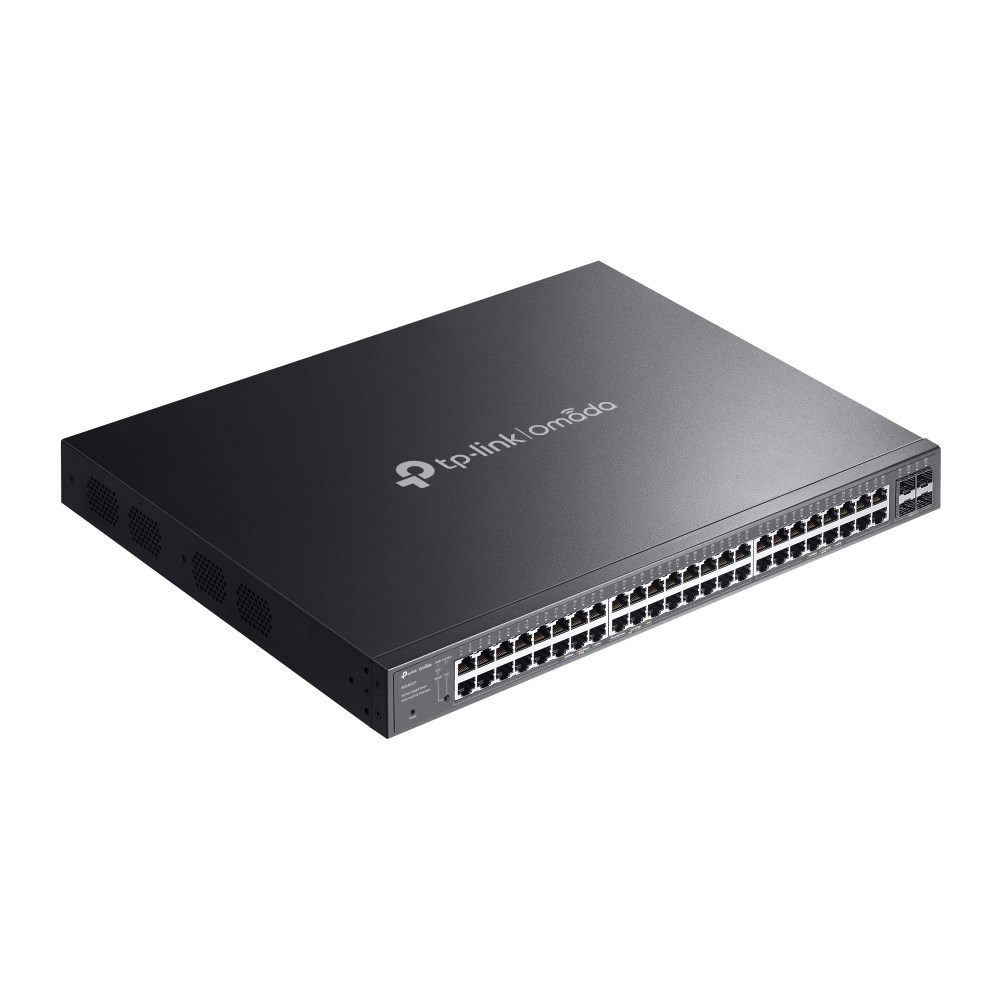

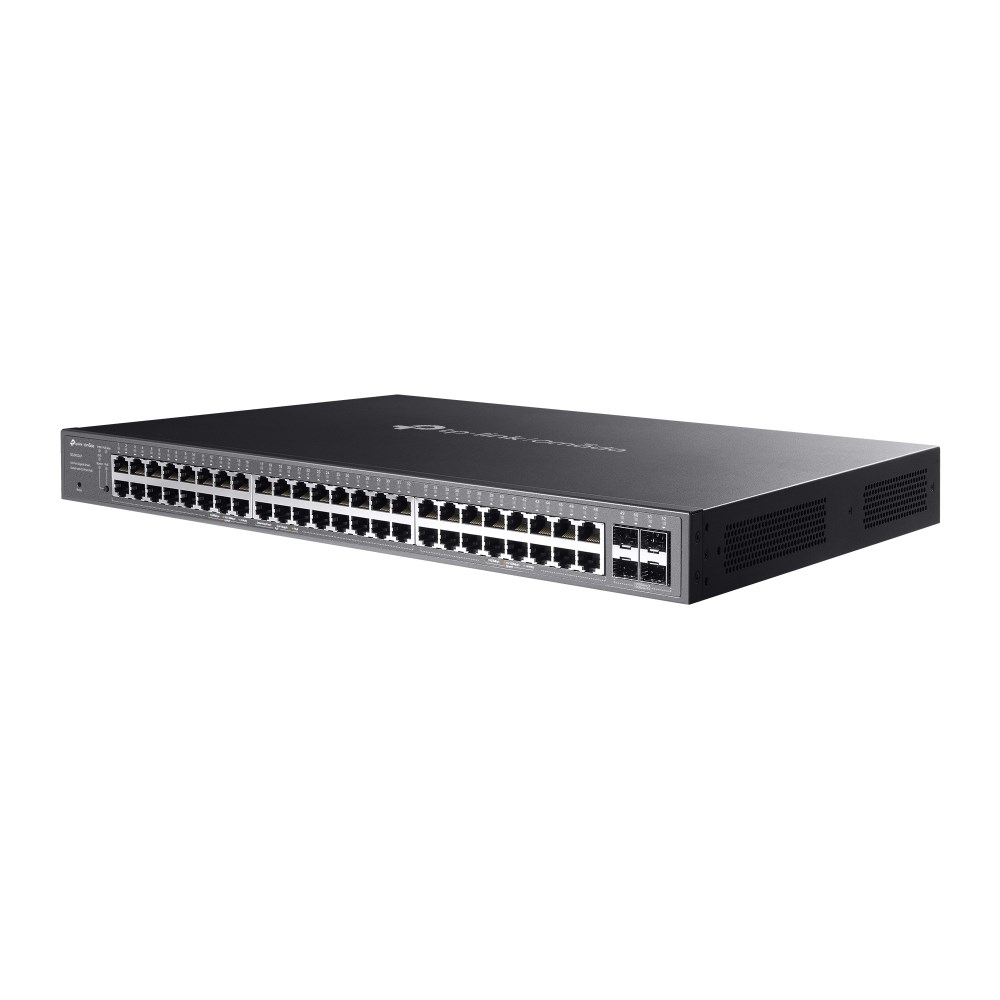

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

Power over Ethernet, Flexible Network Deployment

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

6 IN STOCK

SKU: SG2452LP

Manufacturer: TP-Link TP-Link

RRP Price €662.46

Specifications

Management features

Switch type
Managed
Switch layer
L2/L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4

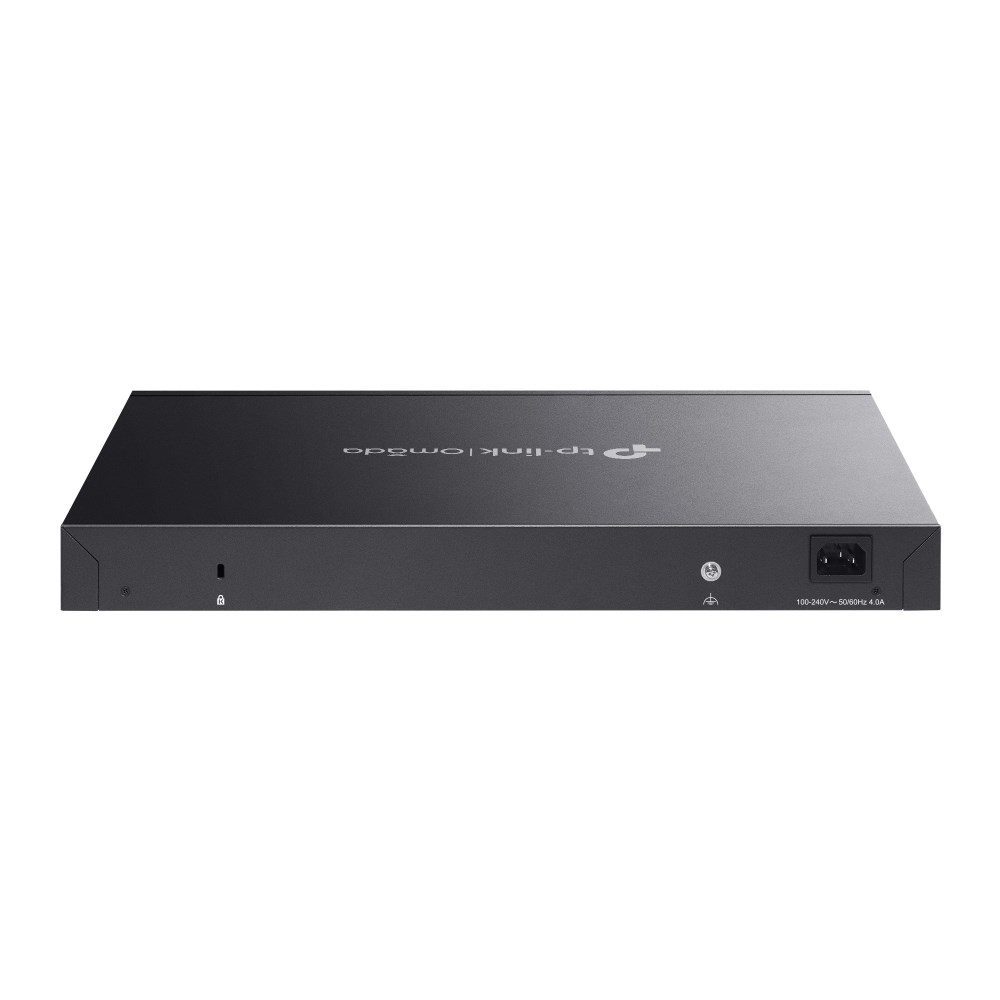

Power connector
AC-in jack

Network

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x
10G support
No
Port mirroring
Yes
IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Active link detection
Yes
VLAN support
Yes

Data transmission

Switching capacity
104 Gbit/s
Forwarding rate
77.37 Mpps
MAC address table
16000 entries
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Security

DHCP features
DHCP relay, DHCP server
IGMP snooping
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
MAC address filtering
Yes
SSH/SSL support
Yes
Loop protection
Yes
Authentication type
RADIUS

Design

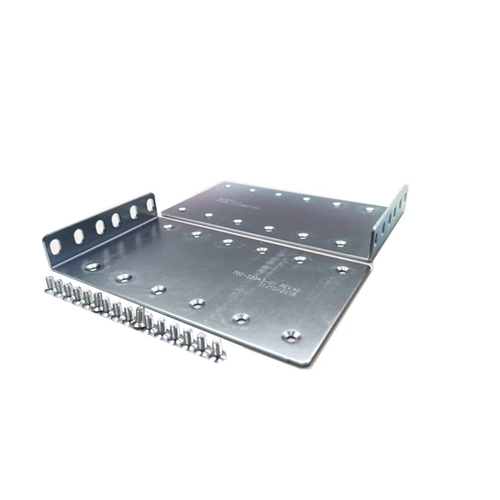

Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
304.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
32
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
230 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
1035.4 BTU/h

Weight & dimensions

Width
440 mm
Depth
330 mm
Height
44 mm

Accessories

License
