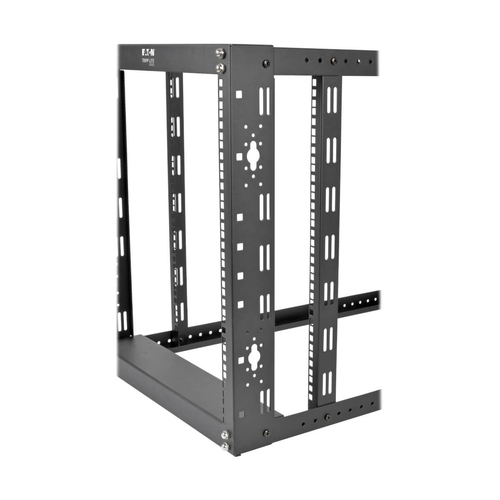

Tripp Lite SR12UBEXPNDKD SmartRack 12U Standard-Depth 4-Post Open Frame Rack

Name: Tripp Lite SR12UBEXPNDKD SmartRack 12U Standard-Depth 4-Post Open Frame Rack
Brand: Eaton
SKU: SR12UBEXPNDKD
Price: 305.77 EUR
Availability: OutOfStock

The SmartRack 12U Standard-Depth 4-Post Open Frame Rack provides an economical rack-mount solution for small offices, retail locations and other secure IT locations with limited floor space where you need equipment to be organized and easy to access. It's ideal for mounting network switches, routers, patch panels, audio/video components and other EIA-standard 19-inch rack equipment up to 36 inches deep.

Constructed from heavy-duty steel with a durable black powder-coated finish, the SR12UBEXPNDKD has a maximum load capacity of 1000 lbs (453.6 kgs). Stashed away under a counter, on a workbench or in a corner, this rack saves precious space and allows you fast, easy access at your immediate workspace for organizing, installing and servicing equipment and cabling. The open design allows unobstructed airflow to help keep components cool and performing at their peak.

The self-squaring SR12UBEXPNDKD assembles using the included hardware. Built-in casters allow you to roll the rack into place. The vertical mounting rails have square, numbered holes and optional cable management hooks for securing equipment to the steel frame. Only user-supplied standard hand tools are required for setup. Toolless button holes accept 0U vertical installation of PDUs and cable managers.

ON ORDER

SKU: SR12UBEXPNDKD

Manufacturer: Eaton Eaton

RRP Price €305.77

Specifications

Features

Rack capacity

12U

Type

Freestanding rack

Product colour

Black

Material

Steel

Frame type

Open

Product design

4-post

Certification

EIA-310-D, IEC 60297-3-100, RoHS

Weight & dimensions

Size (imperial)

48.3 cm (19")

Width

517.4 mm

Depth

912.9 mm

Height

650.2 mm

Weight

14.5 kg

Packaging data

Wall mounting kit

Yes

Mounting kit

Yes

Manual

Yes

Package width

213.6 mm

Package depth

1088.6 mm

Package height

98.8 mm

Package weight

14.5 kg

Technical details

Master (outer) case GTIN (EAN/UPC)

10037332188479

Logistics data

Country of origin

China

Harmonized System (HS) code

8517.79.0000

Master (outer) case width

929.9 mm

Master (outer) case length

1120.1 mm

Master (outer) case height

350 mm

Master (outer) case gross weight

299.8 kg

Products per master (outer) case

12 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

14.51 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
