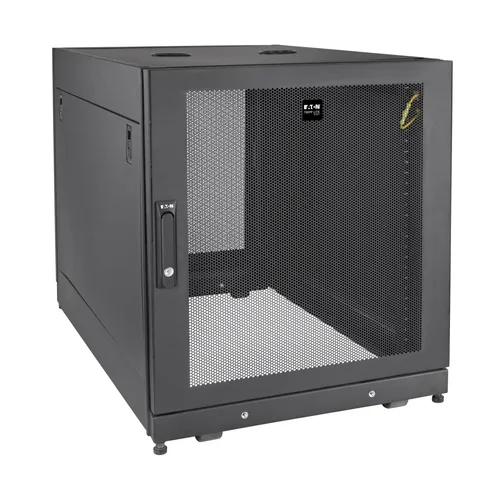

Tripp Lite SR14UBDP 14U SmartRack Extra Deep Small Server Rack Enclosure, Doors & Side Panels Included

Tripp Lite SR14UBDP 14U SmartRack Extra Deep Small Server Rack Enclosure, Doors & Side Panels Included

Name: Tripp Lite SR14UBDP 14U SmartRack Extra Deep Small Server Rack Enclosure, Doors & Side Panels Included
Brand: Eaton
SKU: SR14UBDP
Price: 957.81 EUR
Availability: OutOfStock

Deep Server Cabinet Accommodates 14U of Standard Rack Equipment

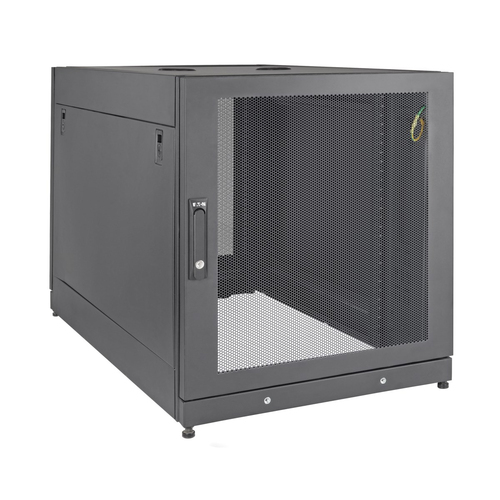

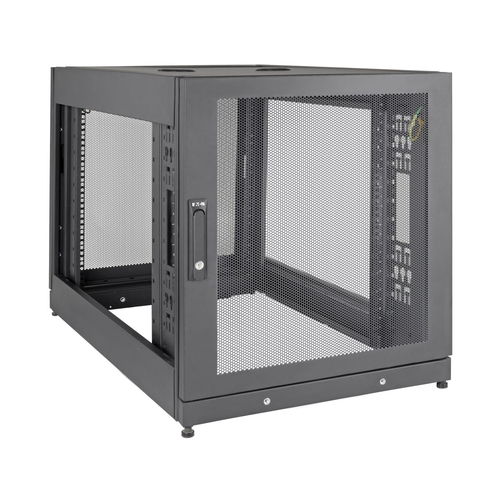

This SmartRack® 14U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. It supports mounting of equipment up to 37 inches deep. This allows high-density equipment installations, extra space for cable management, and room for removing hot-swap power supplies from the rear of mounted devices. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR14UBDP has a maximum load capacity of 1000 pounds (453.6 kg).

Keeps Important Equipment Secure and Well Ventilated

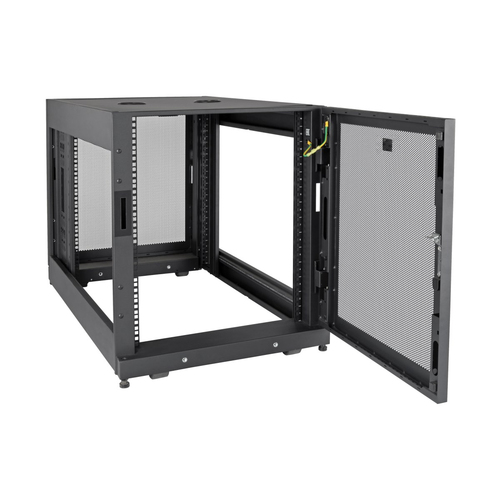

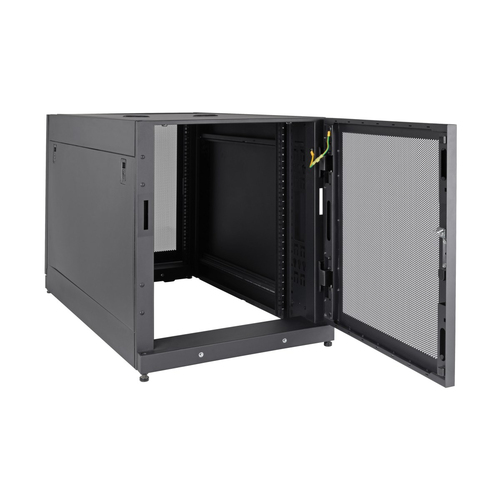

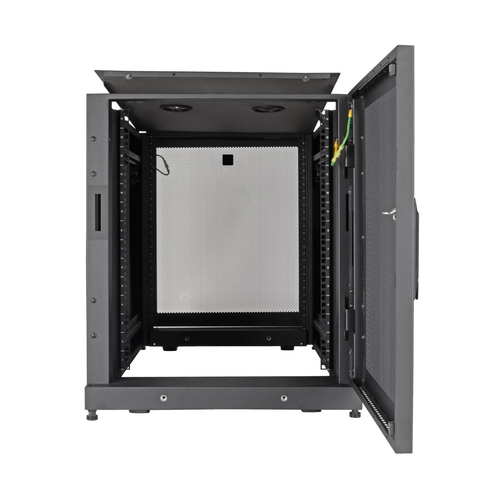

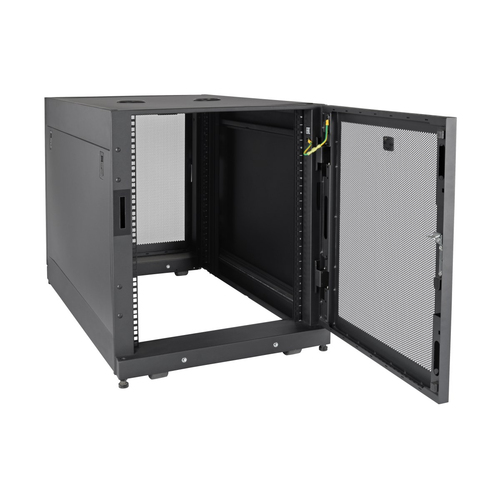

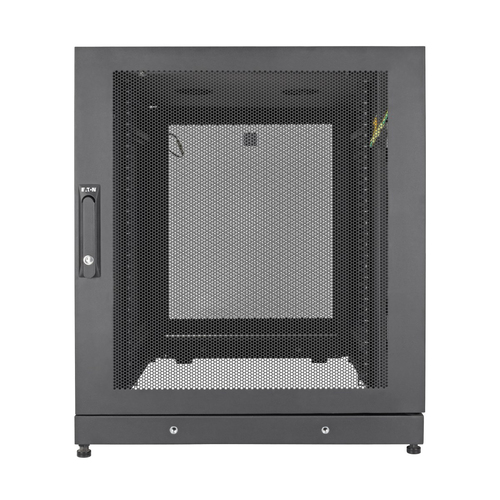

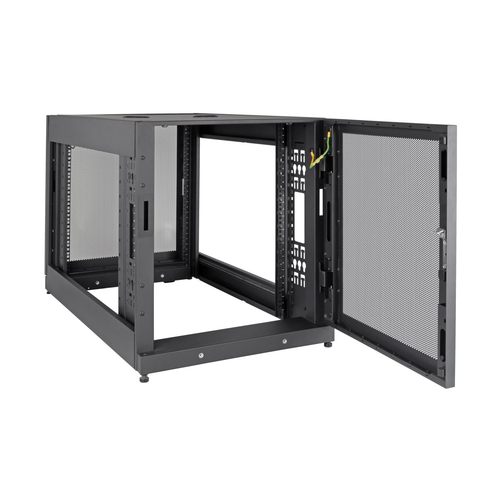

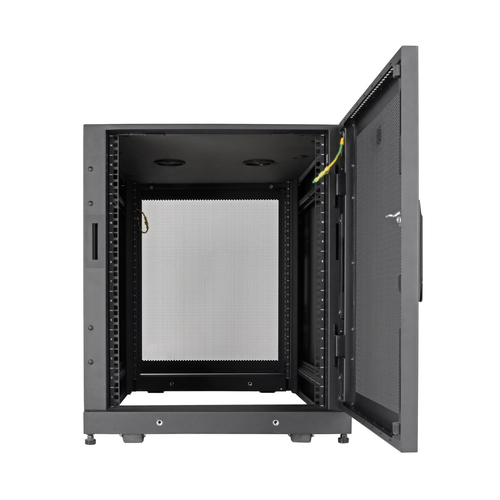

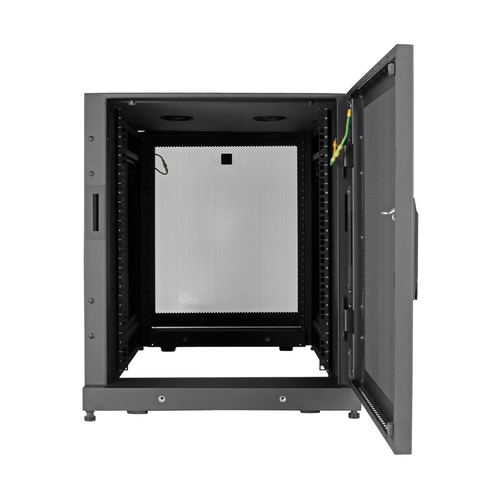

The reversible front and rear doors and removable side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors draw in cool air from outside and remove warm air to keep your equipment cool and functioning at their peak. The top panel also supports the installation of optional case fans (such as SRFANWM).

Easy Enclosure Deployment and Equipment Installation

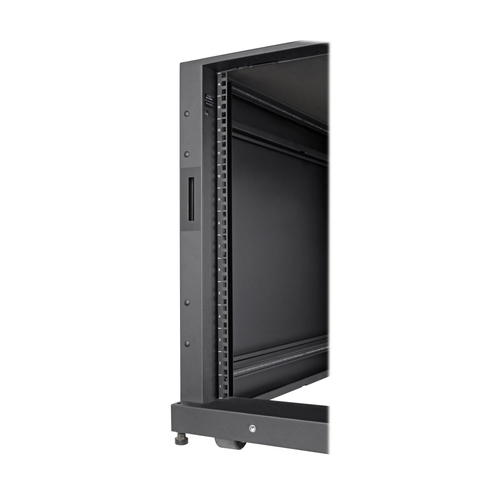

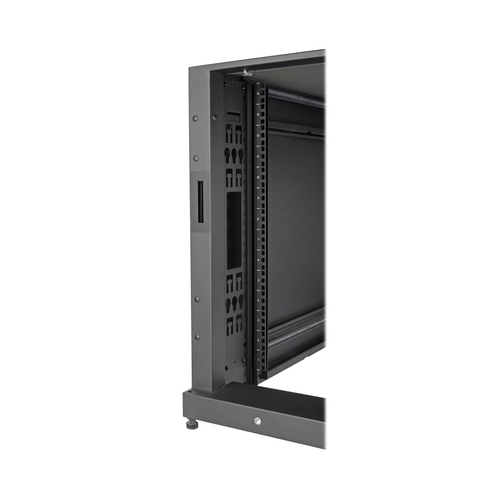

This 14U server rack comes fully assembled for quick and easy deployment. Four metal casters (and installation hardware) are included that let you maneuver the rack cabinet over a level, smooth, stable surface and through a standard doorway into position, where it can be stabilized by adjusting the levelers. Front and rear mounting rails adjust in quarter-inch increments to accommodate equipment up to 37 inches deep. Adjustable vertical cable management rails help keep the back of the rack organized.

Meets Payment Card Industry Standards
The SR14UBDP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.

ON ORDER

SKU: SR14UBDP

Manufacturer: Eaton Eaton

RRP Price €957.81

Specifications

Features

Rack capacity

14U

Type

Freestanding rack

Maximum weight capacity

454 kg

Maximum weight capacity (rolling)

454 kg

Product colour

Black

Material

Steel

Removable back door

Yes

Removable front door

Yes

Key lock

Yes

Castor wheels

Yes

International Protection (IP) code

IP20

Certification

UL/CSA 60950-1 EIA/ECA-310-E

Weight & dimensions

Width

599.9 mm

Depth

1107.9 mm

Height

717 mm

Weight

52.2 kg

Packaging data

Nuts included

Yes

Number of nuts

Screws included

Yes

Number of screws

Manual

Yes

Package width

657.1 mm

Package depth

1167.9 mm

Package height

852.2 mm

Package weight

70.8 kg

Technical details

Compliance certificates

RoHS

Logistics data

Country of origin

China

Harmonized System (HS) code

8517.79.0000

Master (outer) case width

657.1 mm

Master (outer) case length

1167.9 mm

Master (outer) case height

852.2 mm

Master (outer) case gross weight

70.8 kg

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

52.16 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
