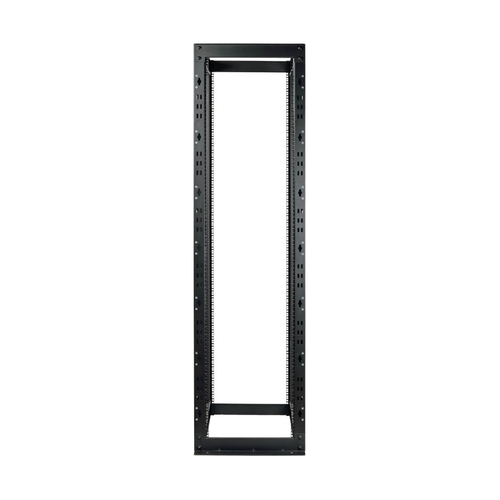

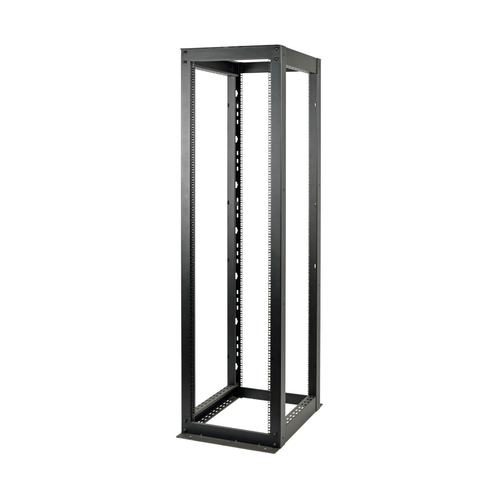

Tripp Lite SR4POST48HD 48U Heavy-Duty 4-Post SmartRack Open Frame Rack - Organize and Secure Network Rack Equipment

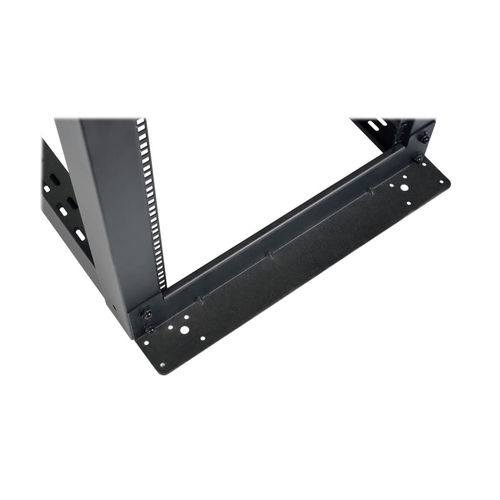

This 48U Heavy-Duty 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST48HD is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 48U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 3,000 pounds (1360.8 kilograms). The SR4POST48HD comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

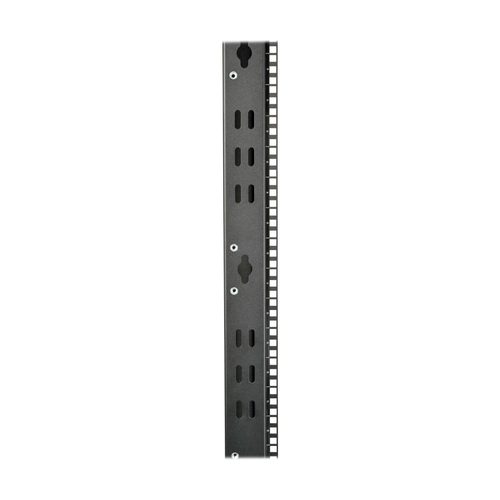

The open design of the SR4POST48HD provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST48HD supports equipment depths up to 35 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

The optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit (sold separately) adds mobility to the SR4POST48HD. The SR4POST48HD also supports optional side panels with the SR48SIDE4PHD, a set of two half-size side panels that add a finished look to end-of-row racks in your data center.

ON ORDER

SKU: SR4POST48HD

Manufacturer: Eaton Eaton

RRP Price €823.31

Specifications

Features

Product colour
Black
Housing material
Steel
Maximum weight capacity
1361 kg
Rack capacity
48U
Certification
EIA-310-D, IEC 60297-3-100
Country of origin
China

Weight & dimensions

Width
609.6 mm
Depth
895.4 mm
Height
2286 mm
Weight
49.9 kg

Packaging data

Quantity per pack
1 pc(s)
Package width
279.4 mm
Package depth
2387.6 mm
Package height
177.8 mm
Package weight
56.2 kg

Technical details

Master (outer) case GTIN (EAN/UPC)
10037332185775
Compliance certificates
RoHS

Logistics data

Products per pallet
1 pc(s)
Master (outer) case width
1054.1 mm
Master (outer) case length
2413 mm
Master (outer) case height
685.8 mm
Master (outer) case gross weight
675 kg
Products per master (outer) case
12 pc(s)
Harmonized System (HS) code
8517.79.0000
