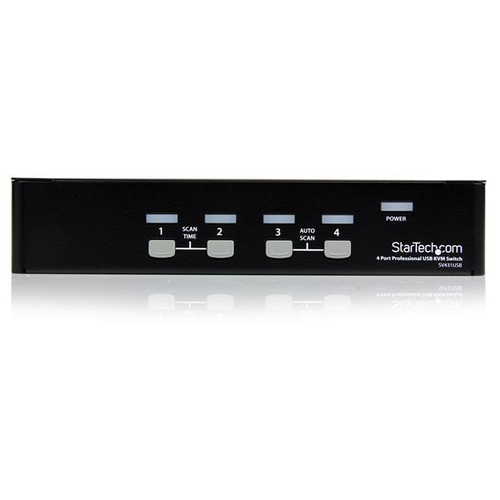

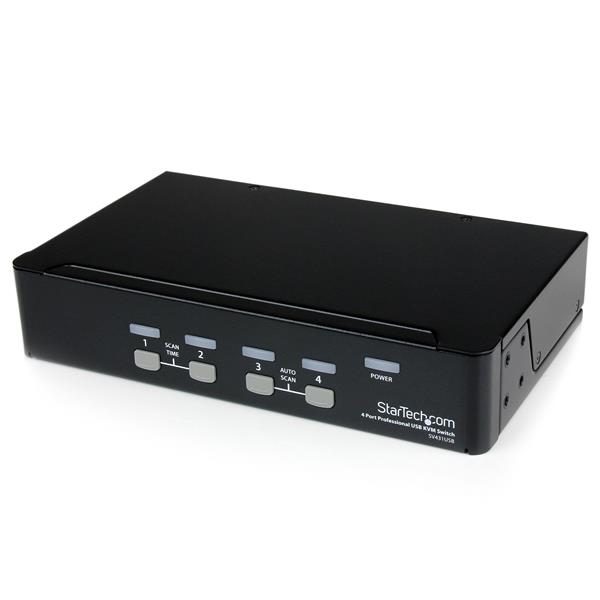

StarTech.com 4 Port Professional VGA USB KVM Switch with Hub

StarTech.com 4 Port Professional VGA USB KVM Switch with Hub

Name: StarTech.com 4 Port Professional VGA USB KVM Switch with Hub
Brand: StarTech.com
SKU: SV431USB
Price: 136.27 EUR
Availability: InStock

Control up to 4 PC or Mac computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

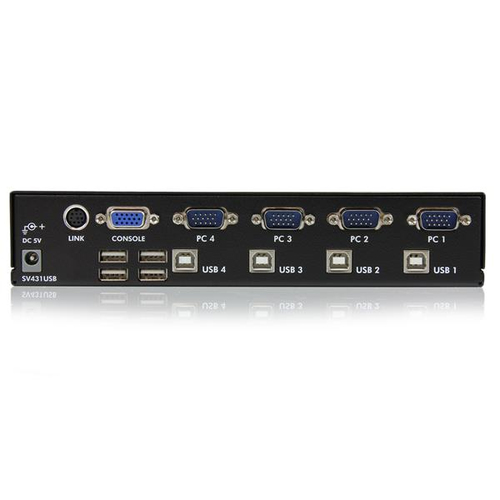

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

Backed by a StarTech.com 3 year warranty and free lifetime technical support.

The StarTech.com Advantage

- Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution

18 IN STOCK

SKU: SV431USB

Manufacturer: StarTech.com

RRP Price €136.27

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

VGA

Console ports

USB A, VGA (D-Sub)

Console USB ports quantity

Audio connections

DC-in jack

Yes

Performance

Maximum resolution

1920 x 1440 pixels

Scan interval

3,8,15,30 s

Daisy chain

Number of users

1 user(s)

Design

Rack mounting

Yes

Rack capacity

Product colour

Black

Housing material

Steel

Maximum cable length

5 m

Hot keys

Mean time between failures (MTBF)

82506 h

Certification

CE, FCC, REACH, TAA, cUR

Display

Built-in display

On Screen Display (OSD)

Power

Input voltage

110-240 V

Input current

0.4 A

Output voltage

5 V

Output current

2 A

Power plug type

Type N

Sustainability

Compliance certificates

RoHS

Weight & dimensions

Width

130 mm

Depth

220 mm

Height

44 mm

Weight

988 g

Packaging data

Package width

196 mm

Package depth

295 mm

Package height

72 mm

Package weight

1.3 kg

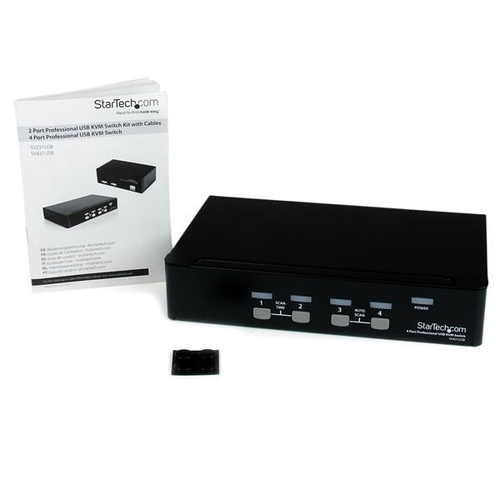

Packaging content

Manual

Yes

Rubber feet

Yes

Other features

IP control

Logistics data

Harmonized System (HS) code

85176200

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.988 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
