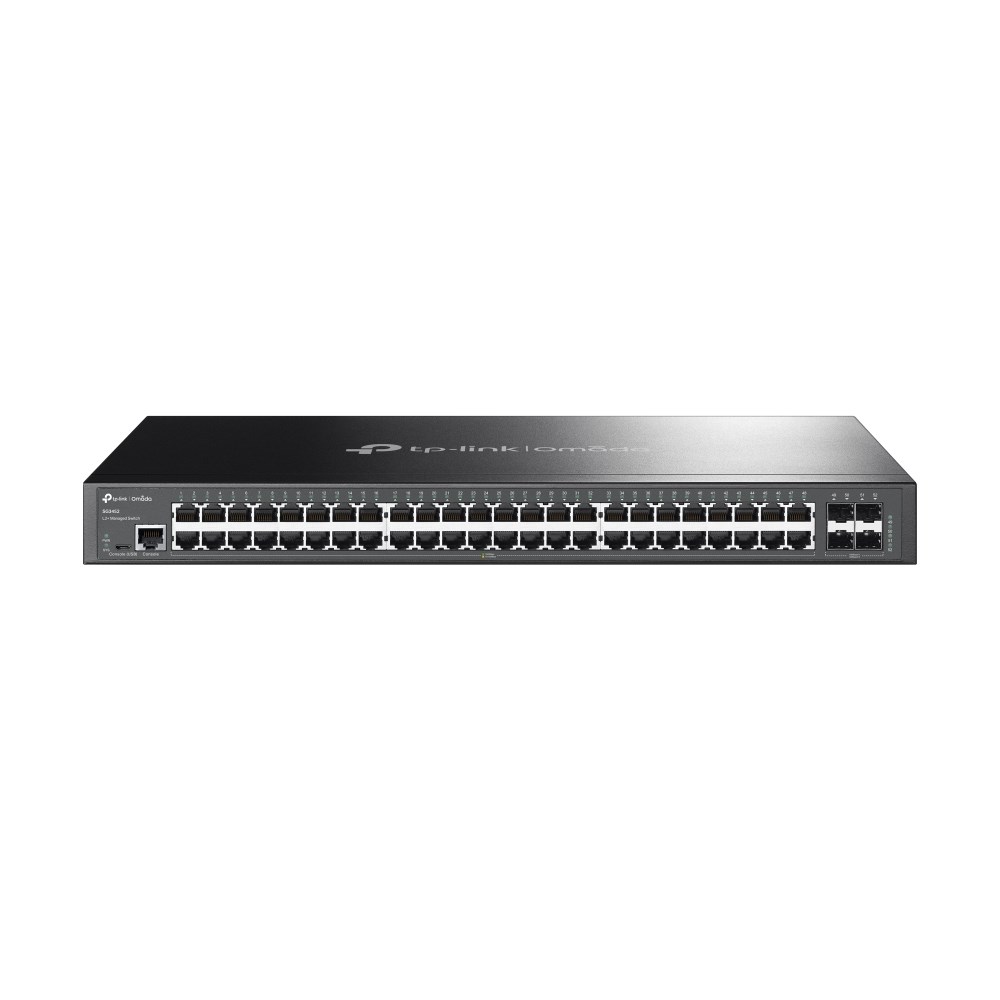

TP-Link JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

Convenient Gigabit Switch
for a Complete Omada Network

JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP

Reliable Gigabit Connections
48× Gigabit RJ45 Ports and
4× Gigabit SFP Ports

Centralized Cloud Management
SDN Solutions Integration for
a Highly Efficient Network

Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More

Abundant Secure Strategies
LAN Area Investment Protection

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features**
QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. Device Link Detection Protocol (DLDP) offers easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

14 IN STOCK

SKU: TL-SG3452

Manufacturer: TP-Link TP-Link

RRP Price €431.87

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
48
SFP module slots quantity
4
Console port
RJ-45/Micro-USB

Network

Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support
No
Port mirroring
Yes
IP routing
Yes
Policy-based routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
IPv4 routes
48
IPv6 routes
48
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4000

Data transmission

Switching capacity
104 Gbit/s
Forwarding rate
77.4 Mpps
MAC address table
16000 entries
Store-and-forward
Yes
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Security

DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
MAC address filtering
Yes
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Authentication
MAC-based authentication, Port-based authentication
Authentication type
AAA, RADIUS, TACACS+

Multicast features

Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Y

Protocols

Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black

Performance

Internal memory
256 MB
Flash memory
32 MB
Fanless
Yes

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
34.86 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
118.94 BTU/h

Weight & dimensions

Width
440 mm
Depth
220 mm
Height
44 mm

Packaging content

Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes

Packaging data

Package width
528 mm
Package depth
336 mm
Package height
100 mm
Package weight
4.26 kg

Certificates

Certification
CE, FCC, RoHS

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
