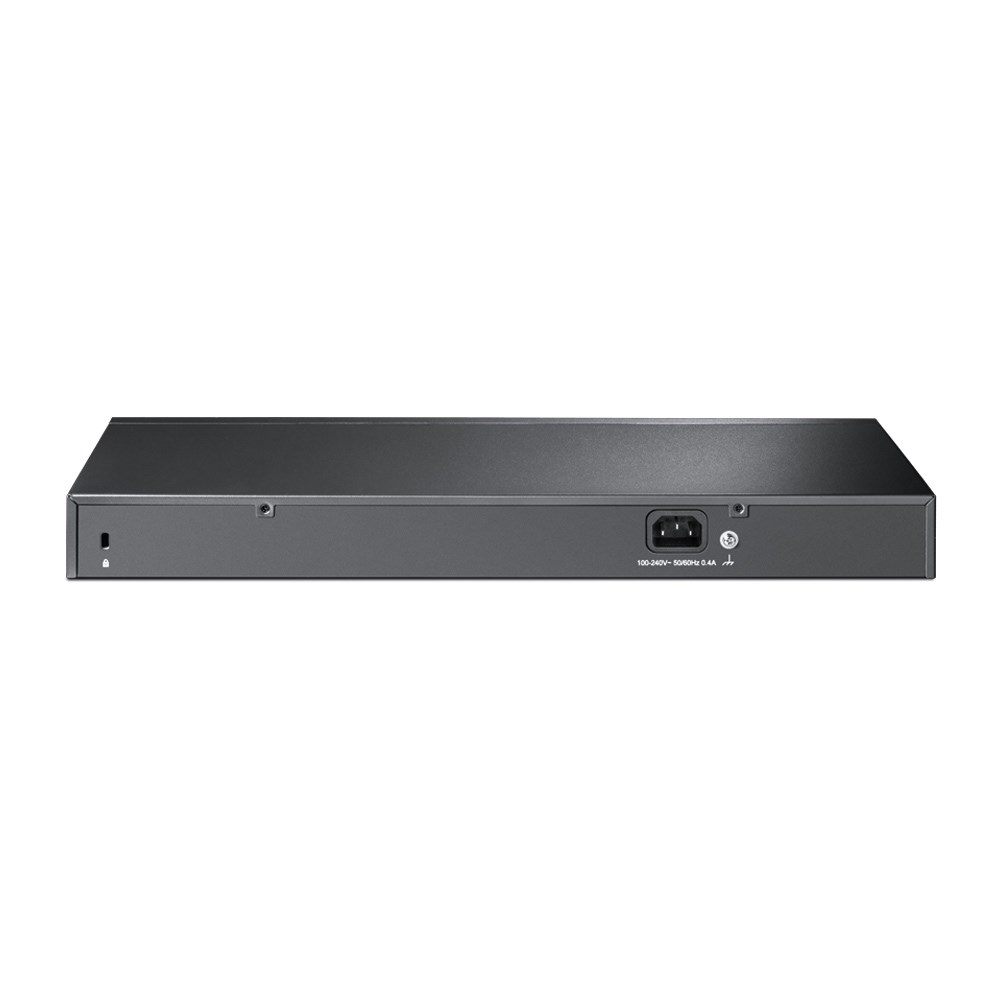

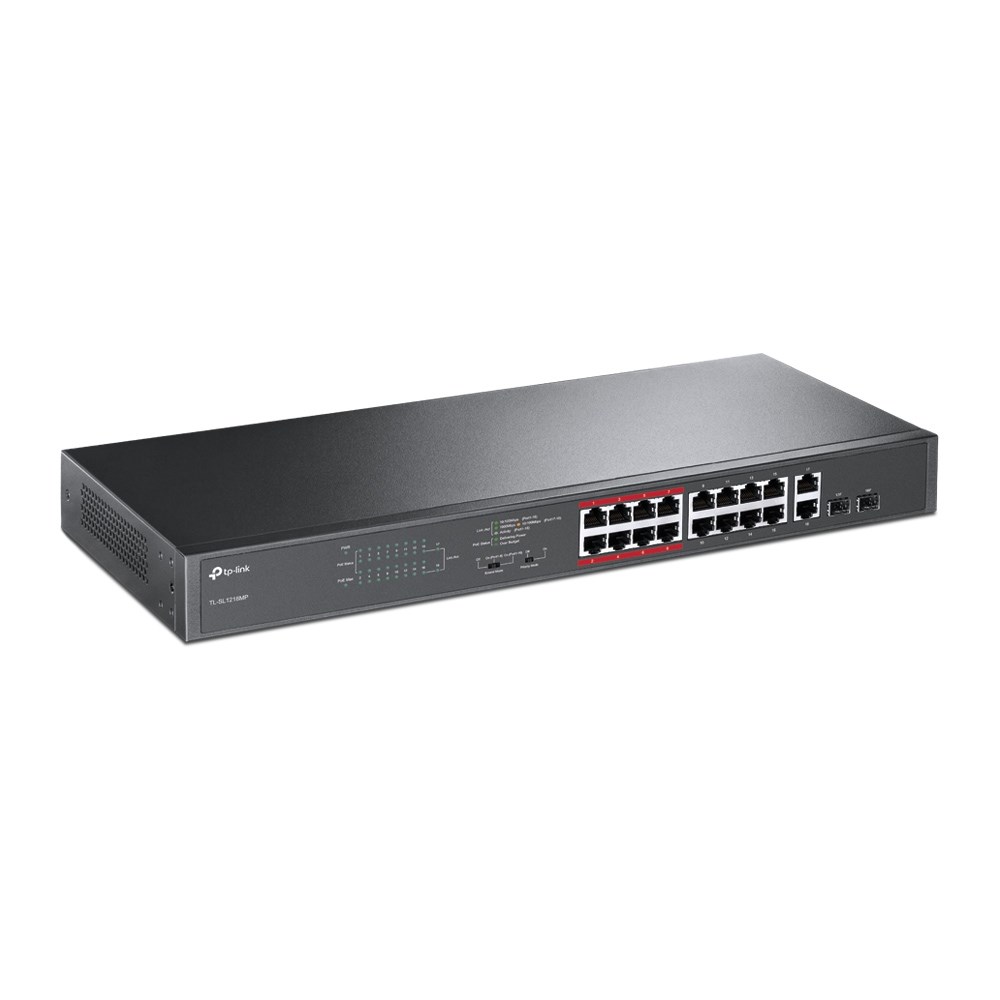

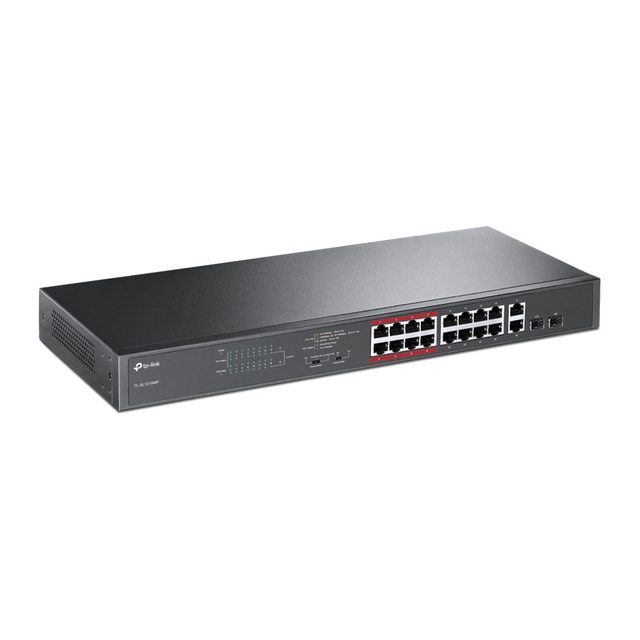

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

ON ORDER

SKU: TL-SL1218MP

Manufacturer: TP-Link TP-Link

RRP Price €0.00

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
16
Gigabit Ethernet (copper) ports quantity
2
Combo SFP ports quantity
2

Network

Networking standards
IEEE 802.3af, IEEE 802.3at
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support
Yes
Auto MDI/MDI-X
Yes

Data transmission

Switching capacity
7.2 Gbit/s
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
4.1 MB

Security

MAC address filtering
Yes

Design

Rack mounting
Yes
Stackable
No
Product colour
Black
LED indicators
LAN, PoE, Status
Number of fans
2 fan(s)

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
18.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
192 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
741.15 BTU/h

Weight & dimensions

Width
440 mm
Depth
180 mm
Height
44 mm

Packaging content

Cables included
LAN (RJ-45)
Quick start guide
Yes
User guide
Yes
Manual
Yes

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
