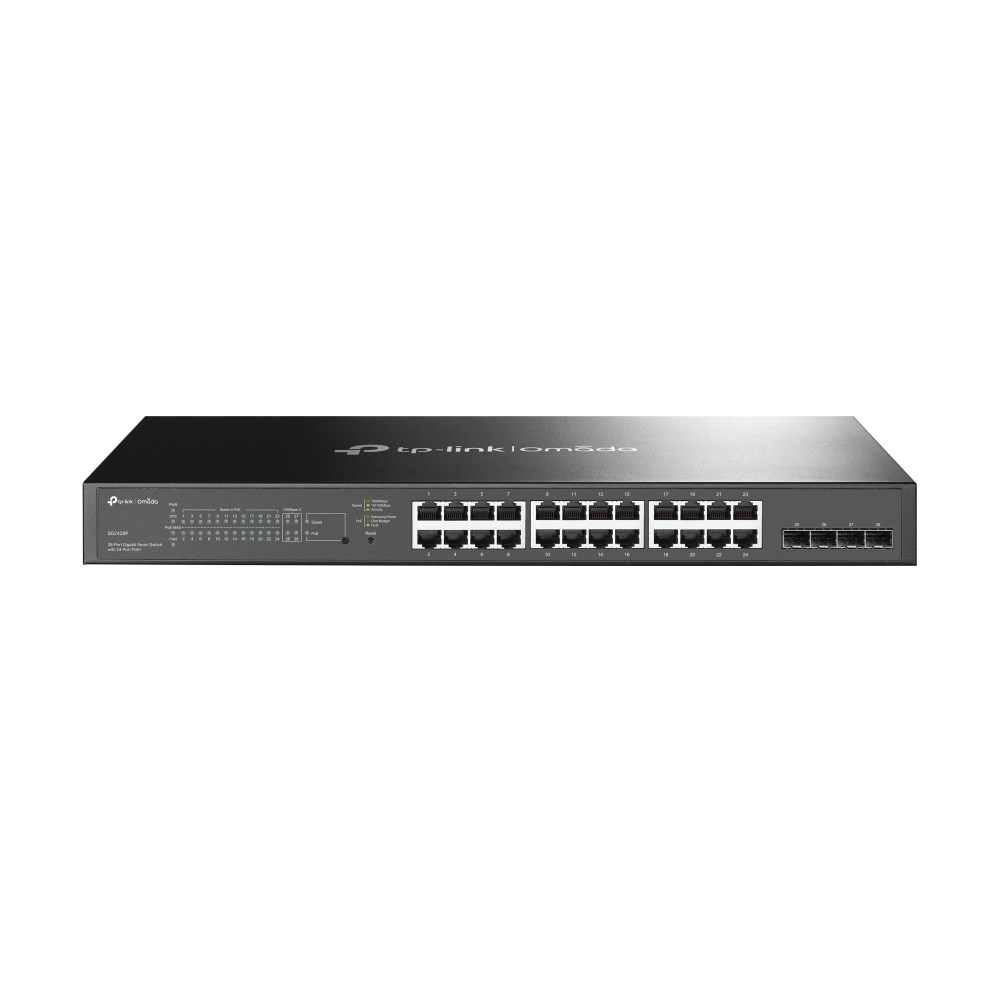

TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+

Name: TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+
Brand: TP-Link
SKU: TL-SG2428P
Price: 367.26 EUR
Availability: InStock

Realize More Possibilities with Omada
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

9 IN STOCK

SKU: TL-SG2428P

Manufacturer: TP-Link TP-Link

RRP Price €367.26

Specifications

Management features

Switch type

Managed

Switch layer

L2/L2+

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

System event log

Yes

MIB support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP module slots quantity

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Copper ethernet cabling technology

10BASE-T, 1000BASE-T

Cable types supported

Cat3, Cat4, Cat5, Cat5e

Port mirroring

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Rate limiting

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Virtual LAN features

MAC address-based VLAN, Protocol-based VLAN, Voice VLAN

Number of VLANs

4000

Optical fiber

Fiber ethernet cabling technology

1000BASE-X

Data transmission

Switching capacity

56 Gbit/s

Forwarding rate

41.7 Mpps

MAC address table

8000 entries

Number of queues

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

4.1 MB

Security

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS

SSH/SSL support

Yes

BPDU filtering/protection

Yes

IP-MAC-Port binding

Yes

Authentication type

RADIUS

Queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support

Yes

Protocols

Management protocols

SNMPv1/v2c/v3, SNTP

Design

Rack mounting

Yes

Form factor

Product colour

Black

Number of fans

2 fan(s)

Performance

Firmware upgradeable

Yes

Power

Power source

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

306.9 W

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

250 W

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

1047.3 BTU/h

Weight & dimensions

Width

440 mm

Depth

220 mm

Height

44 mm

Packaging content

Cables included

User guide

Yes

Rack mount kit

Yes

Packaging data

Package width

336 mm

Package depth

528 mm

Package height

100 mm

Package weight

3.98 kg

Certificates

Certification

CE, FCC, RoHS

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

TP-Link

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

3.98 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

NETGEAR Insight Cloud Managed WiFi 6 AX3600 Dual Band Access Point (WAX620) 3600 Mbit/s White Power over Ethernet (PoE) Switches

Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business.High-Performance Business WiFiFaster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz bandIdeal for High Density EnvironmentsUltimate WiFi performance for schools, hotels, restaurants, and conference centers.Greater Network CapacityEnjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.Seamless Wireless MeshWire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.Multi-Gigabit SpeedIncludes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiringEasy SetupSet up, configure, and manage with NETGEAR InsightFlexible MountingEasy to securely install on the wall of a suspended ceiling with the hardware includedBusiness-Level SecurityWPA3 for the highest level of WiFi connection security8 Wireless Networks (SSIDs)Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and moreSeparate VLANsKeep admin, employee, visitor, HR, Finance department networks safely separated from each other

€261.84

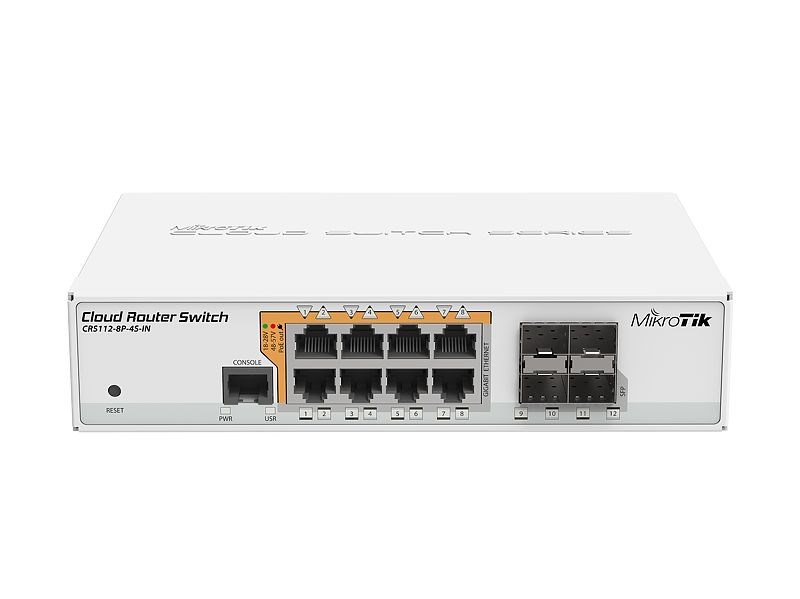

Mikrotik CRS112-8P-4S-IN network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White Switches
